• Poultry & livestock: chickens, ducks, geese, pigs, cattle, sheep, rabbits
• Aquaculture: fish, shrimp and other farmed species
• Family farms, small ranches, rural breeders, small feed workshops
• Raw materials: corn, wheat, soybean, sorghum, straw, rice husk, grass meal, peanut shell, soybean cake, meal
• Crush-and-pelletize in one go-no manual transfer or extra conveyor needed

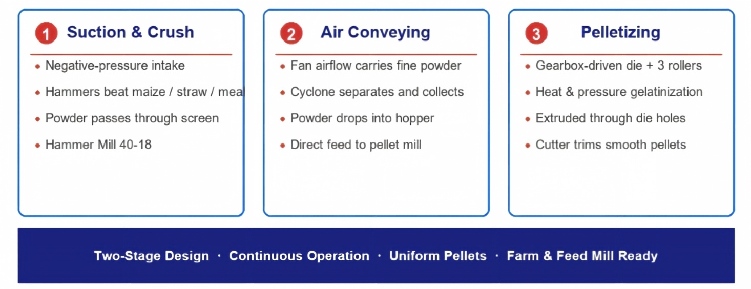

Two-step crushing-pelletizing: the 40-18 hammer mill draws maize, straw and meal into the crushing chamber by negative pressure, where high-speed rotating hammers beat and shear the material into fine powder against the screen; the pulverized powder is carried by airflow through the cyclone straight into the 9KLP-230 pellet mill hopper. Inside the mill, the motor drives the die plate through a gearbox; three rollers press the powder against the rotating die, gelatinizing it under heat and pressure, then extruding it through the die holes. A cutter trims the pellets to length and the discharge tray throws them out as smooth, firm cylindrical feed pellets.

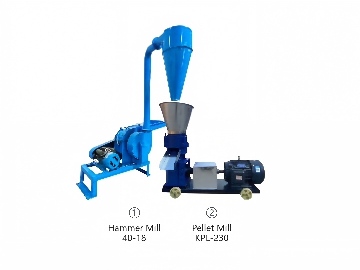

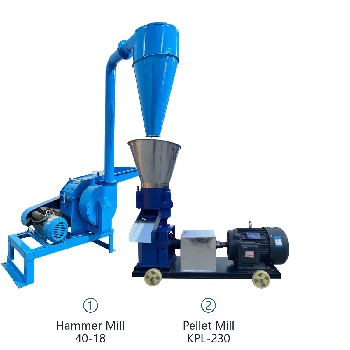

This line integrates a 40-18 hammer mill and a 9KLP-230 flat-die pellet mill in one compact two-step unit. Raw material is crushed dust-free by the self-feeding hammer mill, then the powder is conveyed by airflow directly into the pellet mill hopper-skipping the traditional mixer and elevator, so the layout is shorter, smaller and easy to move. The 9KLP-230 forms powder into uniform cylindrical pellets in one pass with three abrasion-resistant rollers and a cast-iron die. Simple to run and easy to maintain, it suits rural households and small farms, and can be built as electric or diesel version on request.

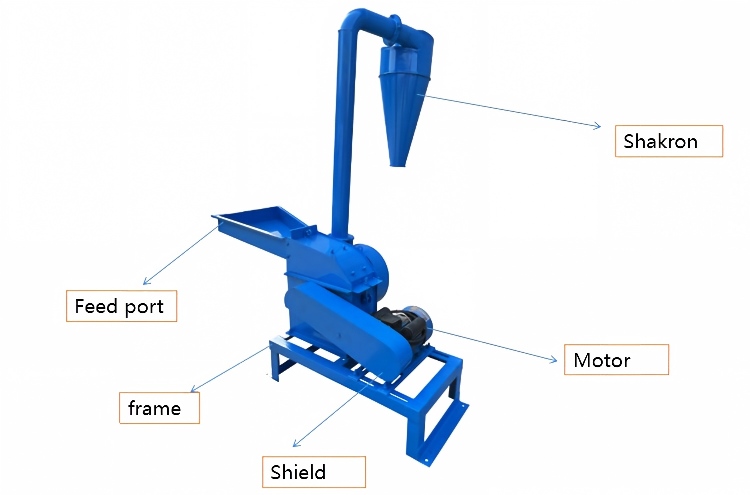

• 40-18 hammer mill: thick steel plate painted body, bottom movable wheels for easy transfer; high-speed hammers and changeable screen (2/4 mm) control fineness; cyclone collector for dust-free operation; diesel/electric/gasoline power optional
• 9KLP-230 pellet mill: alloy steel hardened rollers, heat- and wear-resistant; 3-roller design for high output; cast-iron die, holes 2.5-8 mm (4/6 mm common); enlarged hopper, stainless discharge tray with adjustable cutter for pellet length
• Transmission: rear-axle gearbox + universal joint, stable running, flexible angle
• Packing: exported wooden case, shock-proof and sea/long-haul safe

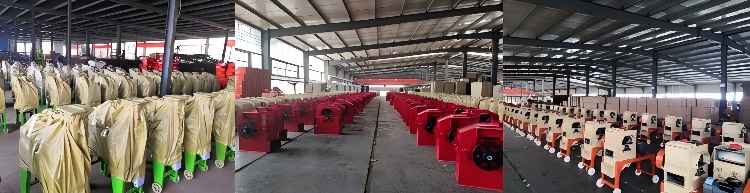

Zhengzhou Weiwei Machinery Co., Ltd. is located in Gaocun Industrial Zone, Xingyang, Zhengzhou, Henan, founded in 1980. With a 10,000+ m² plant and 40,000-50,000 sets annual output, the company integrates R&D, design, manufacturing and sales. Certified with ISO9001, CE, SGS and TUV and holding about 19 patents, its dual brands WEIWEI / XINGYIDA serve 40+ countries across Europe, America, Southeast Asia, the Middle East and Africa, with 30+ years in agricultural machinery.
