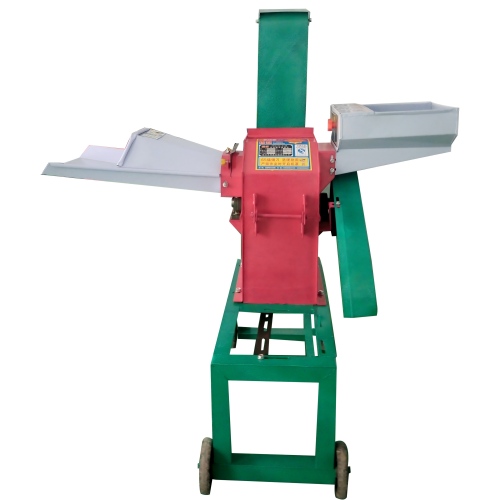

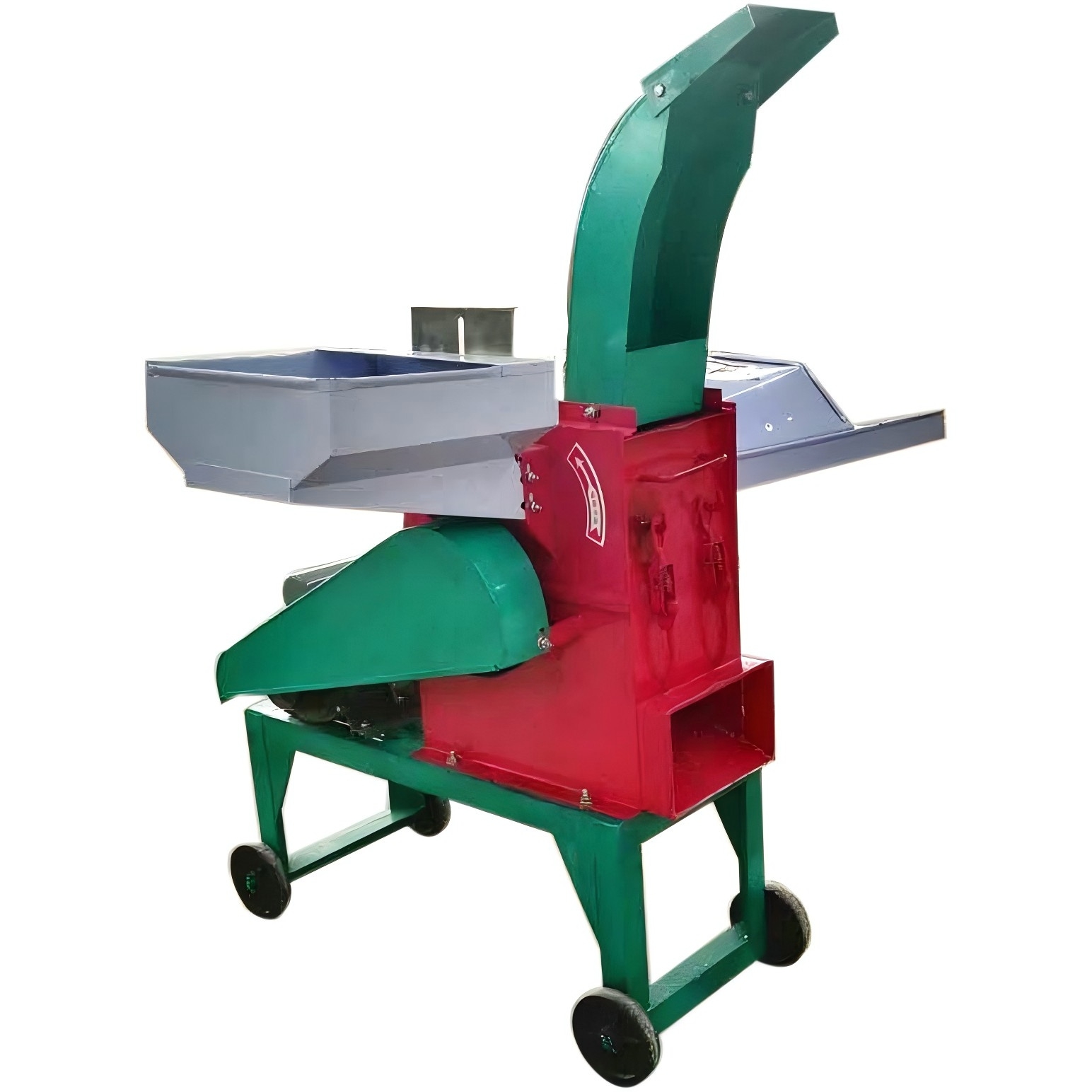

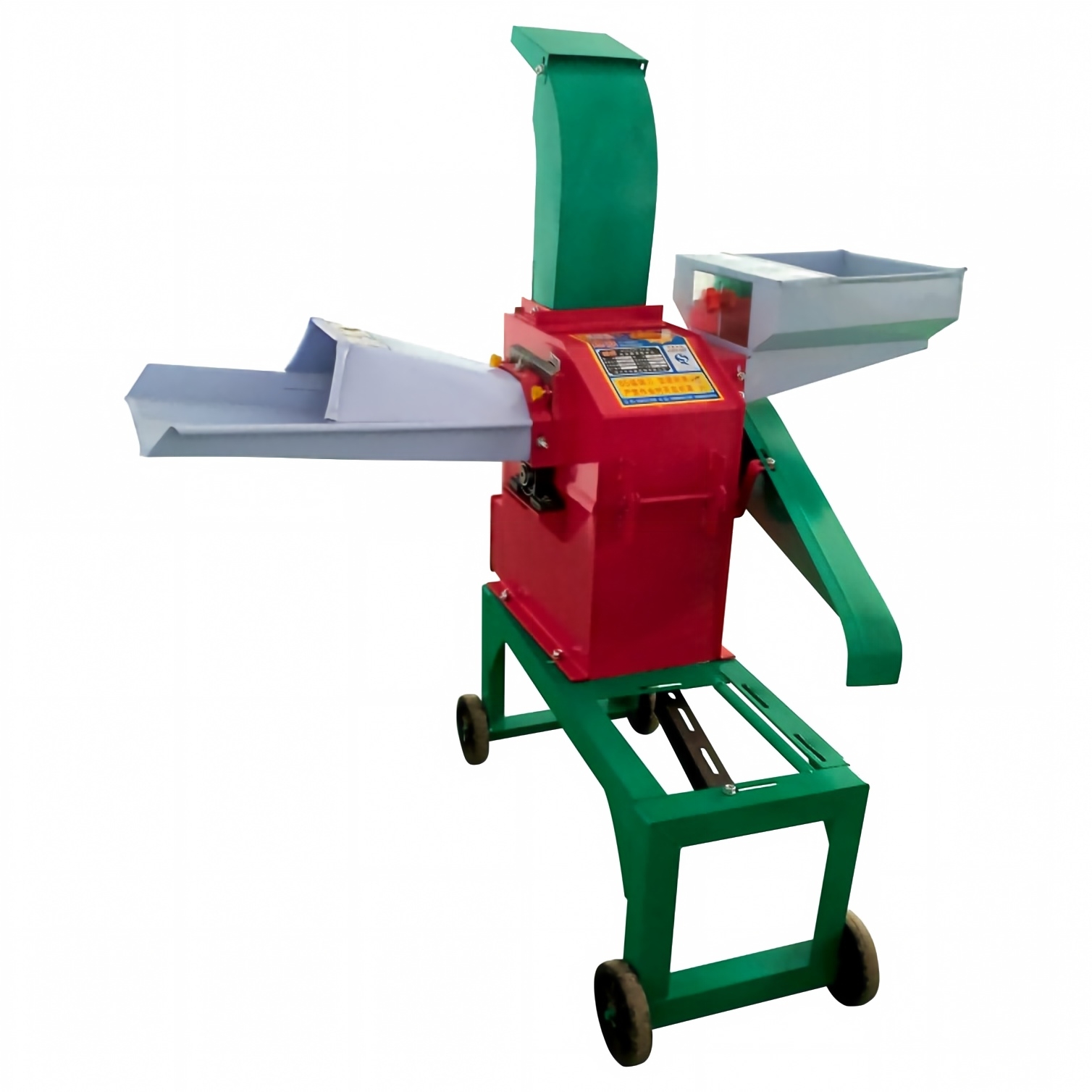

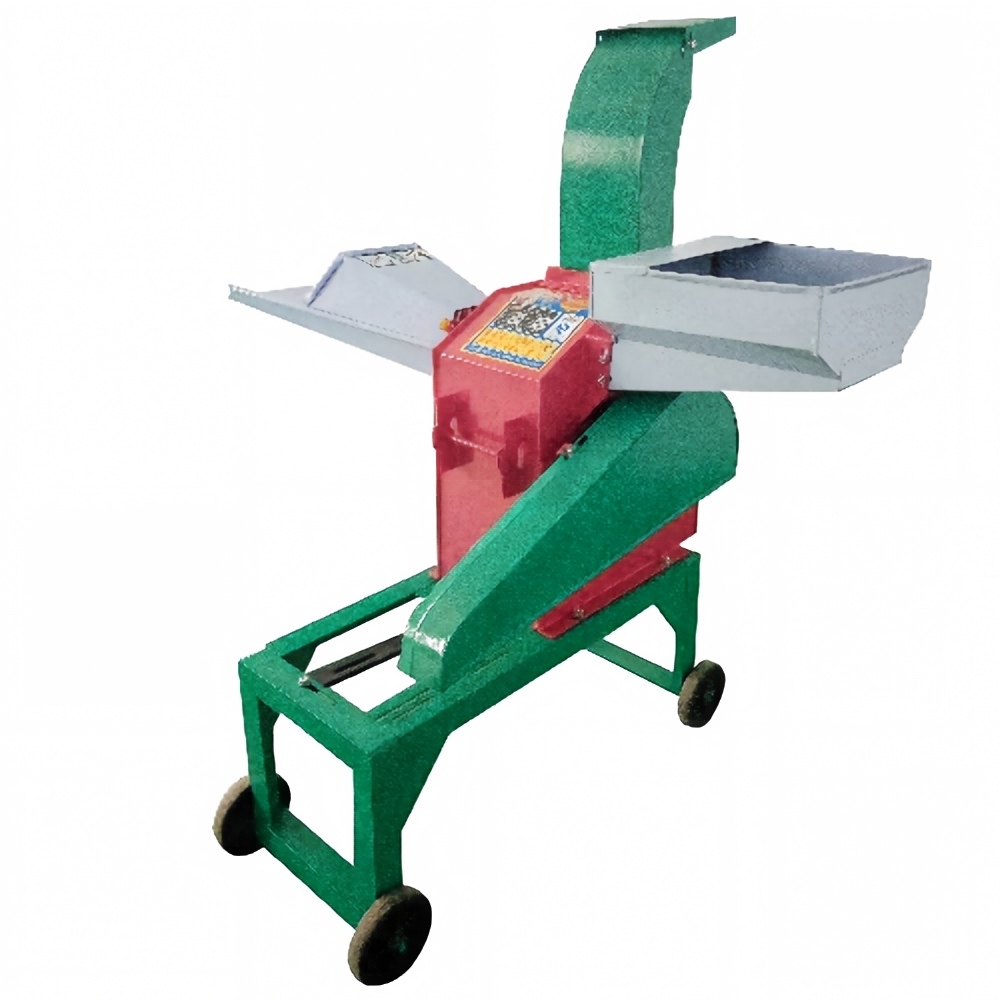

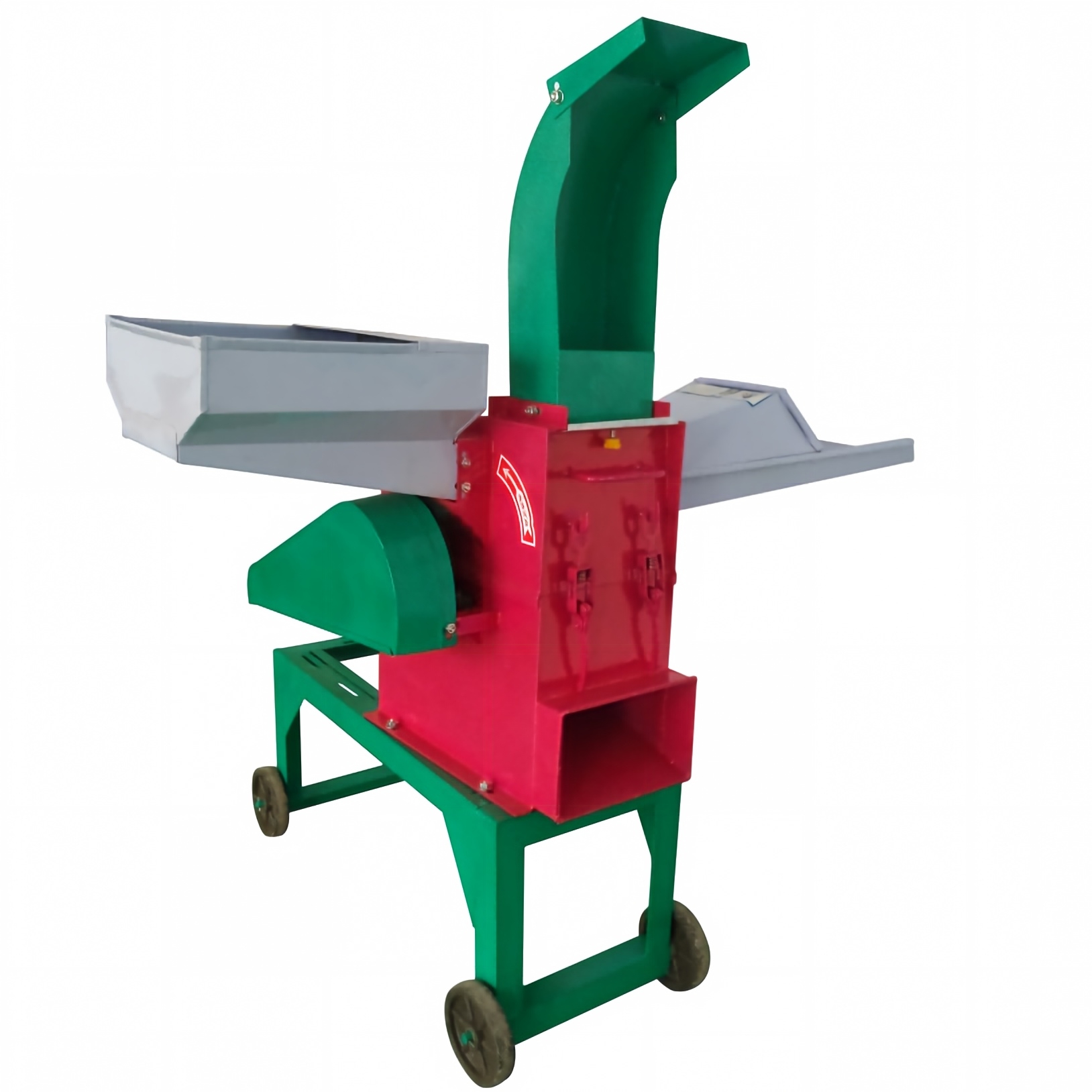

9ZF‑400‑24C Mobile Dual‑Purpose Hay Chopper and Grinder for Straw Processing
The 9ZF-400-24C is a dual-purpose dry and wet hay chopper, shredder and grinder. It is equipped with a high-speed rotor, replaceable screens and a high-discharge structure. The straw is cut and ground by the hammer blades and knife blades. The output is 400-600 kg/h. It has mobile casters and is compatible with motor or gasoline engine power.
parameter
| Project |
9ZF-400-24C |
| Supporting Power（kw） |
3 |
| Diesel Engine Horsepower（HP） |
8HP |
| Gasoline Engine Horsepower（HP） |
7.5HP |
| Motor Speed（r/min） |
2800 |
| Main Shaft Speed（r/min） |
3100 |
| Engine Weight（kg） |
70 |
| Output（kg/h） |
400-600 |
| External Dimensions（mm） |
850*1350*1440 |
| Carton Packaging Dimensions（cm） |
82*42*52 |
| Wooden Box Packaging Dimensions（cm） |
110*55*105 |
principle

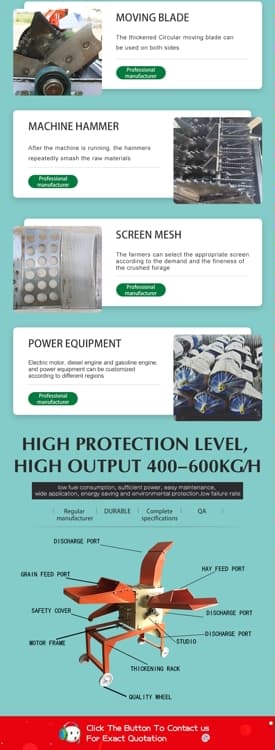

Main Structure and Chopping‑Discharging Mechanism of the Hay Cutter

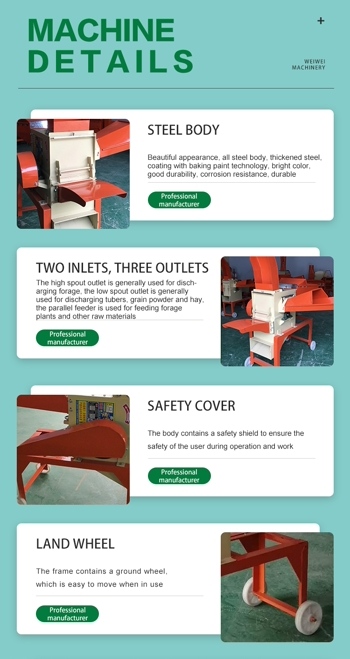

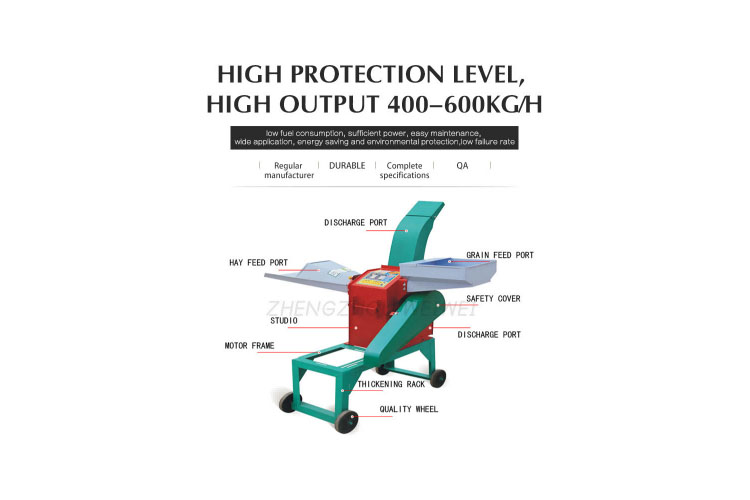

The machine consists of safety cover,2 feeding hoppers,2 outlets,working room, rack, ground wheel and so on.
The workroom consists of main wheel, bearing, triangle blades, circular arc/serrated moving blade, hammer，vane plate and so on.
This hay cutter operates by using power to drive the rotor to rotate at high speed. The hay enters the working chamber through the feed hopper and is then cut, struck, and kneaded by the blades and hammer plates. When the material reaches the specified particle size, it is subjected to centrifugal force and the airflow inside the chamber through the screen, and then the high-pressure discharged material is achieved through the built-in fan blades, completing the hay chopping, shredding and crushing process.
Detail

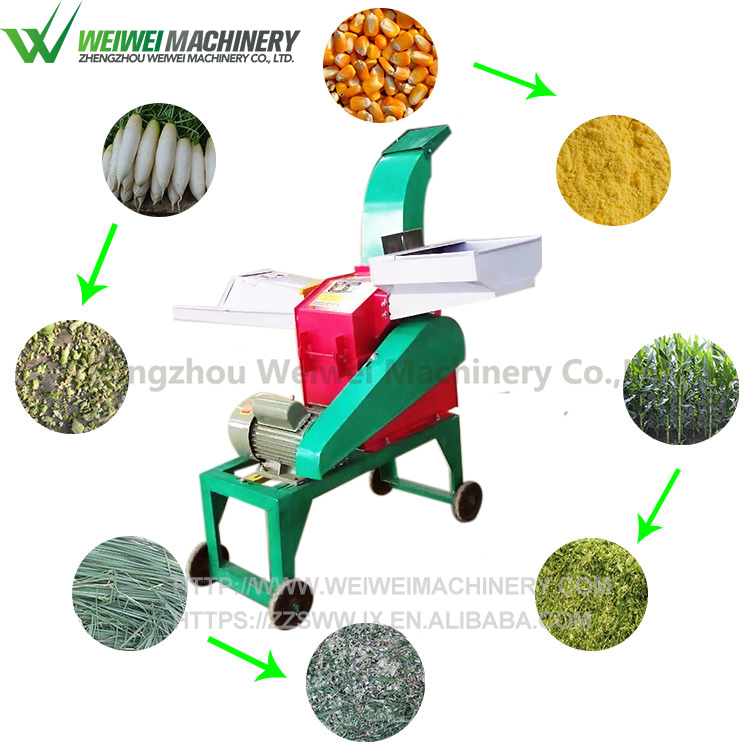

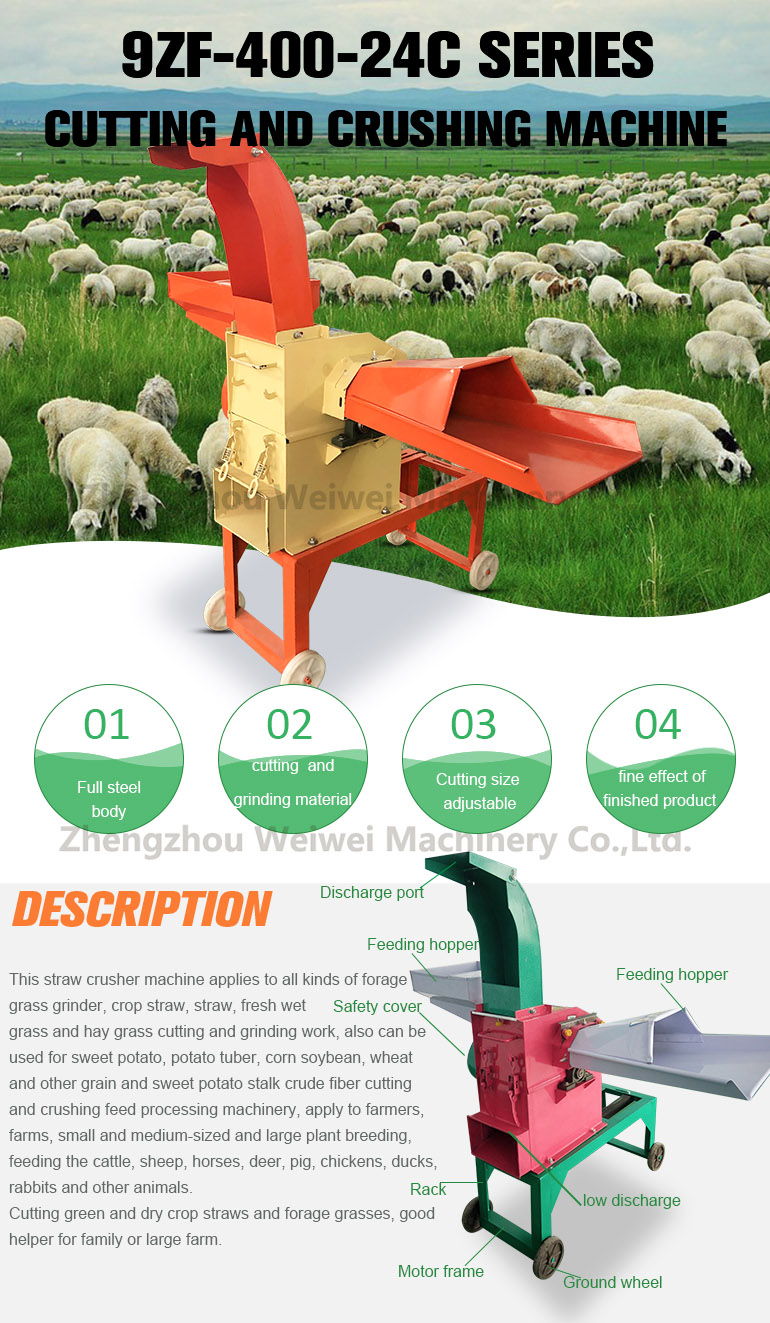

This machine is mainly used for cutting corn stalks, bean stalks, cotton stalks, grass and other crop straws, as well as kneading young shoots, tea stalks and grape branches. It can also grind corn, soybeans and other grains. The finished products of this machine are finer than those of other feed pulverizers, and can be made into feed suitable for cattle, sheep, horses, deer and rabbits. It can be used by both farms and households. This equipment can also be used as the front-end processing equipment for producing feed pellets.
Product Details and Packaging

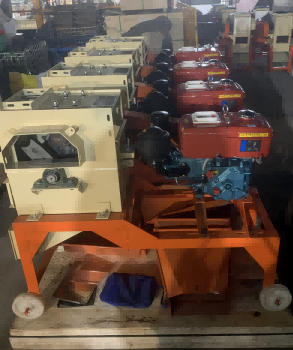

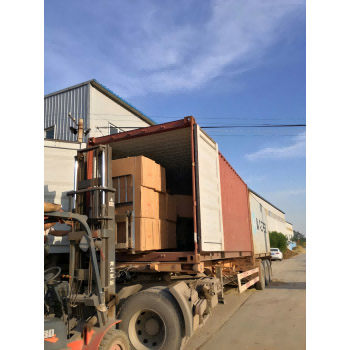

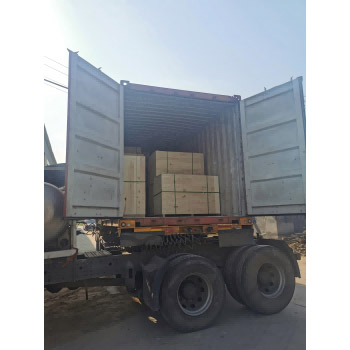

There are two types of packaging options available: wooden boxes and cardboard boxes. Customized packaging can also be provided according to customer requirements.

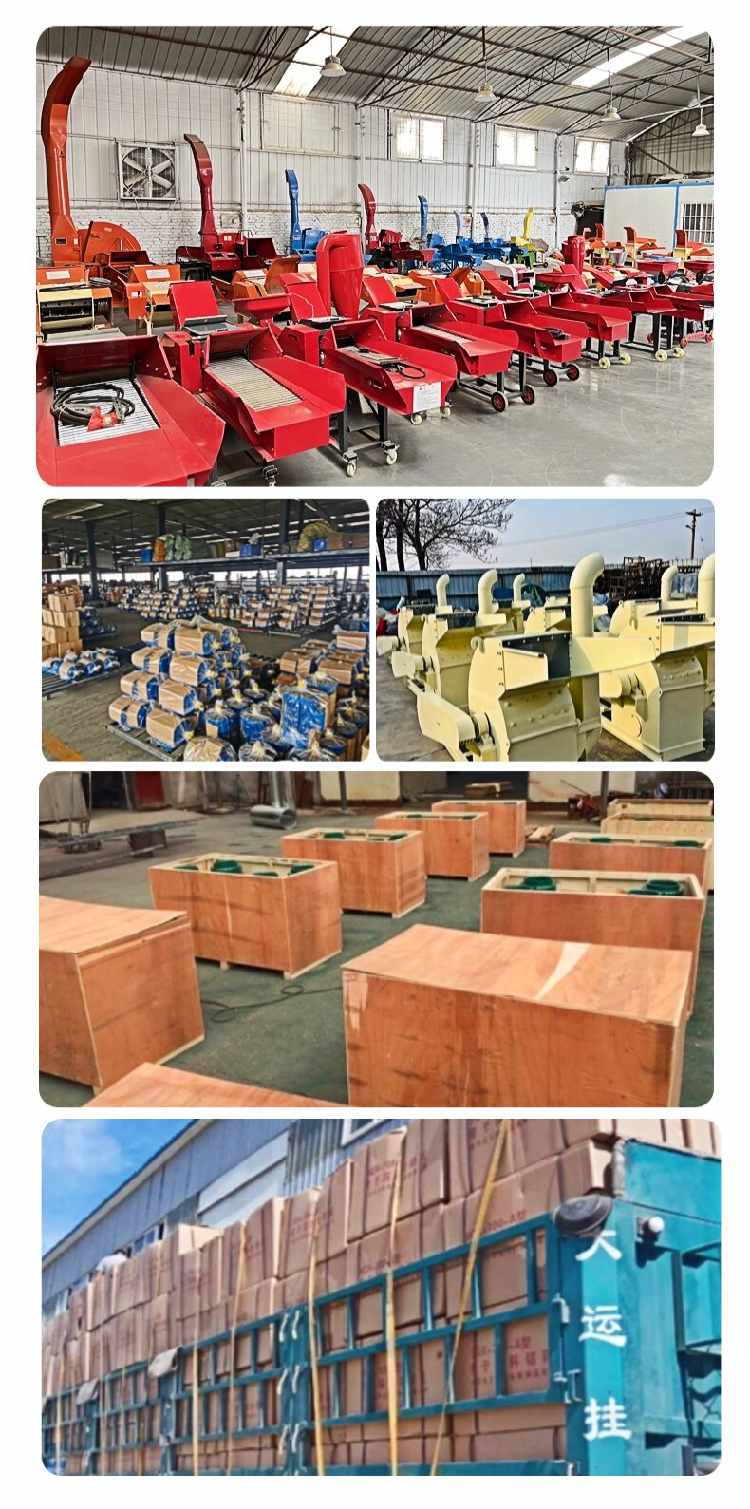

Factory and more information
Weiwei Machinery is a manufacturer with 30 years of agricultural machinery production experience, mainly producing agricultural machinery, garden machinery, and feed machinery，The company has national patent certificates, CE certificates, and ISO certificates.
