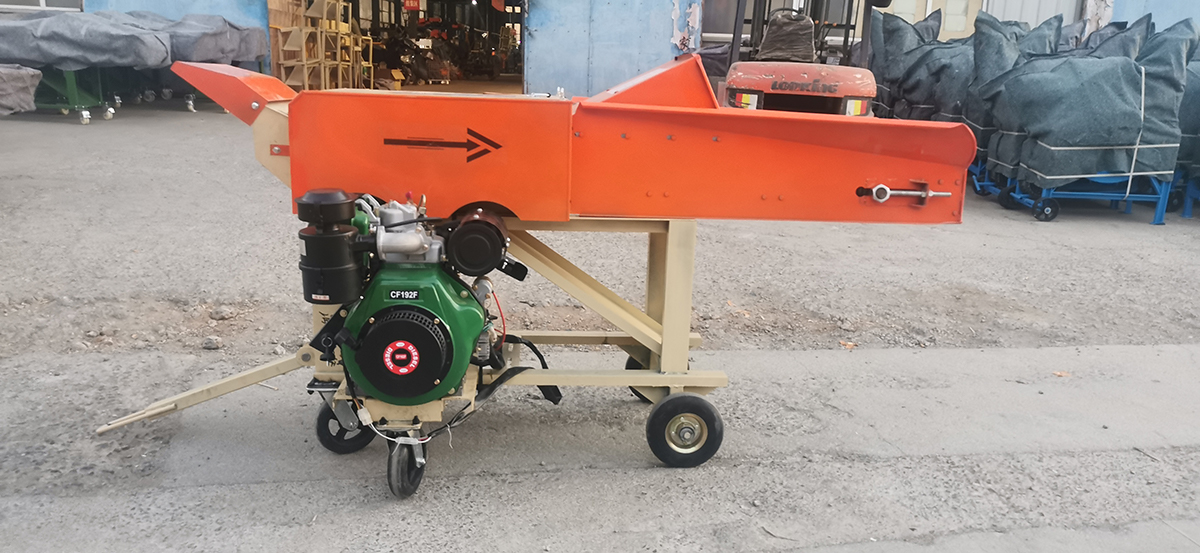

weiwei9zp-3.8t feed grinder straw corn silage hay cutter grass feed cutter

Categories：chaff cutter

Capacity：1-4t/h

Power：3-4kw

Engine：Motor Diesel Gasoline

Applications：paper mills, forestry, pets, agriculture

 Tel：0086-371-63283021

 Email：admin@weiweimachinery.com

 WhatsApp：+86 198 3869 1608

This product is widely used for cutting green (dry) corn stalks, straw, wheat straw, cotton stalks and other crop stalks and various pastures. The processed materials are suitable for breeding cattle, sheep, deer, horses, etc., and can also be used for biomass power generation, papermaking, ethanol extraction, etc.This product is widely used for cutting green (dry) corn stalks, straw, wheat straw, cotton stalks and other crop stalks and various pastures. The processed materials are suitable for breeding cattle, sheep, deer, horses, etc., and can also be used for biomass power generation, papermaking, ethanol extraction, etc.

parameter

Model	9ZR-3.8T
Name	Weiwei 9ZR Series grass cutting and crushing machine
Voltage	Customized（Tell us the hertz of your country's voltage ）
Power	3-4KW/6-8HP
Capacity	1000-3000kg/h
Weight	116kg

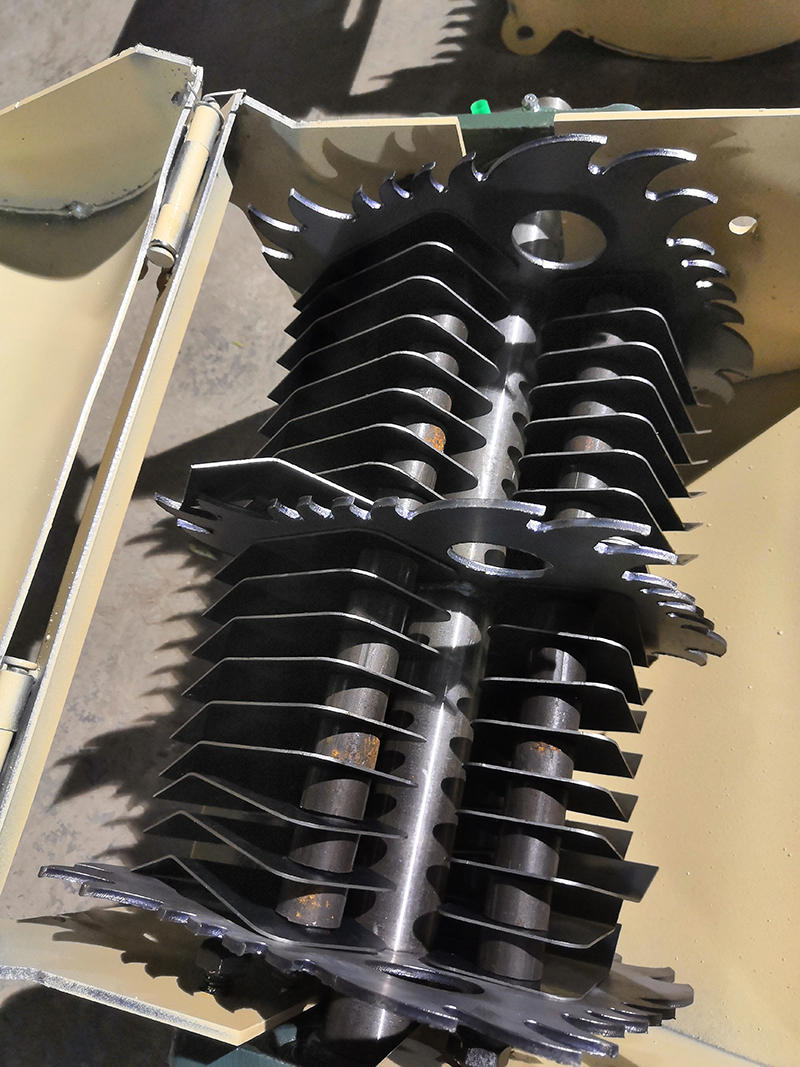

Blade quantity	4 pcs moving blades ，48 pcs hammers
Main shaft speed	1380r/min（moving blades） / 3600r/min（hammers）
Motor speed	2800r/min
Machine size（LWH)mm	1770530880mm
Power	Electric motor/gasoline engine/diesel engine

principle

The motor is used as the supporting power. The power is transmitted to the main shaft, and the gear at the other end of the main shaft transmits the speed-regulated power to the grass press through the gear box, V-belt, etc. When the straw to be processed is automatically transmitted, the upper and lower grass presses press the speed and send it to the cutting mechanism. , cut short by the high-speed rotating blade, throw into the kneading and crushing chamber, and finally throw the material out of the machine

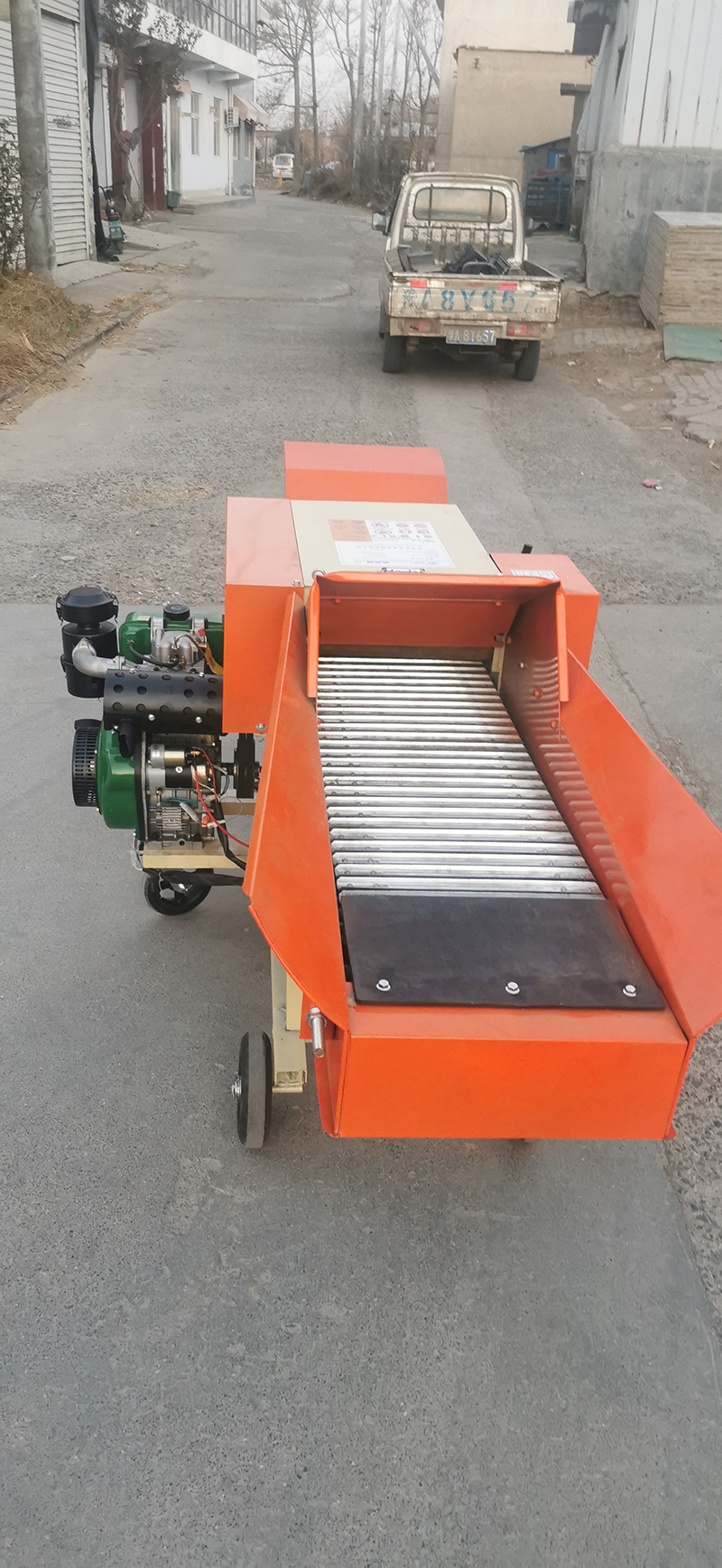

Detail

The guillotine pulverizer is used to pulverize corn stalk, straw, wheat straw, sweet potato stalk, peanut soil, reed grass, sorghum stalk and other crop straws into powder. The size of the finished material is controlled according to the size of the sieve inside. Corn stalks, sorghum stalks, peanut seedlings, sweet potato seedlings, various pastures, branches, etc., and green and fresh corn stalks, bean stalks, wheat stalks and other crops and raw weeds can be rubbed into filamentous feed for cattle and sheep. After the straw is cut and pulverized, the contact area between the microorganisms and the grass in the rumen of the ruminant is increased, which is conducive to degradation and fermentation, thereby improving the utilization rate of straw digestion. At the same time, the straw and forage are crushed and rubbed into filaments, which improves the palatability and utilization rate of the feed. The screen can be replaced for adjustment, which is conve

nient and easy to operate, efficient and practical. It is the choice of rural farmers and farms.

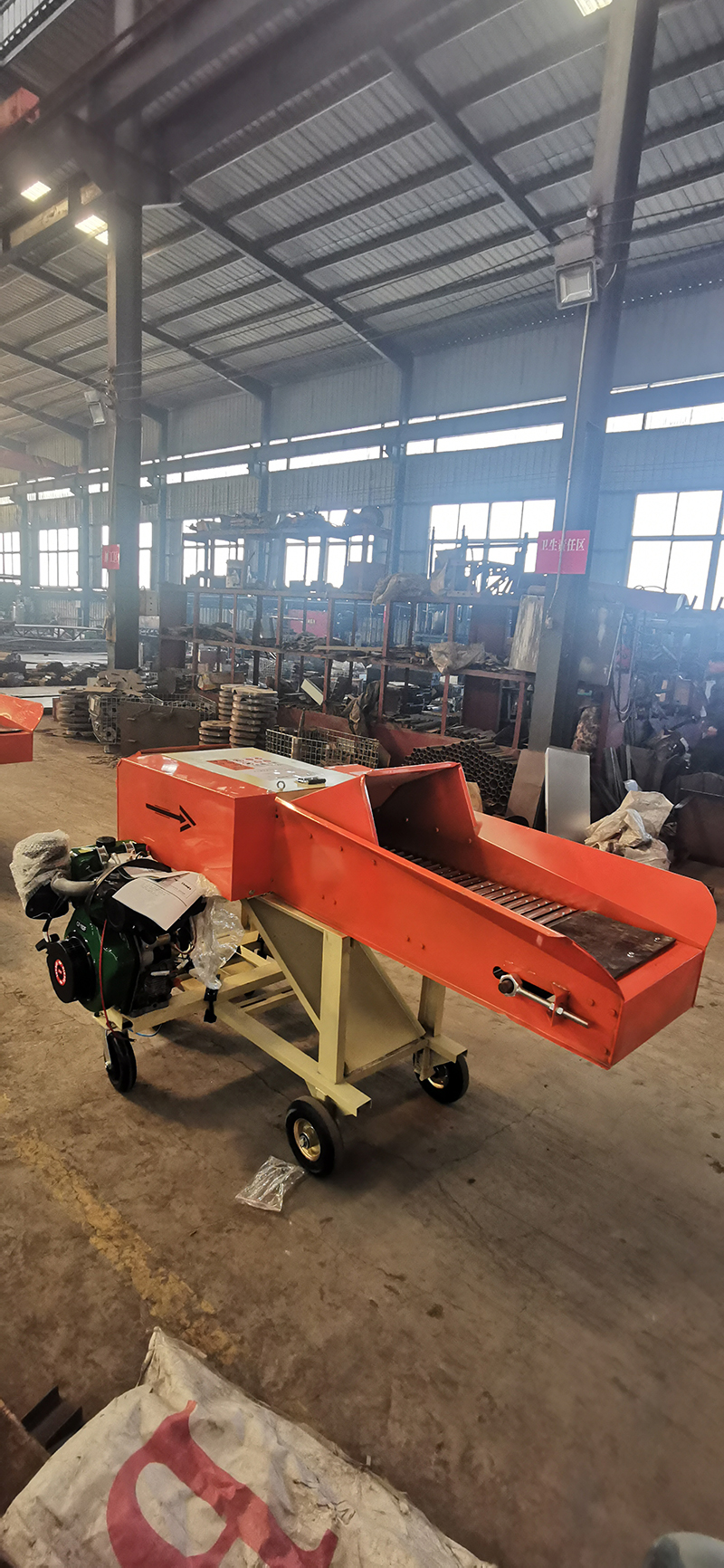

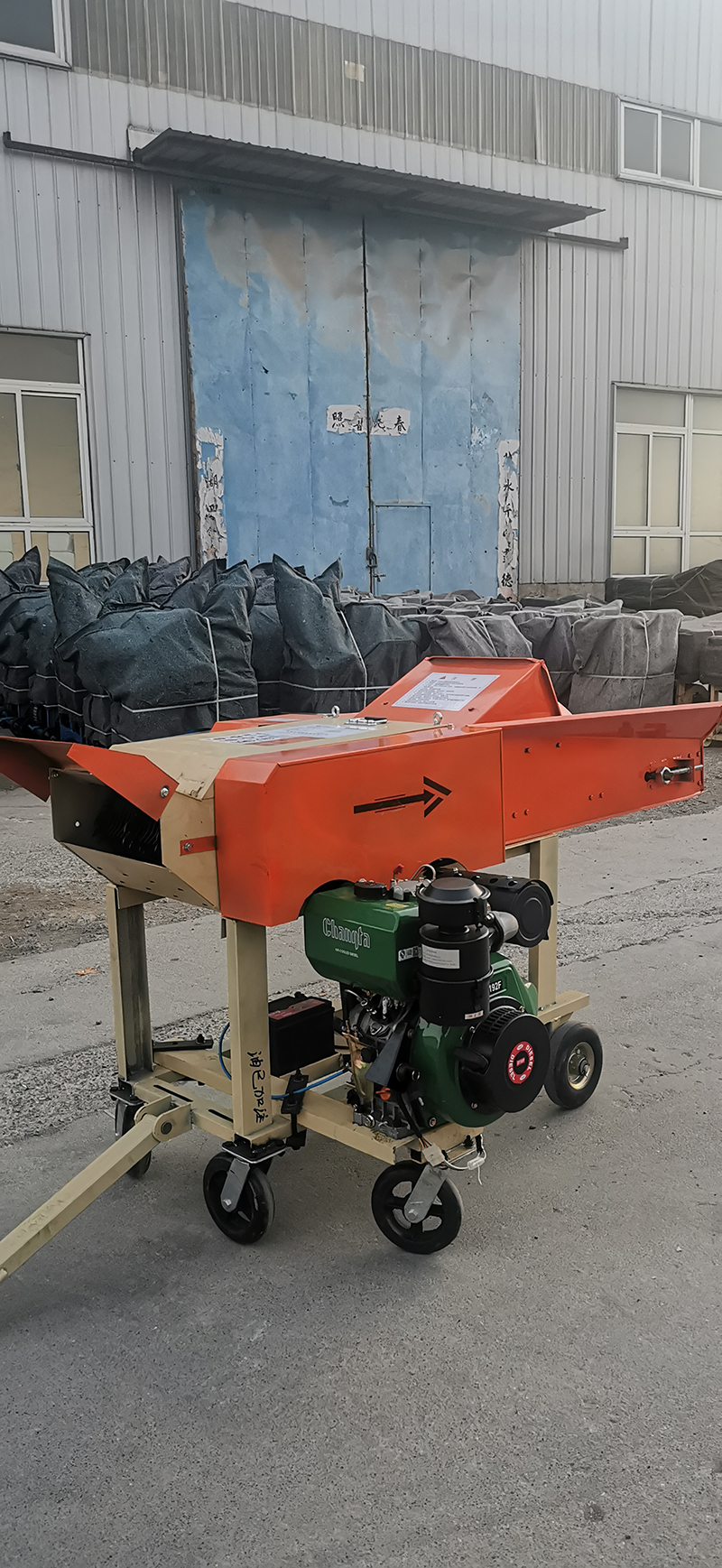

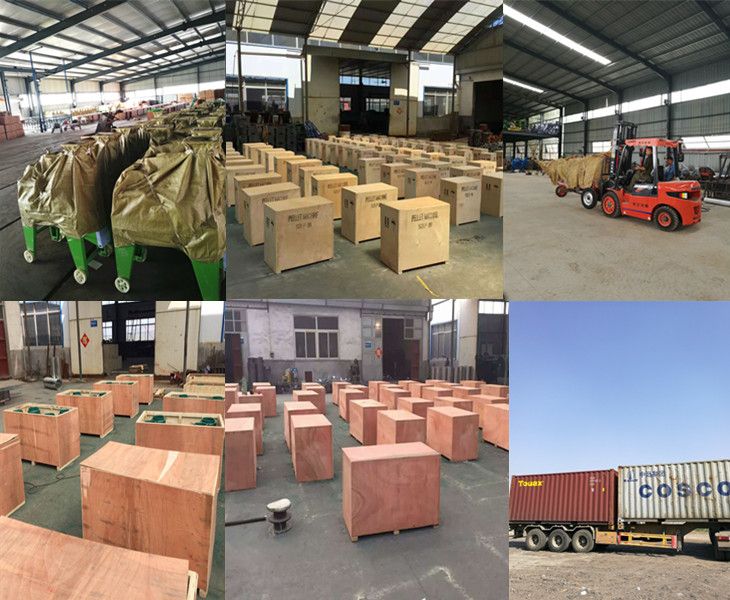

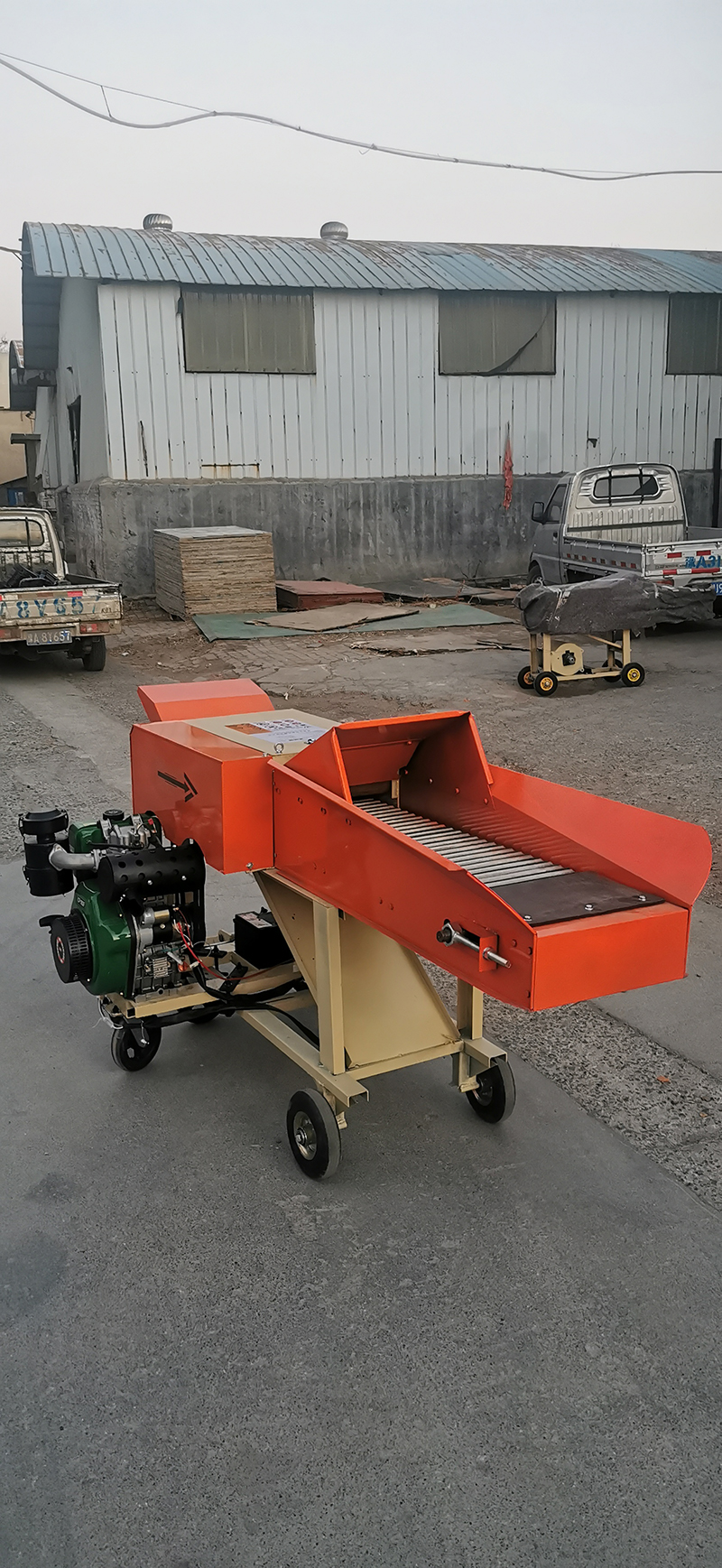

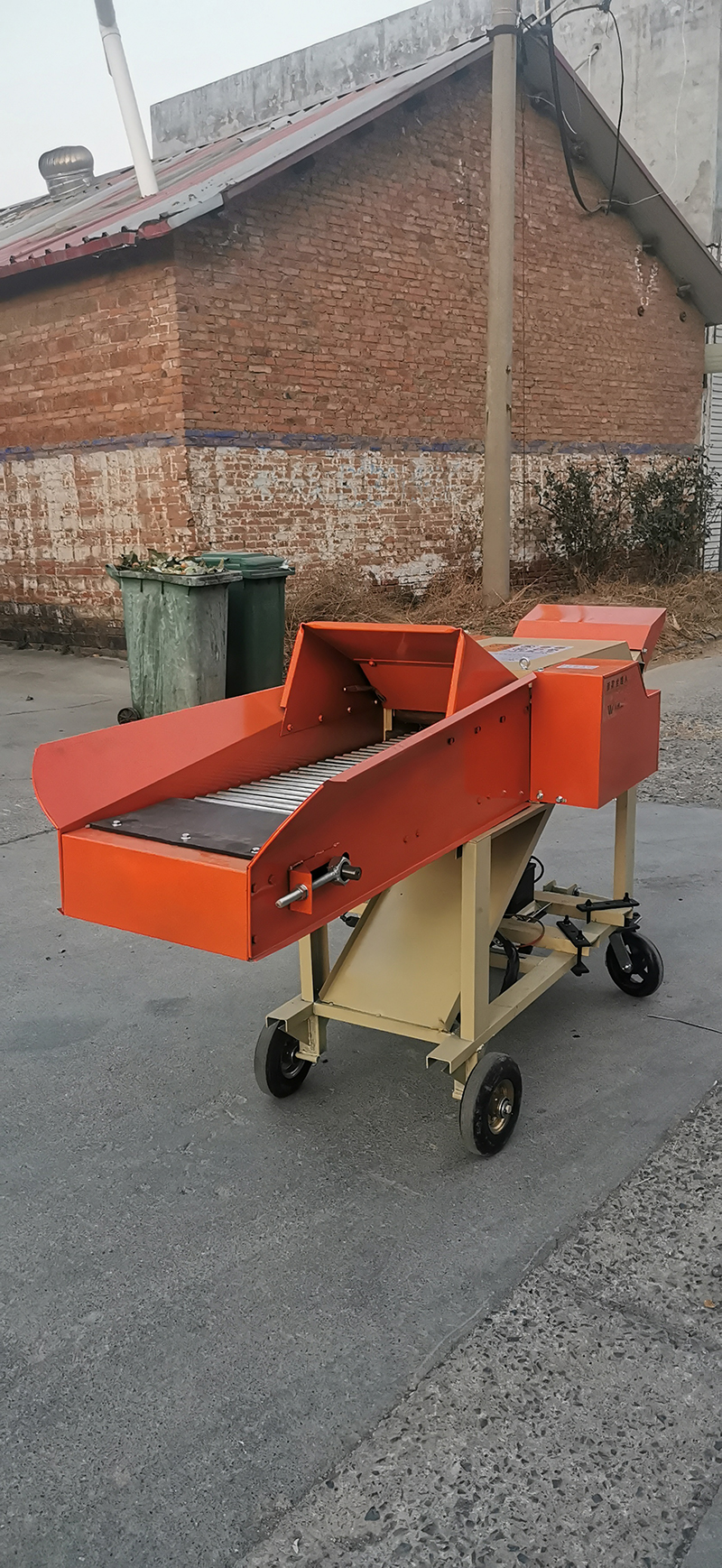

Product Details and Packaging

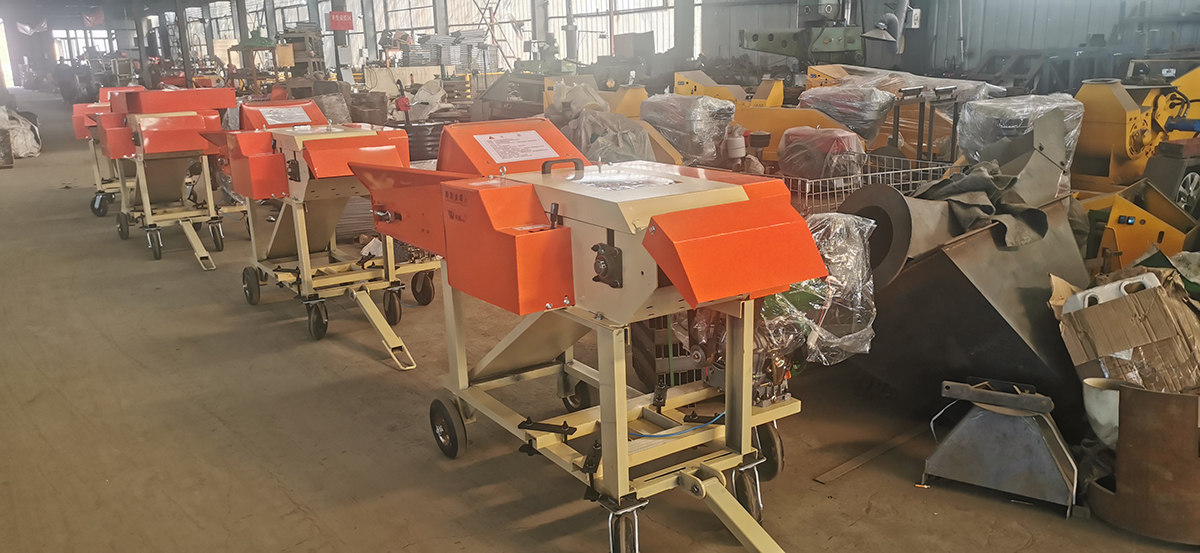

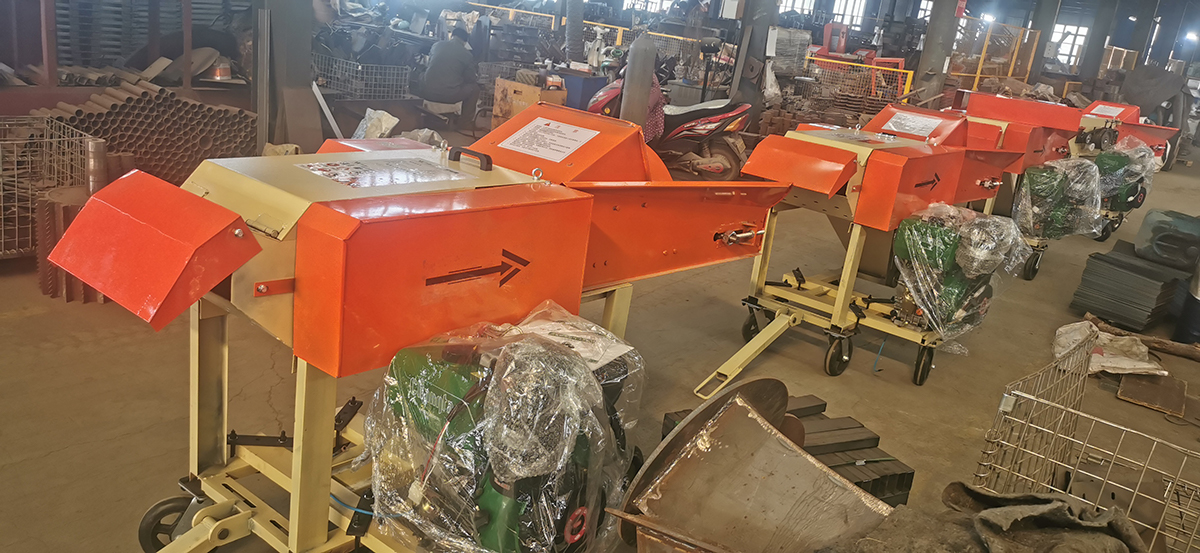

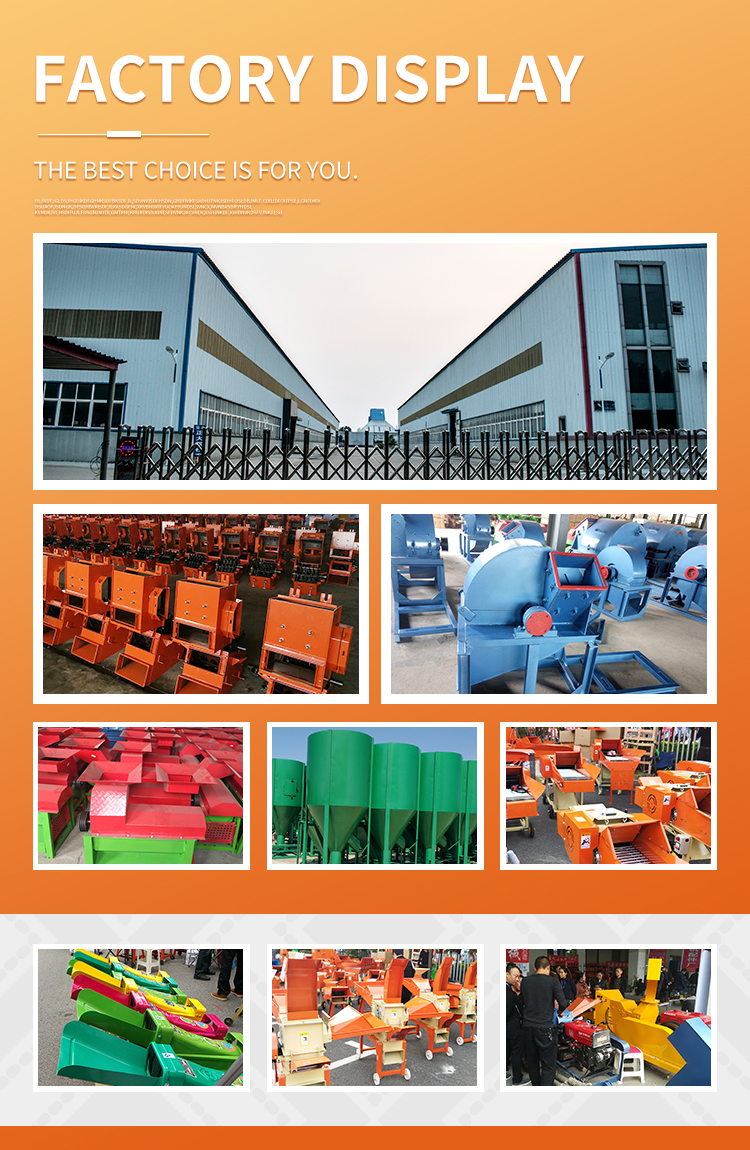

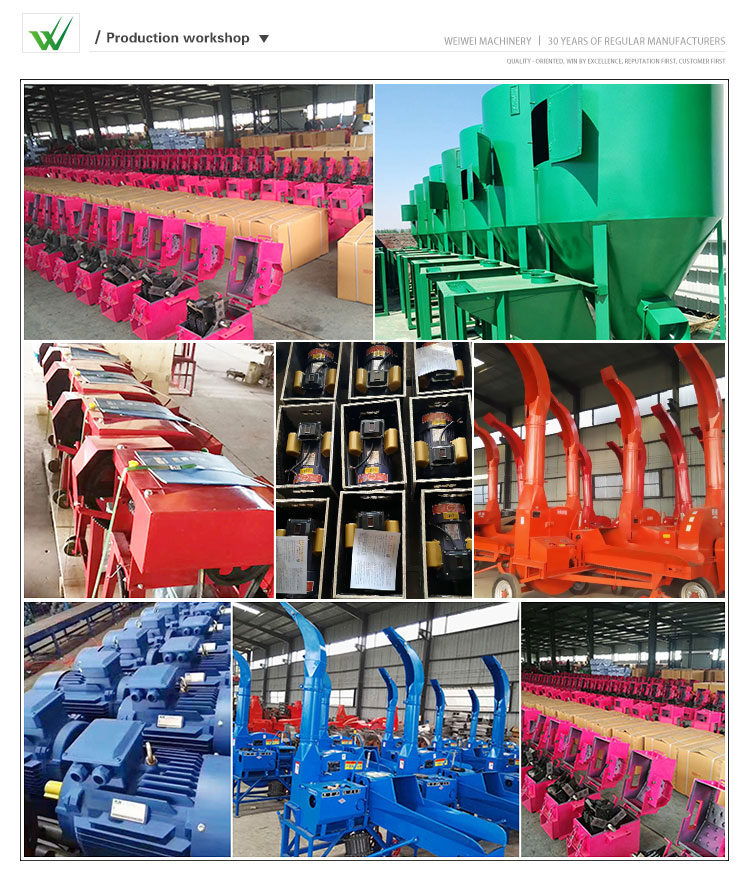

Factory and more information

Zhengzhou Weiwei Machinery Co.,Ltd.

30 years of agricultural machinery manufacturer，The company's main production:grass chopper, hay mill, feed grinder, baler, silage machine, mixer, pellet machine, wood chip machine, branch shredder, shaving machine, sawdust machine, motor, diesel engine, milking machine, sprinkler Feed trucks and other garden and farming machinery.
