Milling process:
Rice, millet, sorghum, etc. are processed into refined rice, and the separation of rice, bran, and broken rice is completed (the whole grain rate can reach 90%).
Grinding process:

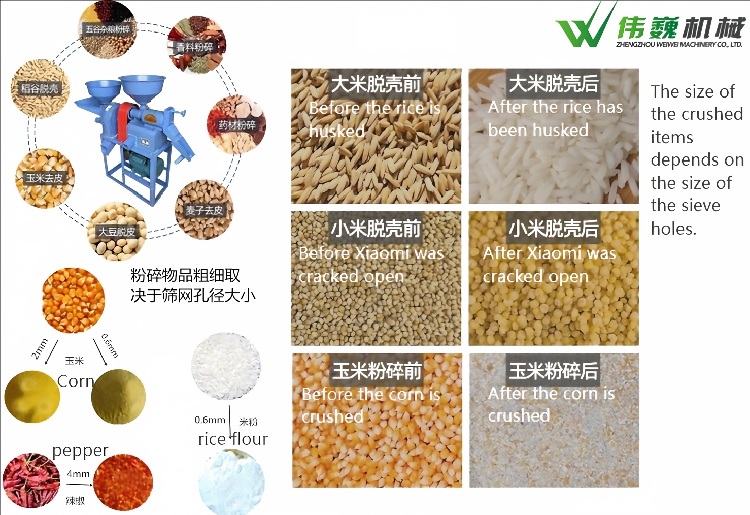

Corn, chili peppers, spices, wheat, tubers, straw, and Chinese herbal medicines are ground into powder, and the fineness is determined by the mesh size of the sieve (customized sieves are available).
When the rice mill is operating, the motor drives the rice rollers to rotate at high speed within the milling chamber through a reduction device. The rice grains from the feeding hopper are continuously pushed forward in the milling chamber, generating compression. This causes friction and rubbing between the rice grains, the rice rollers, the rice screen, the rice knife, and the grains themselves during their movement. The rice skin is removed, and a mixture of rice bran is formed. The rice bran mixture is discharged through the rice outlet, and the rice flows out through the rice outlet after separation. The rice bran is discharged through another outlet. The flow rate of the rice entering the milling chamber is controlled by the feeding flap located at the feed inlet. The flow rate should match the production capacity of the milling machine. If the flow rate is too large, the milling chamber will become clogged; if the flow rate is too small, production will be reduced.
When the crusher is in operation, the rotating disc attached to the main shaft rotates at high speed, while the teeth claws continuously strike the materials. The stationary disc is completely fixed and does not rotate. The teeth of the stationary disc are offset from those of the rotating disc, forming a narrow grinding gap. Together with the rotating disc, it completes the squeezing and grinding process, preventing the materials from flying out directly and prolonging the grinding path.
The raw materials enter the middle of the two discs with serrated edges. One disc rotates rapidly while the other remains stationary. The materials are constantly struck, torn and ground between the interlaced teeth. After being ground finely, they pass through the screen on the edge and fall out. The unground materials continue to be repeatedly ground.
By relying on impact, shearing and squeezing, the fineness is higher than that of a simple hammer plate crusher. It is suitable for grinding flour, corn flour and seasoning powder.

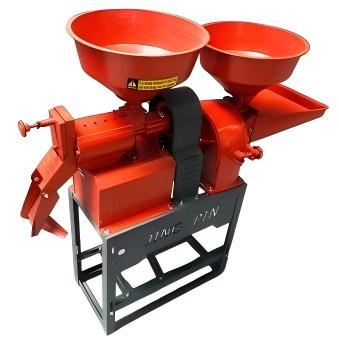

This machine from Weiwui Machinery can complete the operation of removing husks and separating grains from rice. It can effectively preserve the germ of the rice and can completely separate white rice, broken rice, rice bran and rice husks. It can also grind various grains into fine powder. The equipment is easy to operate, the rice sieve can be replaced conveniently, the broken rice rate is low, the running performance is stable, and it integrates the functions of husking and crushing. It can be used for multiple purposes and is suitable for use in households and small workshops.
Excellent body design, with outstanding multi-functional performance

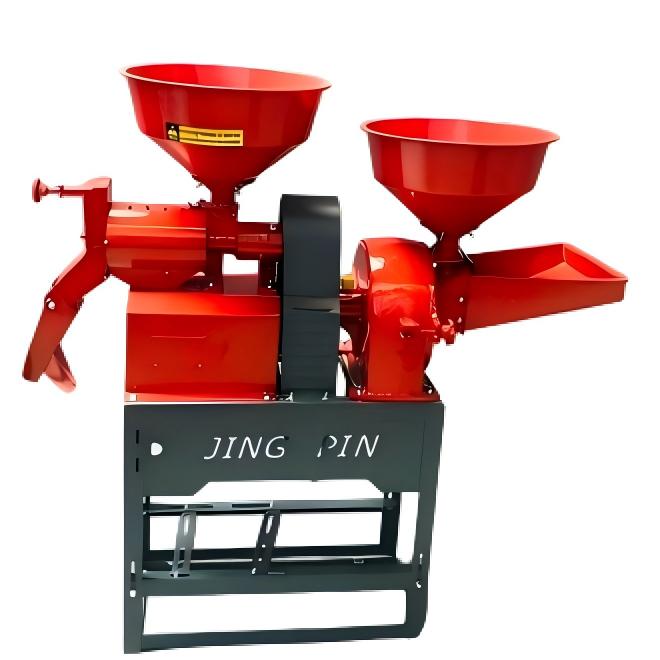

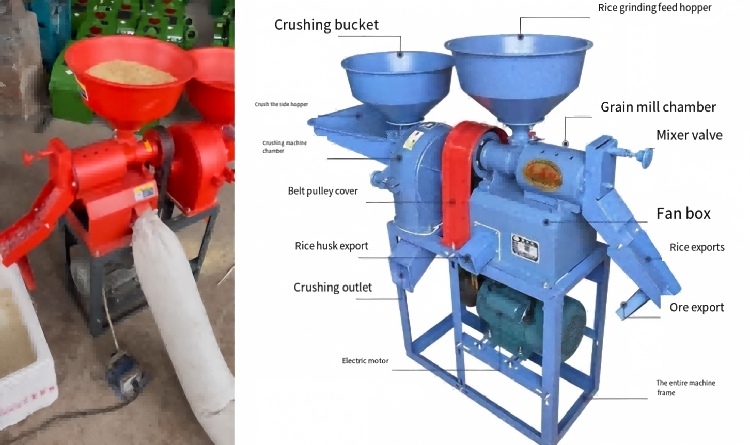

This rice grinding and crushing combination machine is entirely crafted using precision casting technology, with a sturdy and wear-resistant overall structure. The feeding part is equipped with enlarged double hoppers, and the rice grinding hopper and the crushing double feed hoppers have clear divisions of function. The enlarged hopper discharges materials evenly and rapidly, allowing for the simultaneous addition of more materials. The edges of the hopper are smoothed, making the operation process safe and less likely to cause hand injuries. The rice grinding chamber is combined with a dedicated rice sieve and air intake holes to ensure smooth airflow of the fan. The crushing chamber adopts a gear claw dynamic and static plate structure, relying on the triple effects of impact, shearing, and compression to achieve material grinding. Different-sized sieve nets can be replaced to freely adjust the fineness of the finished product. The four-slot motor wheel is paired with four belts, allowing for the switching of grinding and crushing functions without the need to disassemble the belts, making the operation convenient and worry-free.
The machine is equipped with a rice quality manual adjustment valve, which controls the processing quality by adjusting the pressure. Tightening the adjustment valve increases the pressure in the cabin, making the husking of rice cleaner; loosening the adjustment valve reduces the pressure, which can reduce the production of broken rice and can be adjusted according to the state of the rice to achieve the ideal processing effect. The grinding process is equipped with an internal blower, which realizes the separation of rice, bran, and husk through wind force; the out-milling port is equipped with a filter screen and an active slurry sieve, completing three separations and filtrations, effectively screening out broken rice and impurities. The special gap design at the out-milling port prevents rice from flowing back and mixing with rice bran, ensuring the finished rice is clean and pure.

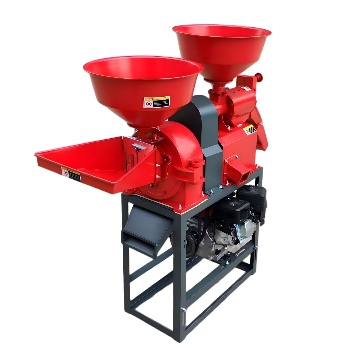

The steel frame of the entire machine is stable and reliable. It can be assembled for electrical operation with an electric motor and also supports modification to gasoline engine or diesel engine versions to meet the usage requirements in areas without electricity. The equipment is simple to operate, with convenient disassembly and replacement of the screen, and a low rate of broken rice. This machine can simultaneously perform rice husking and grinding, as well as grinding of grains, spices, and medicinal materials, and is suitable for diversified production needs in family processing and small workshops.
Professional packaging solution to ensure product quality during shipment
This equipment is packed in a wooden box made of solid wood. It can effectively cushion the impact and compression during transportation, preventing the machine from chipping off the paint or damaging the components. For customized machines, the process follows that the entire machine is first modified and debugged before being packed in the wooden box and dispatched. For gasoline engine, diesel engine modified models, and customized models with color and style options, after confirming that all products meet the customer's customized requirements, packaging and shipment will be arranged to ensure that the customer receives a complete and qualified customized equipment.
