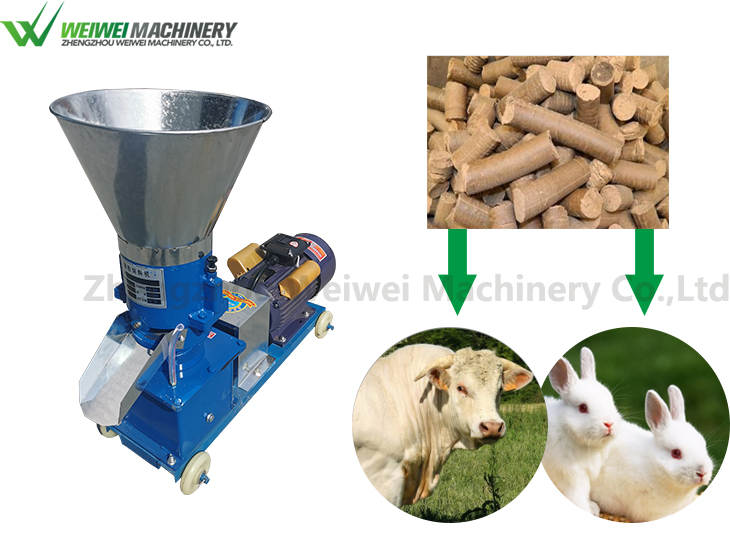

The 9KPL-120 is used in feed manufacturing plants, animal breeding plants, farms, ranches and domestic scenarios to make feed for pigs, cattle, sheep, horses, chickens and fish etc. With the development of the agricultural and livestock breeding industry, feed feeding has become the most economical and efficient method

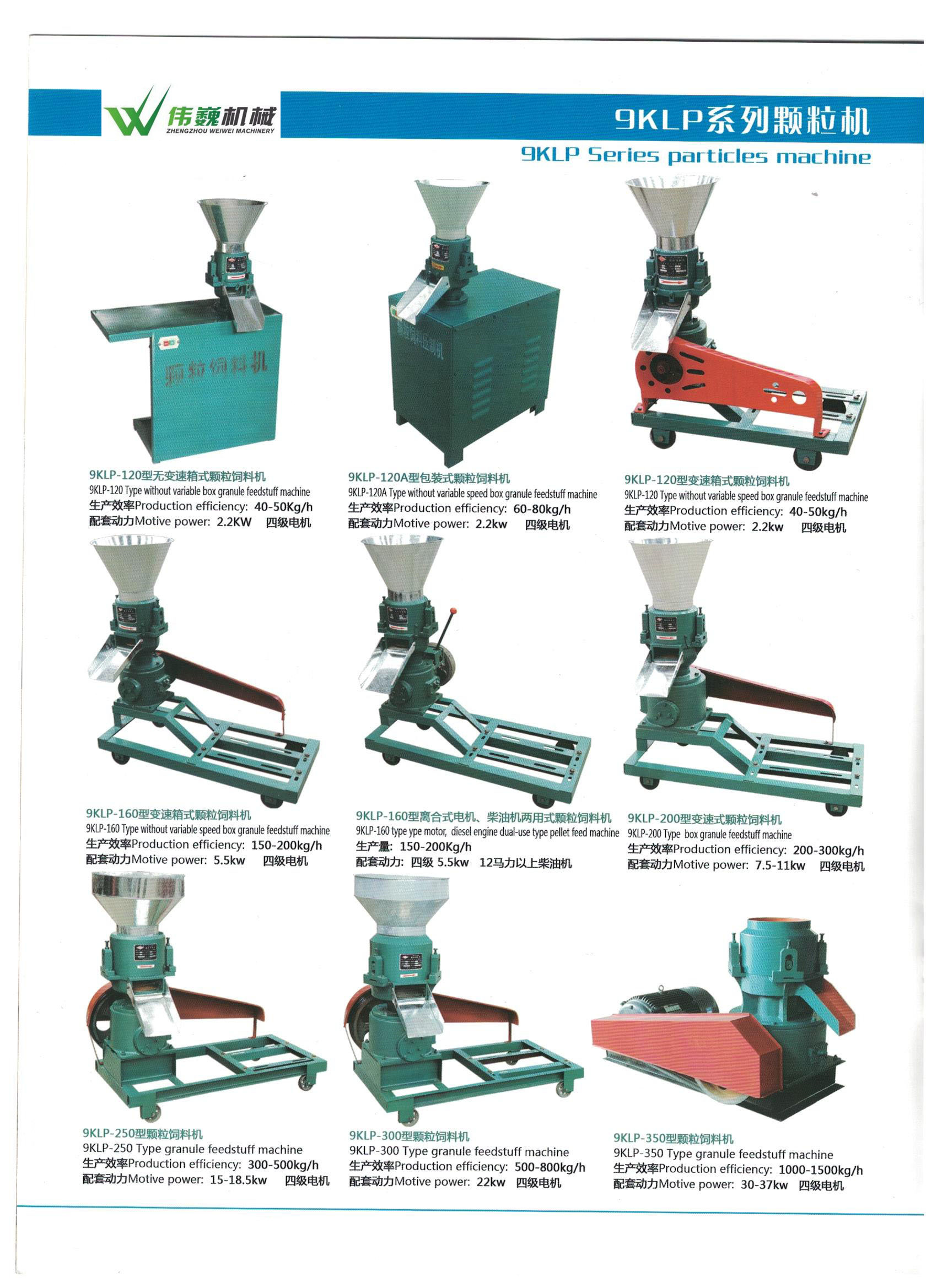

Our KLP12O, KLP160, KLP200, KLP250, KLP300, KLP350, KLP400 and KLP500 flat die pellet mills, with complete specifications and leading technology, can meet the different needs of all kinds of farmers.
| Model |
9KLP-120 |
9KLP-160 |
9KLP-200 |
9KLP-250 |
9KLP-300 |
Equipped with power
KW |
3 |
5.5 |
7.5-11 |
15-18.5 |
22 |
Productivity
Kg/h |
60-80 |
100-150 |
150-300 |
300-500 |
600-800 |
Flat die diameter
MM |
Φ120 |
Φ160 |
Φ200 |
Φ250 |
Φ300 |
Spindle speed
R/Min |
400 |
380 |
380 |
260 |
260 |
Weight
KG |
50 |
70 |
115 |
175 |
220 |
The raw material is corn, soybean meal and various other ingredients.

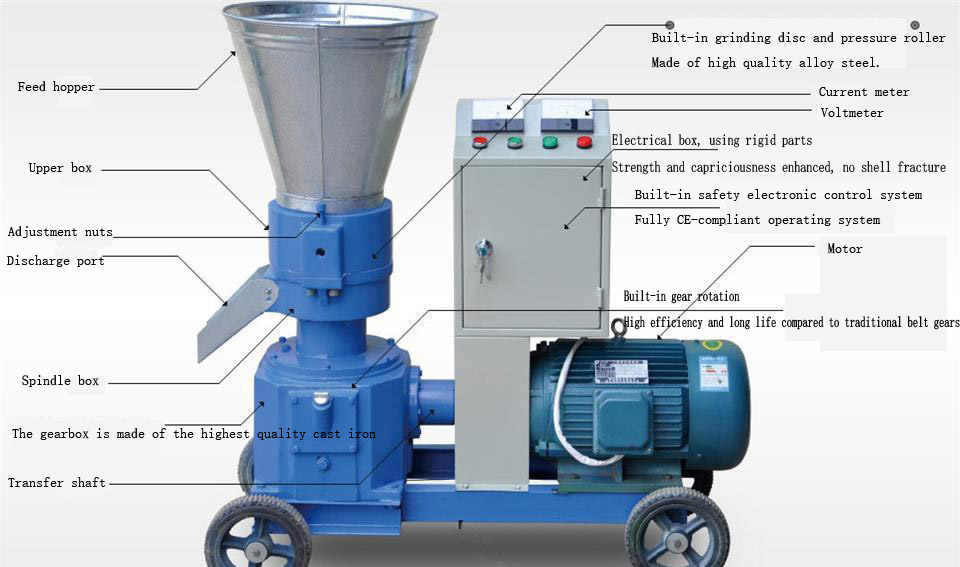

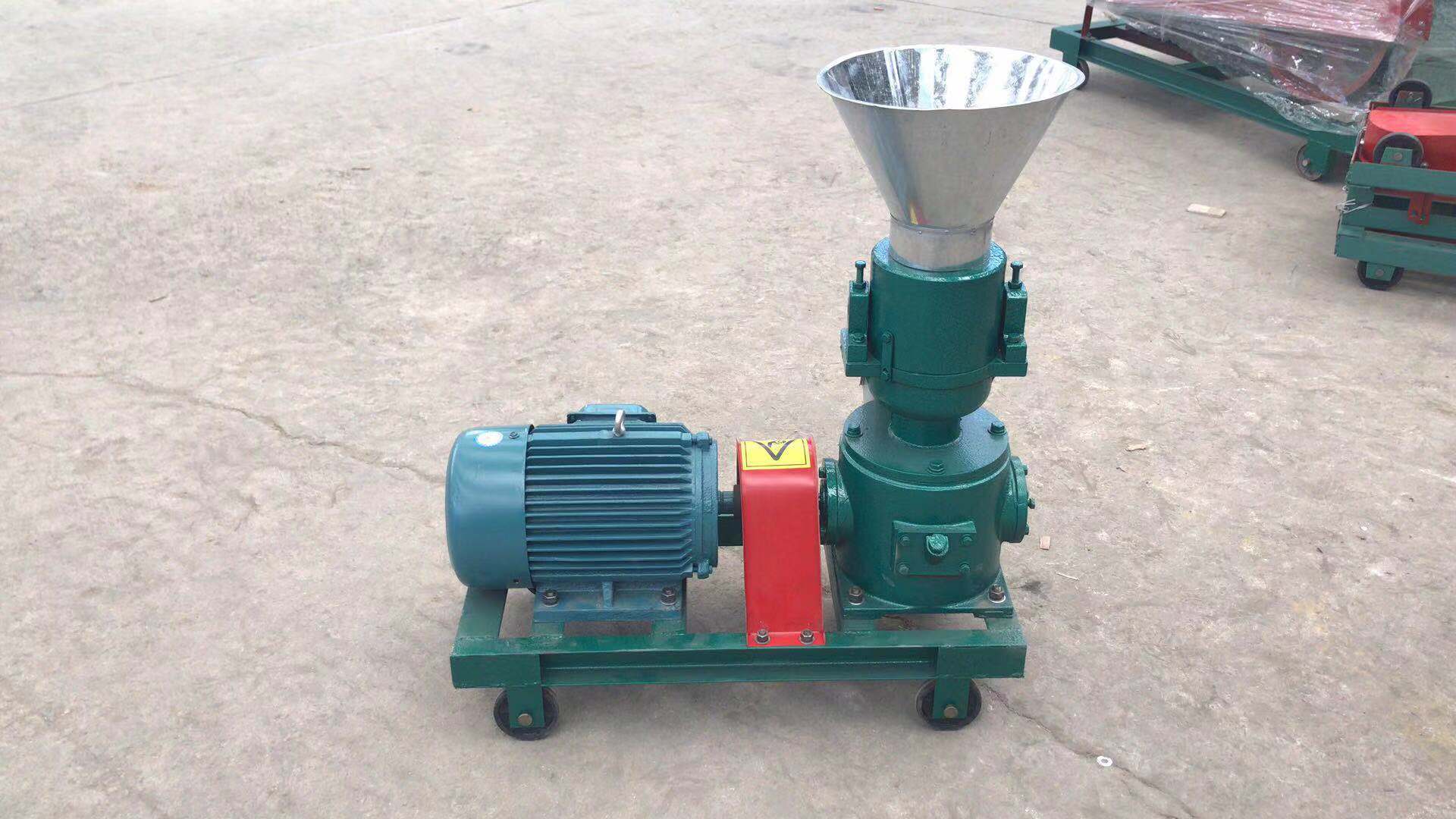

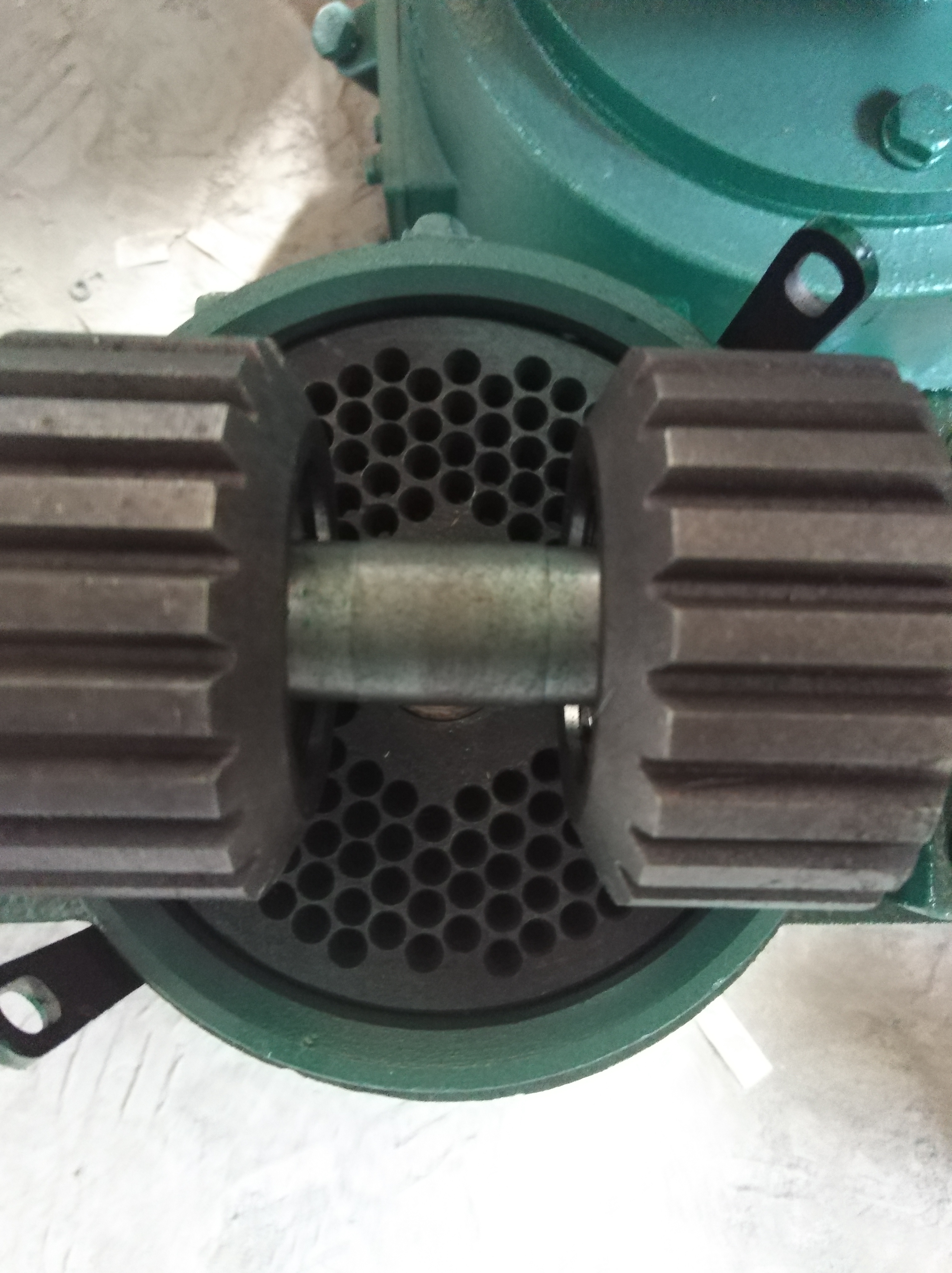

The motor belt transmits the power to the gearbox gears, and the regulated power is transmitted to the grinding discs and rollers in the workshop, and the raw material is extruded from the outlet after extrusion.
This machine is a feed processing machine that directly presses pellets from crushed corn, soybean meal, rice husk, grass, straw, etc. It is widely used in large, medium and small aquaculture, feed processing plants, livestock farms, poultry farms, individual farmers and small farms.
1. The machine does not need to add steam during the processing, and the temperature rise is low. It can well maintain the various nutrients in the raw material. During processing, all kinds of rough and fine feeds are used as raw materials, suitable additives are selected, mixed and stirred well and then the pellets can be made.

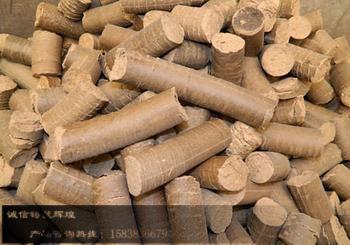

2. The granules are uniform in composition, neat in shape, low broken rate and smooth in surface. The aperture specifications are: Φ2.5, Φ3, Φ4, Φ5 (the above four can be used on both sides); Φ6, Φ7, Φ8, Φ9, Φ10, Φ12, which can basically meet the needs of all kinds of farmers.
3. The water content and hardness of the pellets can be adjusted according to the needs, and the pellets can remain in their original state in the water for a longer time, thus greatly improving the utilization rate of the feed.
The equipment covers a small area, low energy consumption, simple operation, easy to use, low cost and high efficiency.

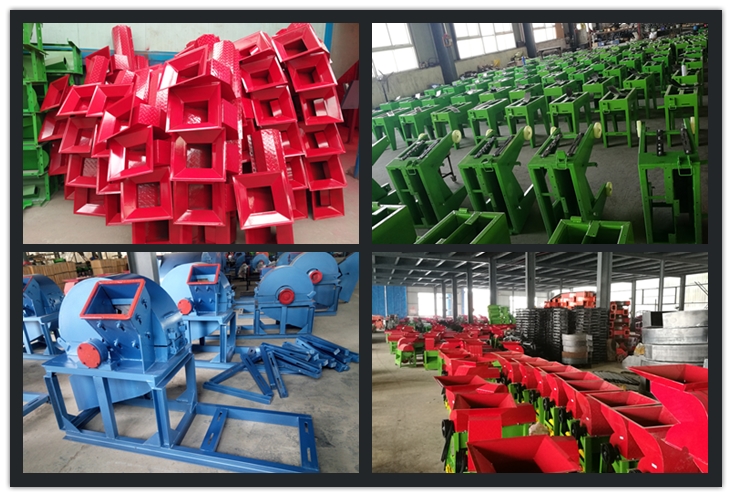

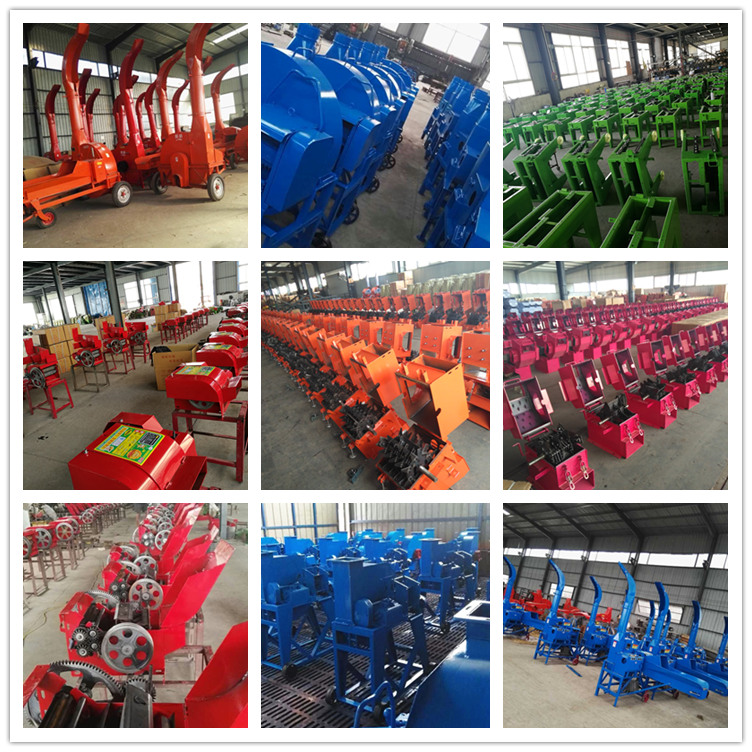

Zhengzhou Weiwei Machinery Co.,Ltd. 30 years of agricultural machinery manufacturer，The company's main production:grass chopper, hay mill, feed grinder, baler, silage machine, mixer, pellet machine, wood chip machine, branch shredder, shaving machine, sawdust machine, motor, diesel engine, milking machine, sprinkler Feed trucks and other garden and farming machinery.
