Weiwei wood hammer sawdust machinery forestry wood crusher
  • Weiwei wood hammer sawdust machinery forestry wood crusher

Weiwei wood hammer sawdust machinery forestry wood crusher

Categories:wood branch crusher
Capacity:500-1500kg/hour
Power:22-30KW
Engine:
Applications:500-1500kg/hour
Tel:0086-371-63283021
Email:admin@weiweimachinery.com
WhatsApp:+86 198 3869 1608

Applications

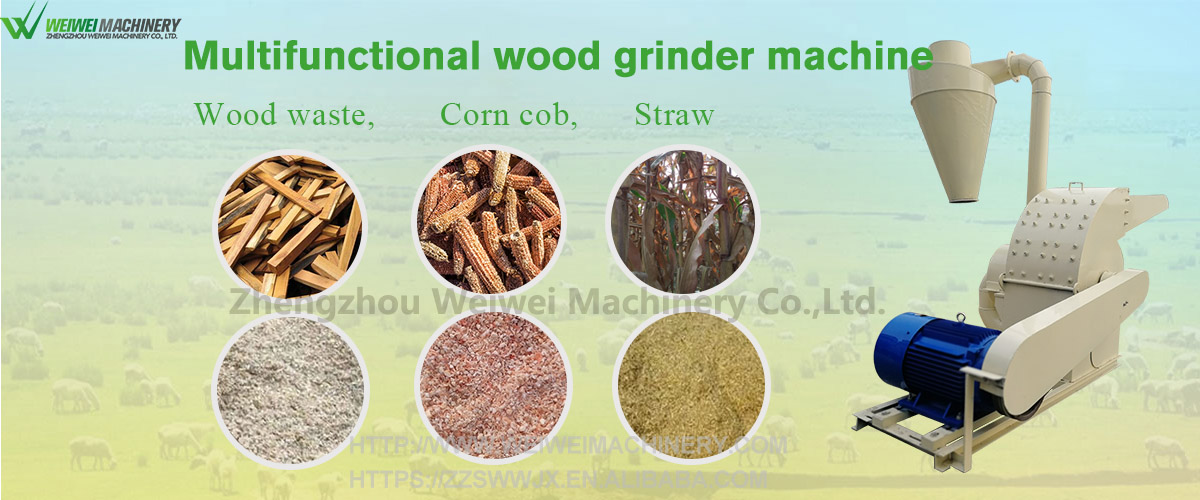

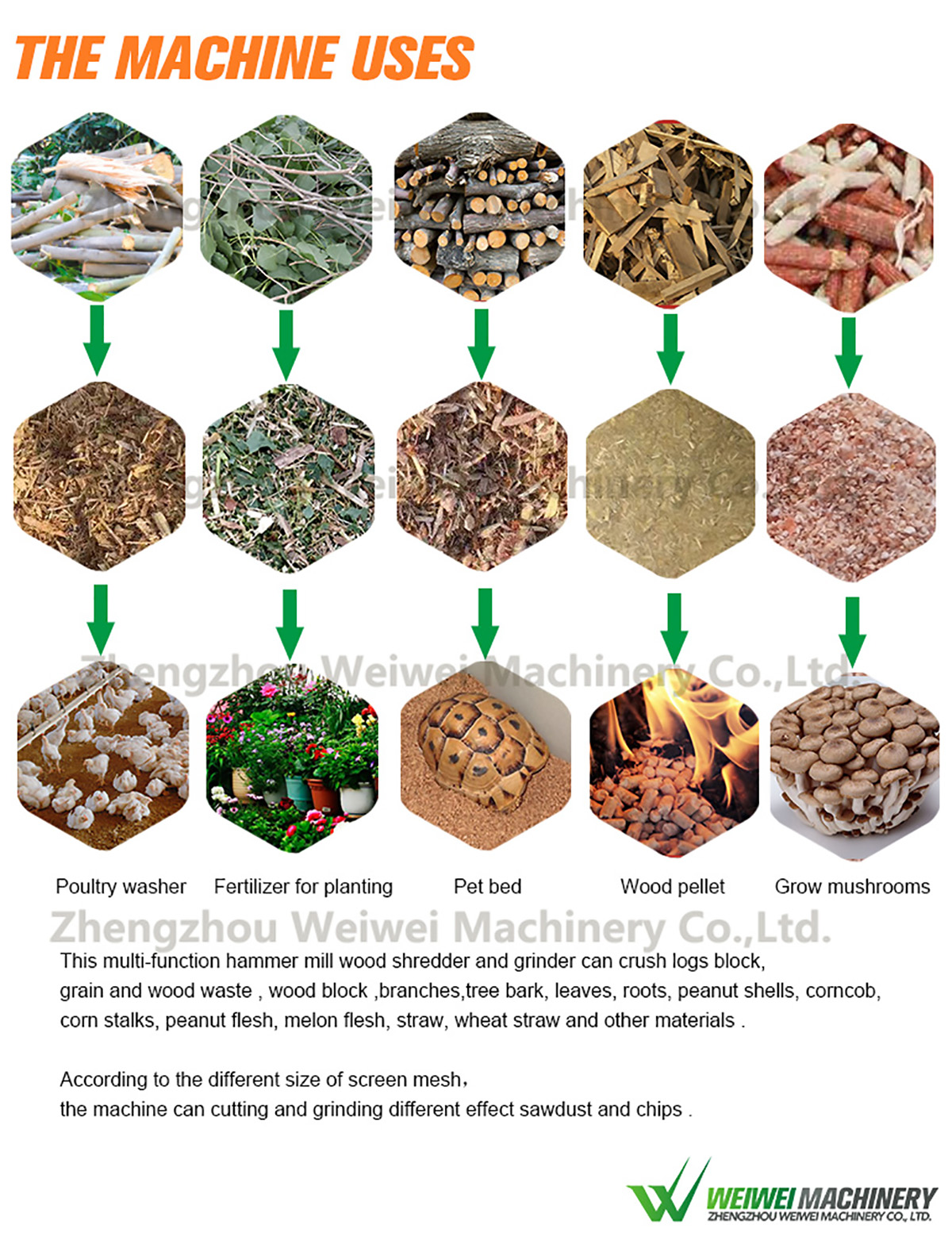

This multi-function hammer mill wood shredder and grinder.



It can crush logs block, grain and wood waste , wood block ,branches,tree bark, leaves, roots, peanut shells, corncob, corn stalks, peanut flesh, melon flesh, straw, wheat straw and other materials .



According to the different size of screen mesh,the machine can cutting and grinding different effect sawdust and chips .


parameter

Application Grinding logs, corn cob, branches into sawdust
Name Wood hammer crusher
Model no. 500-6
Power 22-30KW
Voltage Customized
 Feeding hole size 60*30cm
Capacity 500-1500kg/hour
Hammer quantity (pcs) 24 pcs---18*6*0.6cm
Steel cleading quantity (pcs) 15 pcs---19*19cm
Product dimensionL*W*H)mm 170(L)*122(W)*120(H) cm
Matching motor Electric motor/ diesel engine/PTO
Product effects  Mesh can be customized
Modify series We supply modification series

原料 成品 用途.jpg

principle

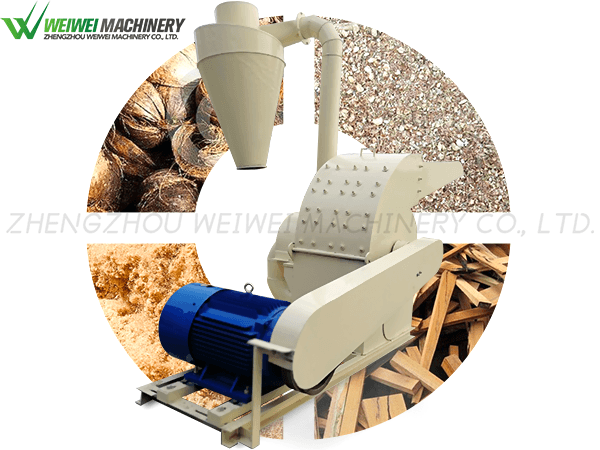

Working Principle

By the high-speed airflow impact, double comminution and collision between sawtooth hammer and lining plate, the micro-material sorting process can be completed at the same time. In the process of grinding, the rotor produces high-speed air flow. With the rotation of the cutter head, the material accelerates in the air flow, and the material is subjected to double comminution at the same time by repeated impact. The material is crushed into wood chips and powders of uniform size at the same time.

wood sawdust machinery

Detail

Cleading

The cleading is added to the working room, and the function of the lining board is to crush the crushed wood through two times of grinding, thereby increasing the crushing efficiency of the wood and increasing the output

The sawtooth hammer by carbon steel can be made of wood for multiple impact crushing, and then improve the broken rate, and can use both sides of the hammer, ones side broken, the user can replace the hammer hammer, but can change at the same position, can not be exchanged, so as not to affect the dynamic balance of the machine, double-sided use reduce the use cost.


Cyclone dust collector

Cyclone dust collector and fan device, Increase discharging speeds and filter the finished product. And the Cyclone dust collector device can be customized to meet the requirements of the guests.



Widening feed port



On the basis of the original model to update, widen the feed port, more convenient to feed raw materials, and can feed more kinds of raw materials
