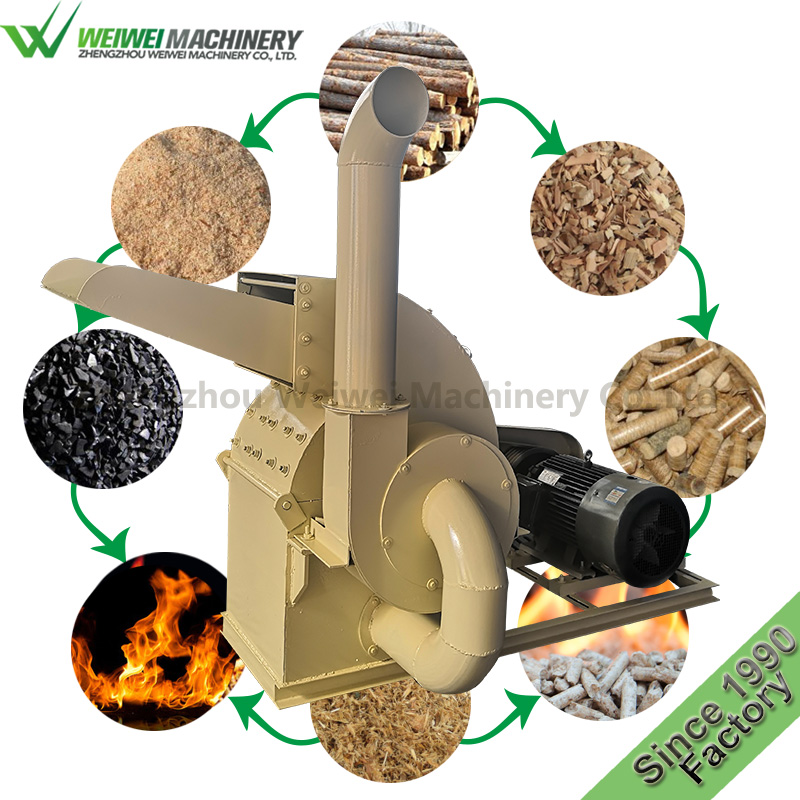

WeiweiDJM-420 sawdust machine, wood chipper, wood crusher
  • WeiweiDJM-420 sawdust machine, wood chipper, wood crusher
  • WeiweiDJM-420 sawdust machine, wood chipper, wood crusher
  • WeiweiDJM-420 sawdust machine, wood chipper, wood crusher
  • WeiweiDJM-420 sawdust machine, wood chipper, wood crusher
  • WeiweiDJM-420 sawdust machine, wood chipper, wood crusher
  • WeiweiDJM-420 sawdust machine, wood chipper, wood crusher

WeiweiDJM-420 sawdust machine, wood chipper, wood crusher

Categories:wood sawdust machine
Capacity:0.4-1.5T/HR
Power: 22-30KW
Engine:Electric ,diesel engine ,gasoline engine
Applications:Agriculture Farm Pasture Animal Husbandry Feed Industry, etc.
Tel:0086-371-63283021
Email:admin@weiweimachinery.com
WhatsApp:+86 185 3090 9157
Widely apply for paper mills, power plants, wood pellet machine .wood material crushing ,edible fungi raw materials processing, Mechanism charcoal raw materials processing, wood-based panels, chemical raw materials, landscaping, biological organic fertilizer, poultry farm and other small and medium enterprises and personal garden use.

parameter

Model

Hammer(pcs):

Power(kw)

Qty of blade
(pcs)

  Capacity(kg/h)


DJM-420
Single  inlet
18 7.5-11 4 0.3-0.6
DJM-420
Double   in et
18 11-15 4 0.3-0.6
DUM-500-40
Single  inlet
24 18.5 4 0.5-0.9
DUM-500-40
Double inlet
24 22 4 0.5-0.9
DJM-500-50 24 22 4 0.8-1.5
DJM-500-60 24 30 4 0.8-1.5
DJM-600-60 30 30 4 1-2
DJM-600-70 45 45 4 1-2

principle

By the high-speed airflow impact, double comminution and collision between sawtooth hammer and lining plate, the micro-material sorting process can be completed at the same time. In the process of grinding, the rotor produces high-speed air flow. With the rotation of the cutter head, the material accelerates in the air flow, and the material is subjected to double comminution at the same time by repeated impact. The material is crushed into wood chips and powders of uniform size at the same time.


Detail

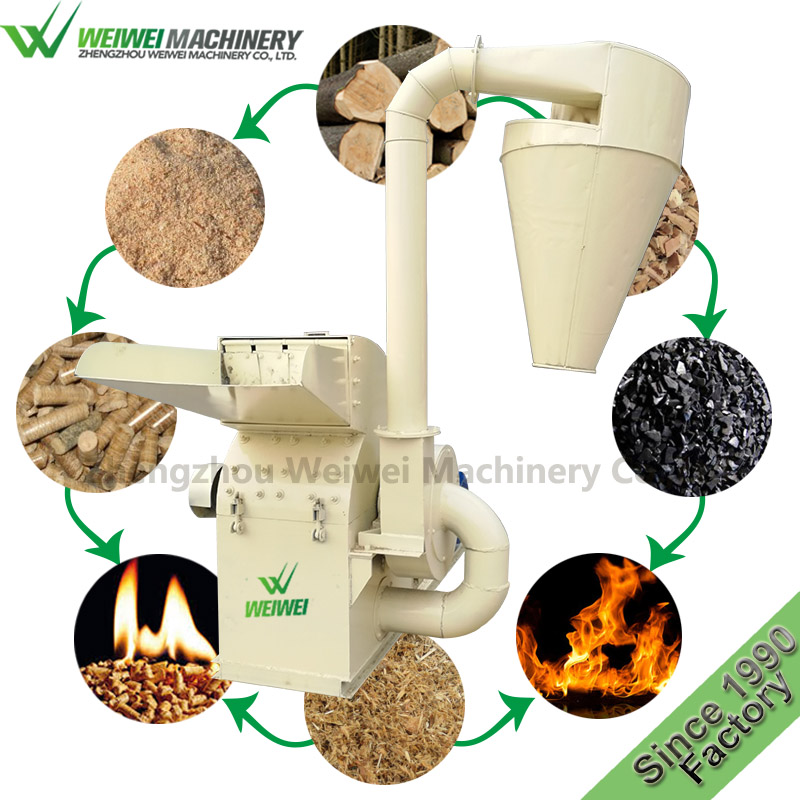

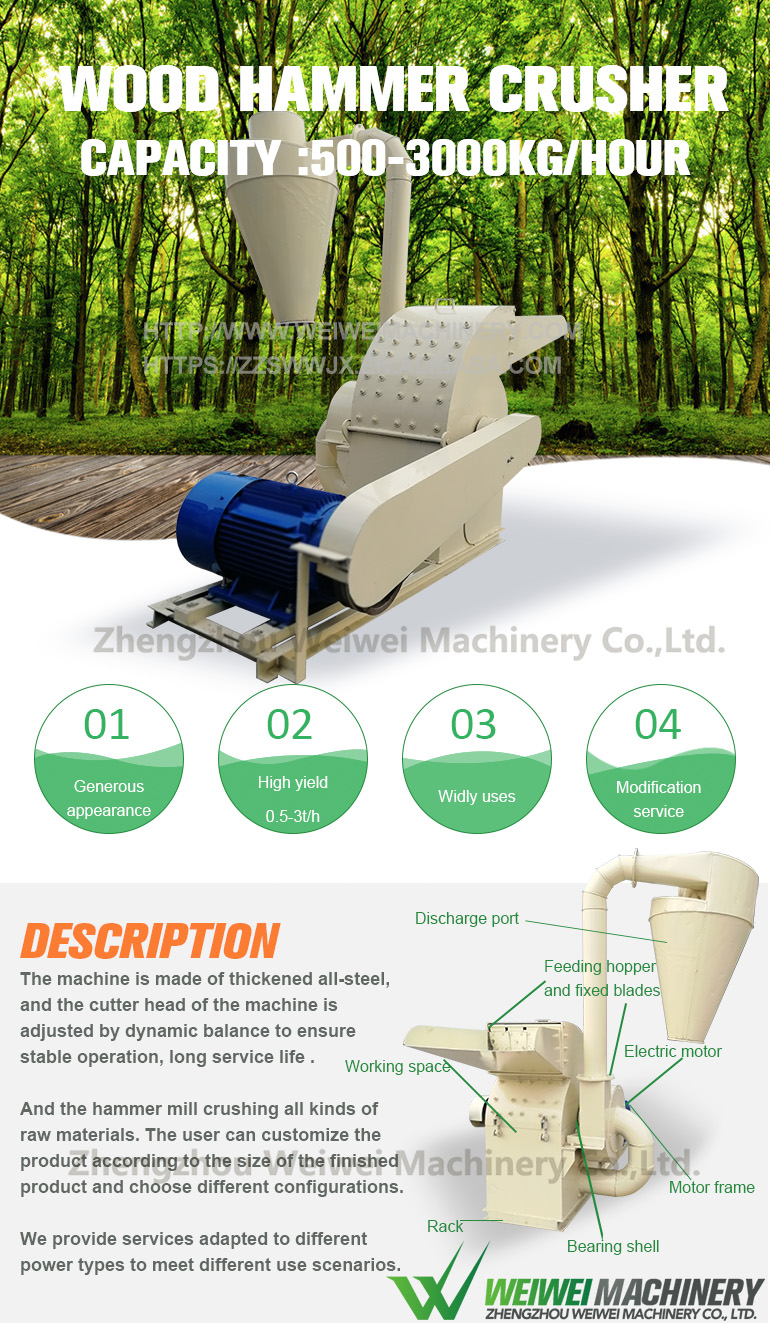

This machine consists of (log feed port) branch feed port, fixed knife, bearing, upper shell, wear-resistant liner , thickening cutter disc, serration carbon steel hammer, fan blade, thicken screen mesh, air intake port , fan device, upper outlet, safety shield, motor mounting frame, motor wheel.cyclone.

It can also be added into pulled by tractors type, rubber wheel, traction frame, electric motor ,diesel motor and so on.


This multi-function hammer mill wood shredder and grinder.

It can crush logs block, grain and wood waste , wood block ,branches,tree bark, leaves, roots, peanut shells, corncob, corn stalks, peanut flesh, melon flesh, straw, wheat straw and other materials .

According to the different size of screen mesh,the machine can cutting and grinding different effect sawdust and chips .

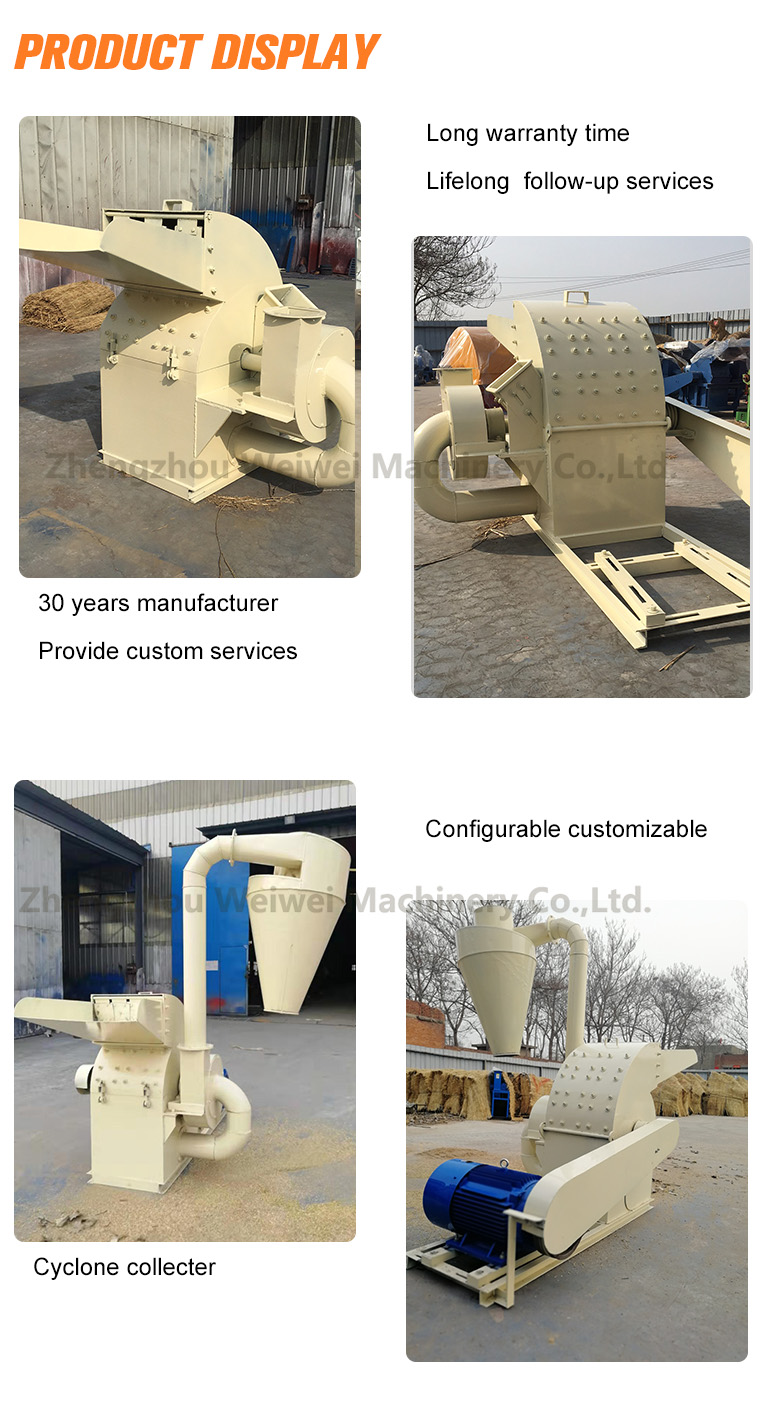

Product Details and Packaging

 The machine is made of thickened all-steel, and the cutter head of the machine is adjusted by dynamic balance to ensure stable operation, long service life .
And the hammer mill crushing all kinds of raw materials. The user can customize the product according to the size of the finished product and choose different configurations. We provide services adapted to different power types to meet different use scenarios.

Factory and more information

Ltd. is located in the western suburb of Zhengzhou City, the capital of Henan Province, 3 kilometres north of Xingyang Station Exit of Kai-Luo Expressway. Established in 1980, the factory covers an area of more than 10,000 square meters and has an annual production capacity of 40,000 to 50,000 units. The company mainly produces: 9ZP series guillotine, 9ZF series guillotine grinder, 9FQ series feed grinder, MFJ series wood grinder, MBJ series wood shaving machine, MPJ series wood chipper, DJM series multifunctional wood grinder, 9YF series baler, corn thresher, corn ripper, peanut sheller, biomass pellet machine, supporting power motor, etc., and all kinds of The company has been pursuing the excellence with high quality and professionalism. The company always pursues excellence, with high quality staff, strict quality assurance system and optimal management of the entire production process, to ensure our "high-quality projects". The perfect after-sales service system makes you worry-free.
"Quality is the basis, winning by excellence, reputation first, customer first" is the company's purpose, may we join hands with you to create brilliant!
