A conditioner changes what happens before the die. It is a short, jacketed chamber where the mash meets steam for about 30 to 120 seconds at 70 to 90 °C. In that window the starch gelatinises — raw starch at roughly 20 % rising to 35–45 % — protein softens and binds, and the mash turns plastic. Forming rates climb above 95 % and fines fall below 5 %. The same heat, above 85 °C, knocks down Salmonella and other pathogens and breaks down anti-nutritional factors such as the trypsin inhibitor in soybean meal.

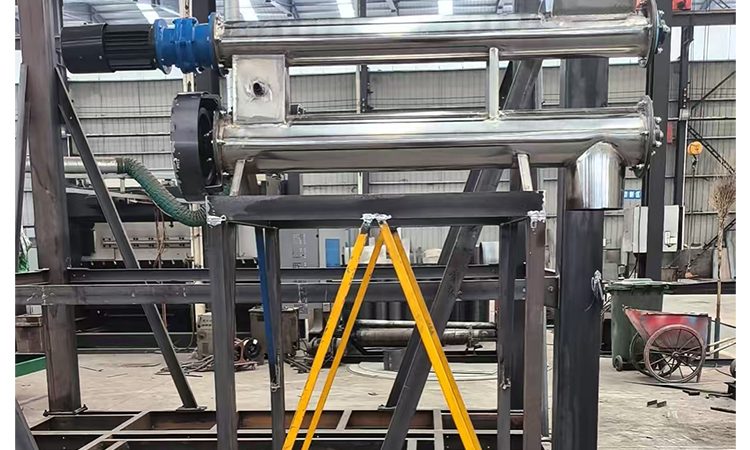

Steam used to mean a ring-die plant and a boiler. Weiwei now offers a conditioner as an optional add-on on its flat die pellet mills: a jacketed conditioning chamber fitted between the feeder and the die, connected to a small steam supply, or to controlled water injection where steam is not practical. Because the mash enters warm and soft, the main motor draws 10–15 % less current, die and roller life stretches by 30–50 %, and energy use drops by 20–30 % — the figures that decide whether a small mill pays for itself.
It matters most where pellet quality is the product: poultry and pig feed that must not crumble, and aquafeed that has to hold together in water. Tell us your raw material, target output and power supply, and we will quote the matching flat die model with the conditioner as a factory-fitted or field-retrofit option. WhatsApp +8613526462915 — we will send the layout and a running video. Weiwei Machinery, Zhengzhou, since 1980 — EU CE and ISO9001.
