WEIWEI diesel Drive Wood Chipper Grinder Wood Crusher Tree Root Branch

Categories：wood chipper

Capacity：

Power：

Engine：

Applications：

 Tel：0086-371-63283021

 Email：admin@weiweimachinery.com

 WhatsApp：+8619838691608

Function: Crush the following raw materials into finished products with the size of about 2-20mm, widely used in mechanism charcoal factory, artificial board factory, bio-power plant, paper mill, sawmill, feed mill, farm, mushroom edible fungus base, gardening and greening project

parameter

Model	MFJ-420
Dimension(mm)	1200550750
Feeding port size(mm)	160*155
Motor power(kw)	7.5-11
horse-power（hp）	15
Cutter head diameter(mm)	424
Blades(pcs)	4
Rotor speed(r/min)	2600
Capacity(t/h)	0.8-1.5
Blade size(mm)	90608

principle

Adopting innovative double crushing technology, it combines the cutting of blades and the impact of high-speed rotating hammer blades. In this process, the high-speed rotation of the rotor generates a strong airflow, in which the material is accelerated, while being cut by the blades and impacted by the hammer blades, which achieves fast and thorough crushing and greatly improves the working efficiency. In short, through the precision designed blades and hammer blades, and the high-speed airflow driven by the rotor, the wood crusher realises efficient and double crushing of wood materials, which is the ideal choice in the field of wood processing.

Detail

Raw material: logs, lumber, lumber trimmings, bamboo, coconut shells, straw, etc. Maximum size of logs is 190mm, recommended 180mm or less.

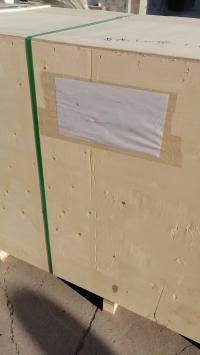

Product Details and Packaging

Factory and more information

Zhengzhou Weiwei Machinery Co., Ltd. is a modern enterprise focusing on the research and development, manufacturing and export of aquaculture, agriculture and forestry machinery. The company has a standardized production workshop, and its main products have passed the EU CE certification and ISO9001 quality management system certification, which fully complies with international safety and environmental protection standards and provides reliable guarantee for equipment export.
