Rice Mill Machine
  • Rice Mill Machine

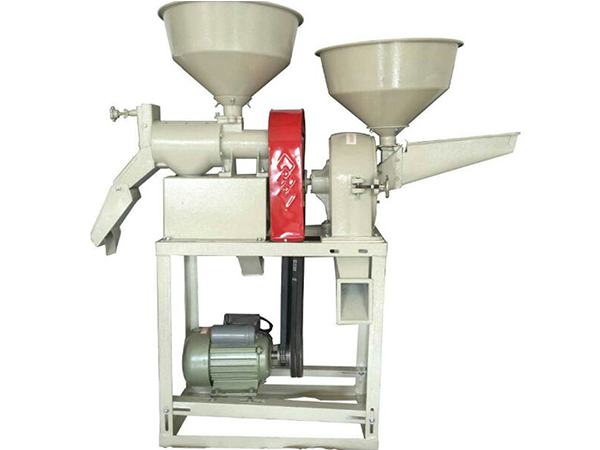

Rice Mill Machine

Categories:rice mill
Capacity:150-200kg/h
Power:1.5-2.2
Engine:
Applications:
Tel:0086-371-63283021
Email:admin@weiweimachinery.com
WhatsApp:+86 185 3090 9157
Application:

1.the rice mill machinery can process rough rice into rice immediately,and make the paddy husking efficiency.

2.Rice mill combined with a shredding machines,one machine two main function.

3.Two machine use one motor more cost –effective.

4.Combined rice mill machine is suitable for smashing corn,beans,pepper,herbs,spices,etc.It could be used by farms,rural family,feed-processing plants and enterprise on a small scale which's power supply is not convenient,etc.

5.Professional rice mill manufacturing factory, the price more advantages, we can provide OEM services, guests can choose different capacity and models according to their needs.


parameter

Mode:6N-40-9FC-21

6N-40

9FC-21

Rated powerkw

1.5-2.2

1.5-2.2

Rated motor speedmin/r

1200-1600

4500-5500

ProductionKg/h

150-200

140-220

Power consumption per ton kw/h

20

22

Net Weight:kg(without motor)kg

54

Dimension(L*W*H)mm

1120*400*1160

Packing size(mm)

640*330*625

Square tooth numberpcs

4

Flat tooth numberpcs

4

VoltageV

220


principle

Working Principle

Rice mill machine :

rice get through the feeder come to milling space ,then rice would be squeezed by bearing and rice blades. In this step rice will be shelled and come to discharge port of rice,unique design of discharge port will separate whole rice from broken one. At the same time broken rice bran will get through screen and go to bran bag, user can use the bran powder as animal feed .

Grain grinder:

Raw material keep being pulverizing by high speed spinning tooth then turn to powder . It use sieve of different size mesh to control the size of powder.  We usually provide two kind of sieve with machine. Structure of this machine is very simple. You can understand the working principle and learn to operate it easily.




Spice grinder is built up of housing,cover,rotor complement,screen,drawing-in device and framework.The housing and rotor complement build smashing room.The main work part of Spice grinder is the tooth-claw which is installed on the rotor,and the tooth-claw smashes kinds of grain materials in the smashing room.



1.Before delivery , we will test and adjust the machine, so you can use directly when you get it.

2.Operating video & instruction will be send to clients to help them better use the machines .

3.Any problems occur while using, professional advice will be given by us.


Detail

Milling shaft

1.Unique rice milling shaft making the rice mill more stable and long lifespan

2. The unique patents make the machine working stable. We manufacturing all the spare parts of rice mill the quality standard is stable. And according our production strength the supplying will be stable.

Main working part

1.Made by stainless steel,Working more stable.And Higher working effciency

2.The new design mill used rice sieve  and pressure help to shell,And reduce the friction between rice and iron

3.Improved the overall rate of rice.The machine is easy  to adjustment and  operation



Motor

1 The machine is equipped with a motor frame.easy to install.Small size, save .space, easy to install and fix, easy to operation.

2.The machine with Pure copper motor,Long working life, very durable. Voltage can be customized according to different areas, providing customized services for different regional users .

3.Motor adopts international standard has Stable performance.Small noise, working well and long service life .

Feed Hopper

1.More big feed hopper can be used for all grains-wheat, corn, rice, beans, etc.

2.Electrostatic spray,not easy to fade.color is not easy to fall off, beautiful appearance。

3.Large capacity, save energy and cost.
