The MFJ-420 wood hammer mill is designed to crush a wide range of raw materials, including logs, board scraps, bamboo, twigs, straw, palm leaves and other agricultural and forestry residues. The finished material is widely used in garden fertilizers, flower and plant cultivation, biomass fuel, pellet machine powder, paper-making, edible fungi, animal breeding and bedding, machine-made charcoal, and the preparation section of artificial board production.

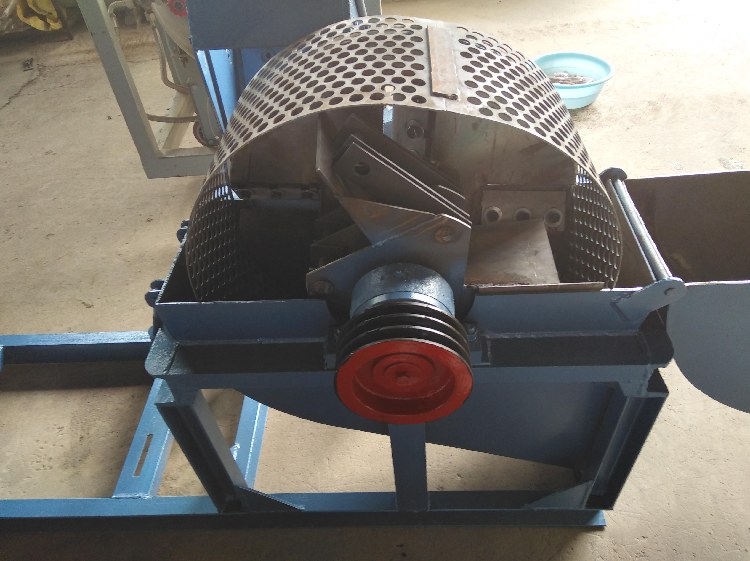

Turn on the switch and feed the raw material from the inlet. Straw is fed through the forage inlet and cut first by the ARC blade, while wood is fed through the wood inlet and cut by the moving knives on the rotating cutter disc. After the material enters the machine body, the hammers hit it at high speed, and together with the high-speed airflow generated by the rotor, the material is crushed twice — blade cutting plus hammer impact — greatly improving efficiency. The finished powder is smaller than the screen holes and is ejected through the discharge port. The final particle size is controlled by the screen (3 / 6 / 8 / 10 / 12 / 16 / 20 mm).

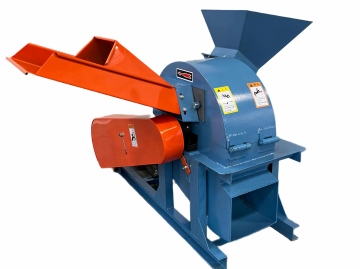

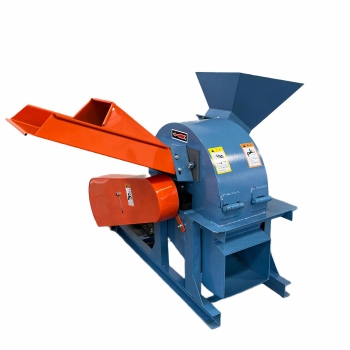

WEIWEI MFJ-420 is a wood hammer mill (wood crusher) built by Zhengzhou Weiwei Machinery, a manufacturer with over 40 years of experience. Compared with the regular model, the MFJ-420 adds a grass-cutting device with one more inlet and an ARC blade, so it can process both wood and straw/grass. The machine consists of a feeding device, chip-removing device, grinding device, blower and protective cover, featuring a thickened manganese-steel casing, widened hopper, dynamically balanced core, alloy blades and a cast-steel cutter disc. Driven by an 11 kW electric motor with a 424 mm cutter disc and 2600 r/min main shaft, it delivers 0.8–1.5 t/h output. With CE/ISO certification and OEM support, it is ideal for biomass fuel, wood pellet lines, garden waste recycling and board factories.
Key Features
This machine adopts double‑crushing mode combining blade cutting and high‑speed hammer impact for high‑working efficiency. It is fitted with an extra grass‑cutting device, featuring one additional feed inlet and ARC blade compared with ordinary models to process wood and straw with one unit. Equipped with thickened manganese‑steel casing and a widened hopper, the equipment ensures durability and faster feeding. Its dynamically balanced core enables smooth operation with low noise, while high‑quality alloy blades and cast‑steel cutter disc deliver excellent wear‑resistance and impact resistance. Interchangeable screens support output particle sizes ranging from 3 mm to 20 mm.
Packaging
For safe sea transportation, the MFJ‑420 machine is partially disassembled. The main unit, motor, hopper and cutter disc are cleaned and wrapped with protective film, then packed into a plywood case or reinforced iron‑frame crate. Screens, blades and other small accessories are separately packed with moisture‑proof treatment, suitable for both LCL and full container load shipments. Every shipment comes with an English operation manual, standard tools and recommended spare parts, and custom labeling as well as shipping marks can be provided for OEM/ODM orders.

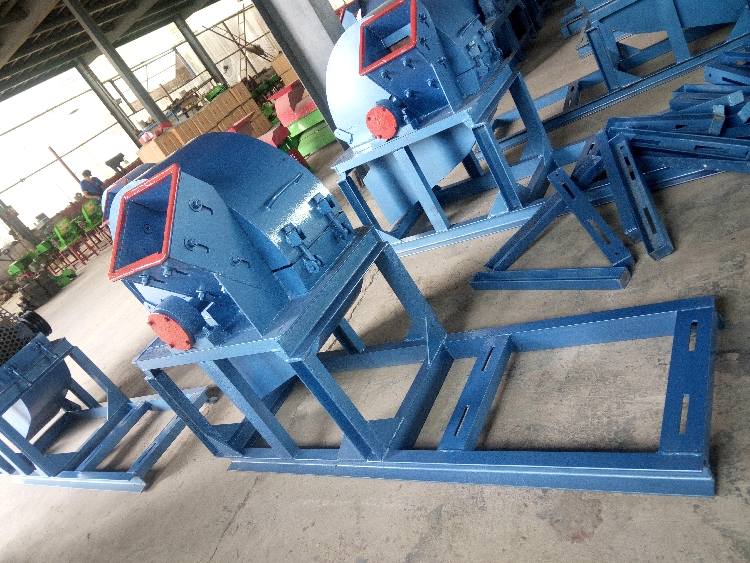

Our company is located in the western suburbs of Zhengzhou City, the capital of Henan Province. It is 3 kilometers north of the Xingyang exit of the Kaoluo Expressway. We started production in 1980, covering an area of over 10,000 square meters. Our annual production capacity is 40,000 to 50,000 units. We are a company integrating research, design, manufacturing and sales, and have the right to handle import and export independently. We mainly engage in technological research and promotion in the field of mechanical equipment. Our main products include: 9ZP series hay cutters, 9ZF and 9ZR series hay choppers and pulverizers, 9FQ series feed pulverizers, MFJ series mushroom and wood pulverizers, MBJ series wood chipper, MPJ series wood chip machine, DJM series multi-functional sawdust machine, WBC series branch cutting machine, SWC series walking wood chipper, 9YF series baling machine, corn threshing machine, corn skinning machine, peanut shelling machine, biomass pellet machine, supporting power, and various feed processing machinery, agricultural, garden, livestock and breeding machinery, etc.
