The principle is simple. Inside the crushing chamber, hammers shatter the grain against the screen. On the same rotor shaft, just behind the chamber, a fan disc carries a set of steel impeller blades — the vane plate. As the shaft spins, these vanes create a steady suction that pulls the ground meal out of the chamber, up the vertical pipe and into the cyclone above. The number and angle of the vanes set the airflow: strong enough to lift the lightest maize flour the full height of the pipe, but balanced so whole grain is never drawn through the screen unground.

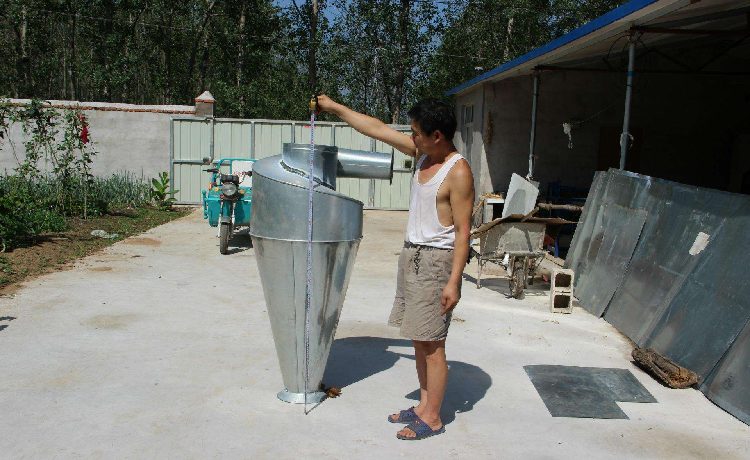

Inside the cyclone, the spinning air column throws the meal against the tapered wall. The meal loses speed, slides down and drops straight into the cloth collection bag, while the fine dust stays in the air stream and is caught in the bag filter at the bottom. A well-balanced vane plate keeps this flow continuous — no meal settling in the pipe, no blowback at the hopper, and a bag that fills cleanly hour after hour. Because the vanes work in a dusty air stream, they are made as a replaceable wear part: a new set restores full airflow in minutes.
The system is fitted across the Weiwei hammer mill line — from the 30-20 (3 kW, 400 kg/h) through the 40-20 (7.5 kW, 850 kg/h), 40-28 (11 kW, 1100 kg/h) and 40-36 (18.5 kW, 1400 kg/h) up to the 50-36 (22 kW, 1600 kg/h). Zhengzhou Weiwei Machinery Co., Ltd. has built feed and grain-processing equipment since 1980 under EU CE and ISO9001 certification, exporting to the Americas, Africa and Southeast Asia. For screen sizes, prices or a working video, contact admin@weiweimachinery.com or WhatsApp +86 19838691608.
