9ZP-1.5 Grass Chopper Straw Cutter Capacity 1.5-4t/h
  • 9ZP-1.5 Grass Chopper Straw Cutter Capacity 1.5-4t/h
  • 9ZP-1.5 Grass Chopper Straw Cutter Capacity 1.5-4t/h

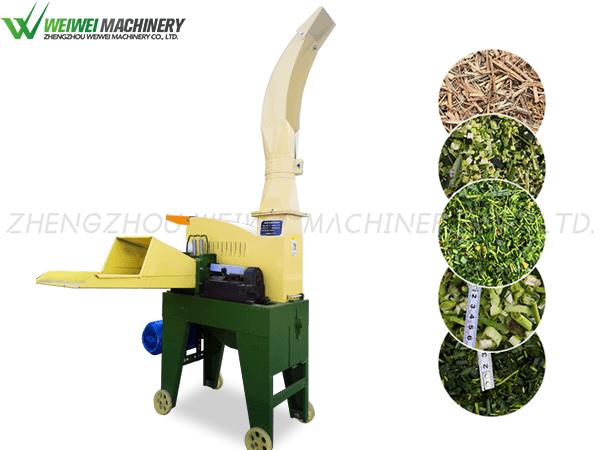

9ZP-1.5 Grass Chopper Straw Cutter Capacity 1.5-4t/h

Categories:chaff cutter
Capacity:1500kg/h
Power:2.7-3.0
Engine:
Applications:Cutting green and dry crop straws
Tel:0086-371-63283021
Email:admin@weiweimachinery.com
WhatsApp:+86 198 3869 1608
Applications

Animal feed cutting machine is used for rubbing corn straws, bean straws, cotton straws, pasture, many other crop straws.  At the same time both the hay straw cutting, kneading and crushing effect, It is used for raising cattle, sheep, horses, rabbits, chickens, ducks and all kinds of animals,suitable for different needs of animal breeding. It is applicable for ranches and specialized feeding households. Weiwei agricultural machinery has set more than 200 sales outlets in more than 30 provinces, cities and municipalities. Our products are exported to Romina, America, Pakistan, Malaysia, Columbia,and other 40 countries, User feedback is good .


parameter

model

9ZP-1.5

9ZP-1.8

capacity(t/h)



chaff

1.5

1.8

straw

1.4

1.5

corn straw

1.5

1.8

silage

4

4

blade quantity

3

4

6

3

4

6

cutting length(mm)



long

45

34

20

45

34

20

medium

27

20

12

27

20

12

short

16

12

5

16

12

5

matched power(kw)

2.7-3.0

2.7-3.0

main shaft speed(r/min)

795

795

blowing distance(m)

3-5

3-5

weight(kg)

80

85

90

90

95

100

external dimension(mm)



using size

transportation size

using size

transportation size

length

925

625

1000

700

width

1085

325

1095

335

height

1970

1070

2030

1130


principle

The machine used for cutting green (dry) corn stalks, straw and other crop stalks and forage. by the motor as a supporting power, the power transmission to the spindle, the other end of the spindle gear through the gear box, universal joints, etc. It will be passed through the speed of power transmission to the pressure roller, when the material get into be processed into the upper and lower pressure roller, Holding and at a certain rate into the cutting mechanism, the high-speed rotation of the cutter after cutting, the grass is thrown out of the machine by discharge port.

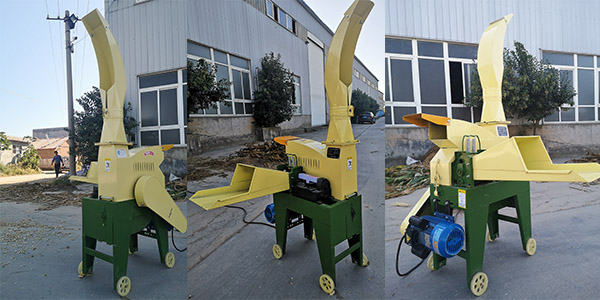

Grass chopper

This machine has beautiful appearance, with full steel body, thick steel, coated by baking varnish craft, bright color, good durability, corrosion resistant, durable.

9ZP series products adopt automatic feeding device. The main frame, bracket and motor frame adopt combination of iron and steel structure, which enhance the stability of work, reduce noise too.

Cutting part adopt two,three, four, six groups plane oblique knife. Gear transmission enhances flexibility and service life, reduce grass resistance, increase the grass feed quantity, reduce noise and improve the production efficiency.

cattle feed

Our machines will be tested before they leave the factory to ensure the quality of service and ensure that all parts properly qualified,make sure it works properly。All parts of our studio are equipped with static balancing equipment. After debugging and installation then commissioning , the power balance adjustment ensures that the machine runs with low noise, stable machines and long service life.

Detail

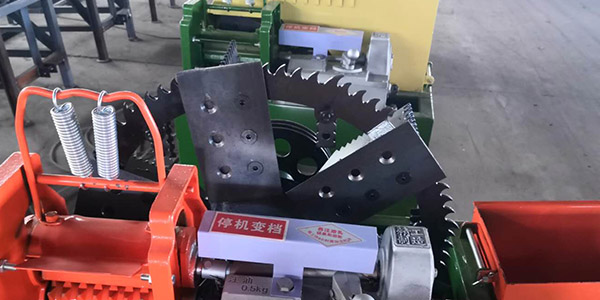

1.Blades

65# manganese steel blade with double-sided serrated knife, Serrated blades available use on both sides , and when the side is worn out, the user can turn to replace the part, but can not change the blade position transformation, user can only turn to the original position, in order to ensure the static balance and stability.cutting and grinding the feed, improve the crushing rate at the same time.

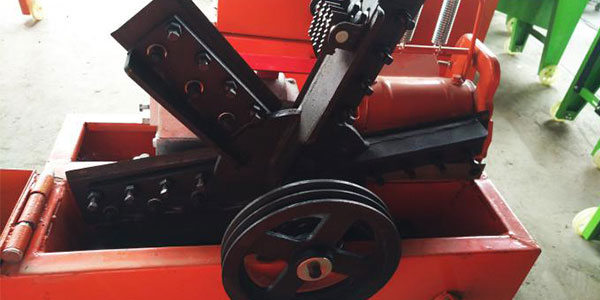

2.Hammers

Multi-hammer design increases the degree of material fragmentation.When the saw tooth hammer wear without edges, the user can turn the hammer replacement, but can not replace each other , can only change to the original position, so as not to affect the rotor balance .


3.The new type of hay cutter, newly added the middle discharge port and knife disc wind wheel。



This product is an improvement on our popular product .Used for crushing corn straws, bean straws, cotton straws, pasture, many other crop straws.


4.Our company developed a special structure based on customer feedback.The comb grass device makes the grass part uniformly feed without winding, keep same cutting length of grass and increase the rate of crushing grass .

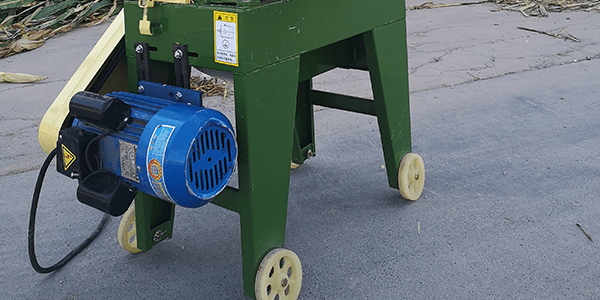

Engine can select and configure according to local situation of the user。Three engine for choose ,electric motor ,diesel engine ,gasoline engine。

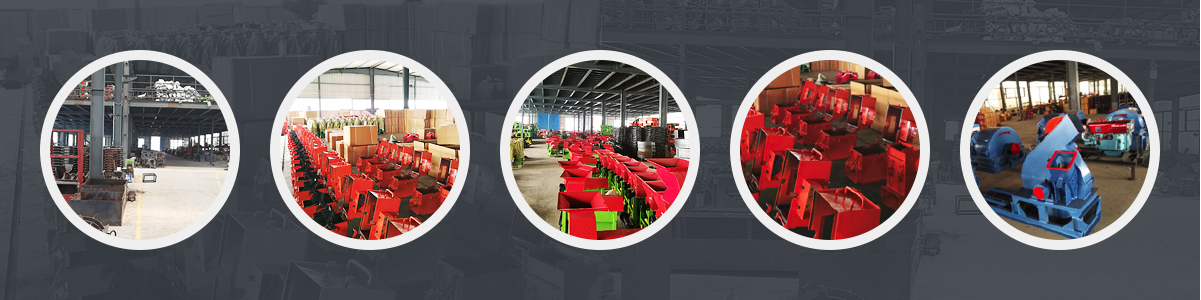

Product Details and Packaging
