The raw materials consist of various grain particles and feed additives. They are widely used in the production of feed for small and medium-sized farms as well as for domestic breeding of animals such as chickens, ducks, pigs, cattle and sheep, thereby reducing the cost of farming.
parameter
| Model number |
9KLP-150 |
| Standard power configuration (kw) |
3-3.5 |
| Output (kg/h) |
70-120 |
| Weight (kg) |
88 |
| Usage dimensions (mm) |
1050*320*850 |
| Shipping dimensions (mm) |
1050*320*650 |
| Box packaging dimensions (mm) |
1050*400*700 |
principle
The motor drives the roller via gearbox and shaft; feed falling onto the die plate is gelatinized by friction heat, then pressed into the die holes to form cylindrical pellets that are cut to length by the cutter on the main shaft and flung out centrifugally to the outlet.
Detail
The 150-type rear axle model flat die granulator of Zhengzhou Weiwei Machinery is a small-scale feed pelletizing equipment developed for family farmers and small and medium-sized livestock farms. The machine uses the car rear axle differential as the core reduction transmission unit, featuring a compact structure, convenient movement, low failure rate, and simple maintenance. The core components (press die, press roller) are made of high-quality steel and undergo heat treatment, ensuring durability and wear resistance. The flat die can be quickly replaced, with available diameters of 3/4/5/6/8mm for the die holes, allowing for easy adaptation to different livestock and materials. Whether it's fine feed such as corn and soybean meal, or coarse feed like straw and hay powder, it can form stable pellets, making it an ideal choice for cost reduction and efficiency improvement as well as self-prepared pellet feed.
Product Details and Packaging
Product Advantage

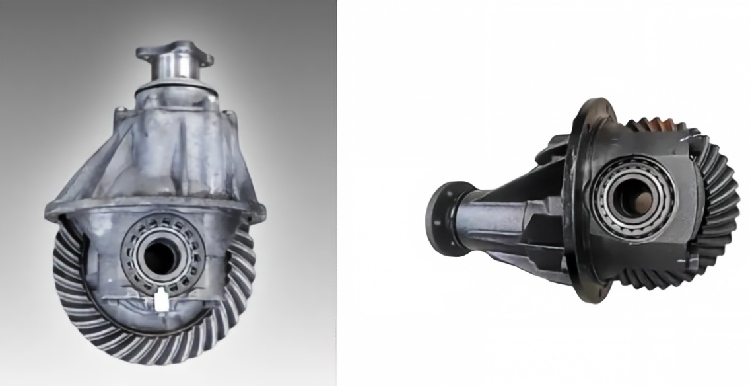

1.The automotive differential gear is more durable, stable in transmission, resistant to congestion, easy to maintain, and is more suitable for long-term heavy loads, thereby extending the lifespan of the machine.

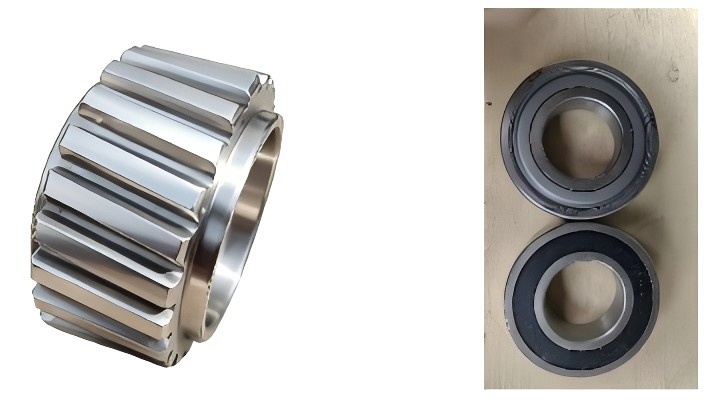

2.The pressing wheel is made of chromium-manganese steel and undergoes quenching treatment. It is highly wear-resistant and heat-resistant, resulting in a longer service life. The bearings are equipped with double-layer sealing rings, which prevent dust from entering and extend the lifespan of the machine.

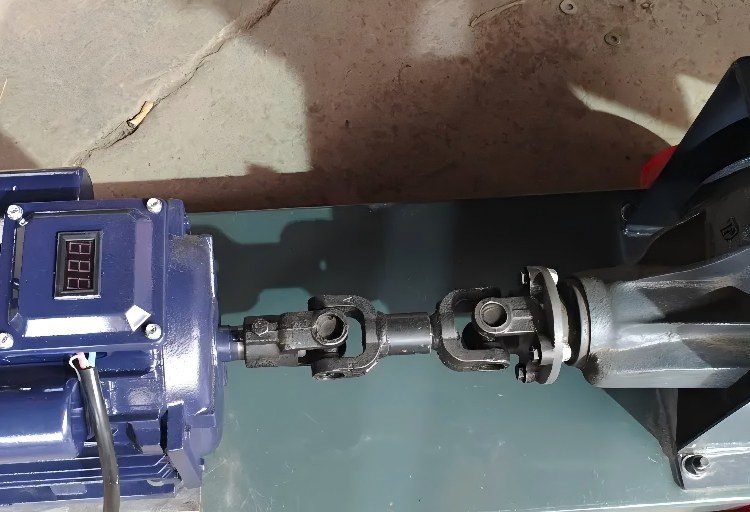

3.Soft connection installation is self-calibrating-free, the transmission does not slip, it is resistant to vibration and eccentricity, and the operation is more stable. In the case of blockage, it can better protect the motor, reduce noise and sound insulation, and is easy to disassemble and assemble.

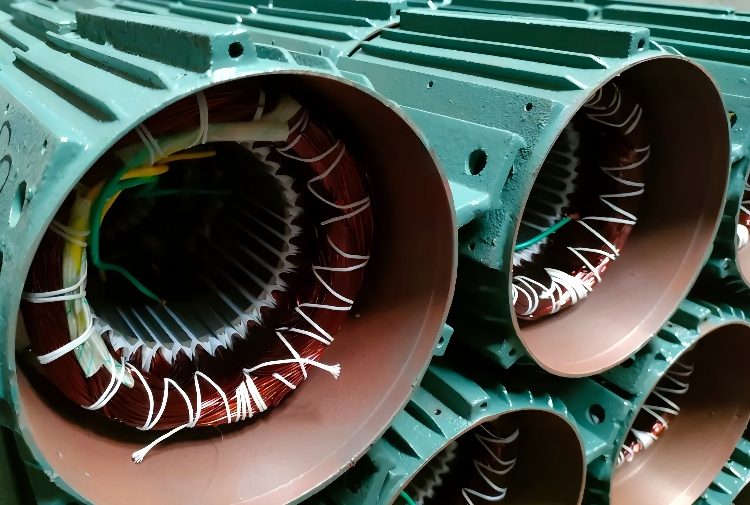

4.Using pure copper motors, it saves electricity and is energy-efficient. It is durable with a long service life, has sufficient power and large torque, and is convenient for maintenance and repair.

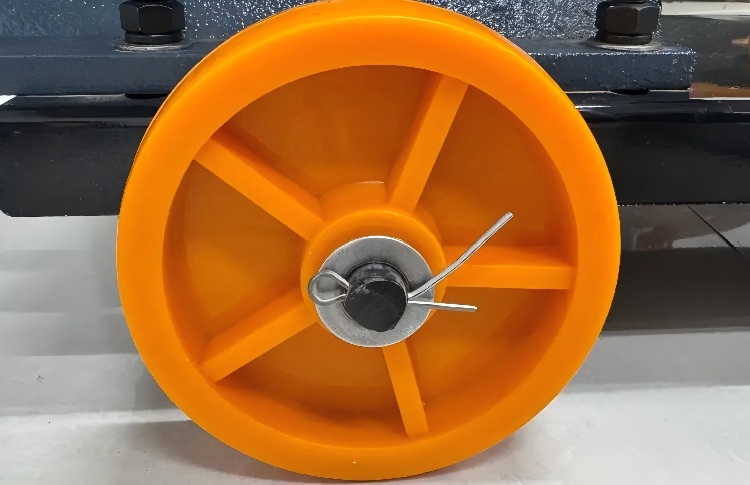

5.Made of nylon, it has high hardness and strong wear resistance. When pushed and pulled on cement or gravel surfaces for a long time, it is unlikely to be worn or cracked. Its lifespan is longer than that of ordinary plastic wheels.The nylon wheels are lightweight, making them easy to move and operate with less effort.
product packaging
Customizable cardboard packaging, export wooden packaging.
Factory and more information
Our company is located in the western suburbs of Zhengzhou City, the capital of Henan Province. It is 3 kilometers north of the Xingyang exit of the Kaoluo Expressway. We started production in 1980, covering an area of over 10,000 square meters. Our annual production capacity is 40,000 to 50,000 units. We are a company integrating research, design, manufacturing and sales, and have the right to handle import and export independently. We mainly engage in technological research and promotion in the field of mechanical equipment. Our main products include: 9ZP series hay cutters, 9ZF and 9ZR series hay choppers and pulverizers, 9FQ series feed pulverizers, MFJ series mushroom and wood pulverizers, MBJ series wood chipper, MPJ series wood chip machine, DJM series multi-functional sawdust machine, WBC series branch cutting machine, SWC series walking wood chipper, 9YF series baling machine, corn threshing machine, corn skinning machine, peanut shelling machine, biomass pellet machine, supporting power, and various feed processing machinery, agricultural, garden, livestock and breeding machinery, etc.
