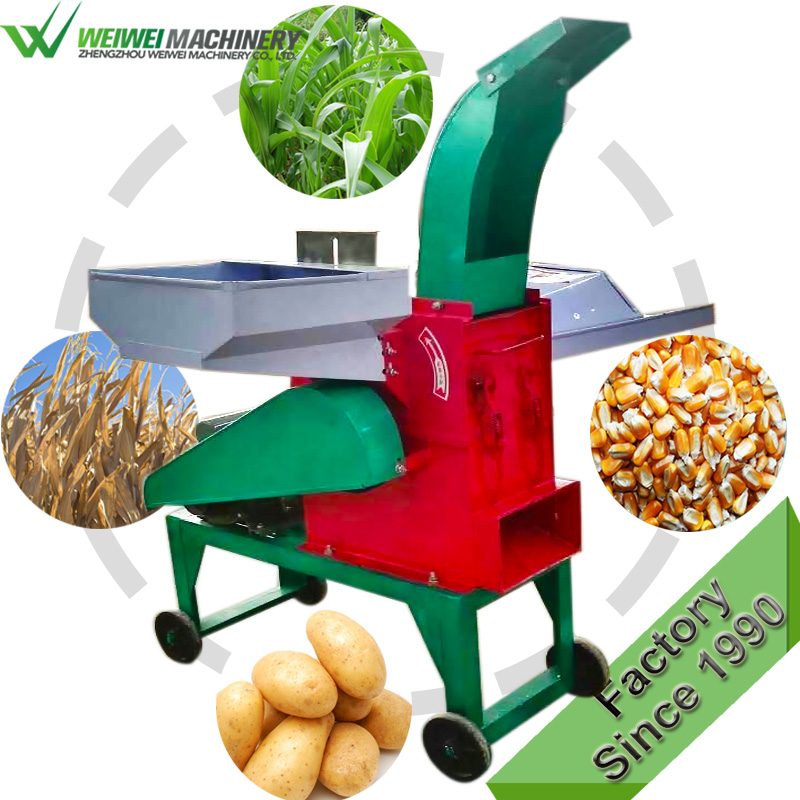

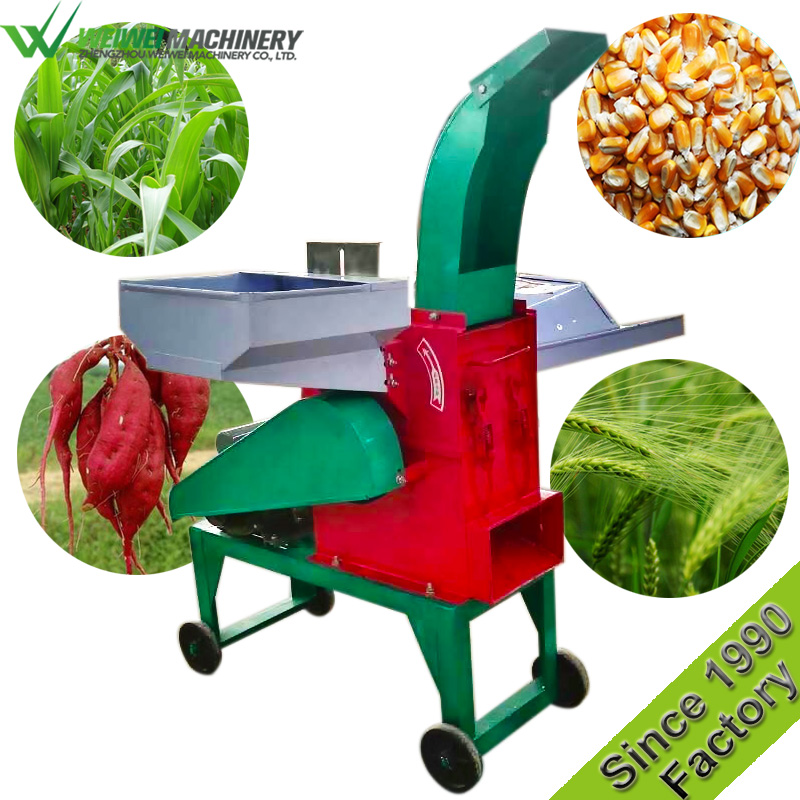

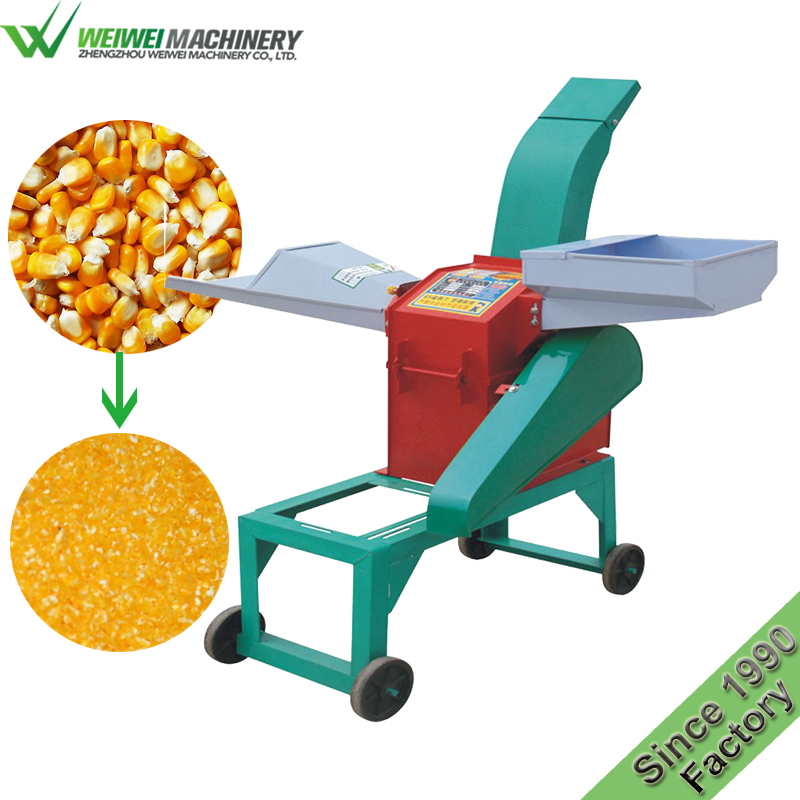

9ZF400-24C Weiwei cheap price gasoline hammer mill grass chopper machine price
  • 9ZF400-24C Weiwei cheap price gasoline hammer mill grass chopper machine price
  • 9ZF400-24C Weiwei cheap price gasoline hammer mill grass chopper machine price
  • 9ZF400-24C Weiwei cheap price gasoline hammer mill grass chopper machine price
  • 9ZF400-24C Weiwei cheap price gasoline hammer mill grass chopper machine price

9ZF400-24C Weiwei cheap price gasoline hammer mill grass chopper machine price

Categories:chaff cutter
Capacity:400-600KG/H
Power:3KW/6-8HP
Engine:Electric ,diesel engine ,gasoline engine
Applications:This small hammer mill mini chaff cutter from Weiwei Machinery can be used to grind all kinds of wet and dry straws, and the crushed grass powder can be used to feed poultry, cattle and sheep, as well as corn kernels, soybeans and other grain crops, some
 Download
Tel:0086-371-63283021
Email:admin@weiweimachinery.com
WhatsApp:+86 185 3090 9157

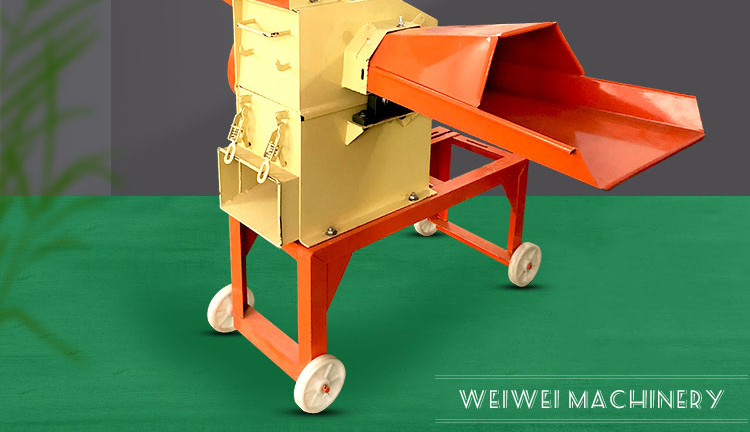

Animal feed cutting machine is used for rubbing corn straws, bean straws, cotton straws, pasture

grass cuttersorn silge machinemany other crop straws.  At the same time both the hay straw cutting, kneading and crushing effect, It is used for raising cattle, sheep, horses, rabbits, chickens, ducks and all kinds of animals,suitable for different needs of animal breeding .It is applicable for ranches and specialized feeding households. Weiwei agricultural machinery has set more than 200 sales outlets in more than 30 provinces, cities and municipalities. Our products are exported to Romina, America, Pakistan, Malaysia, Columbia,and other 40 countries., User feedback is good .

parameter

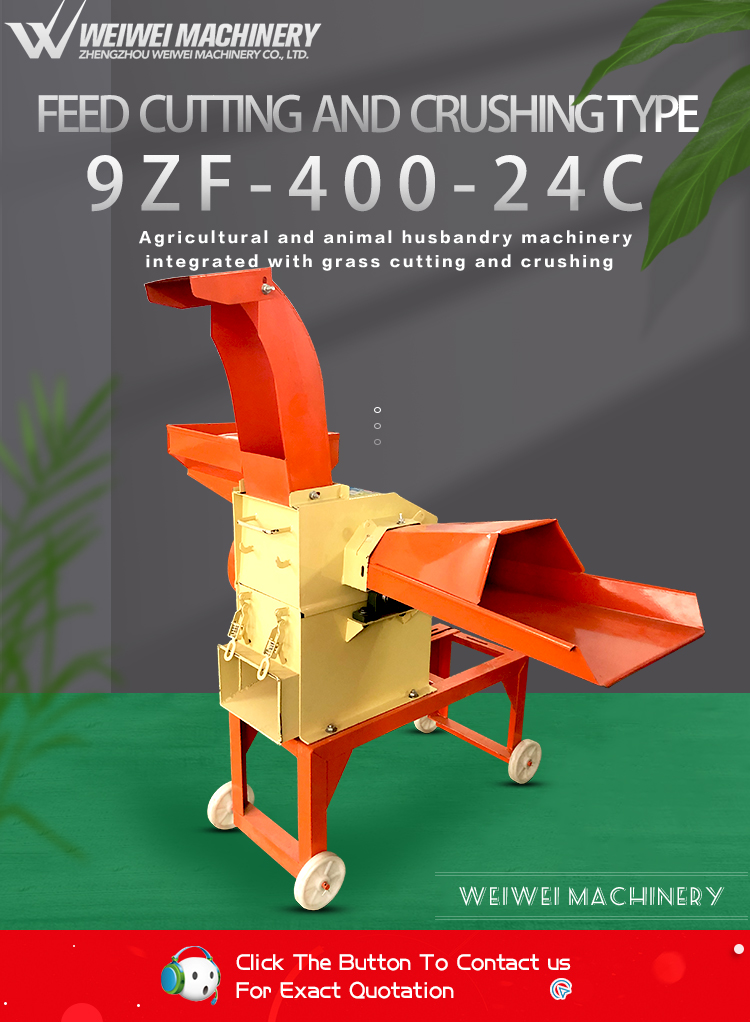

    Model 9ZF-400-24C
    Application  9ZF Series grass cutting and crushing grain grinding machine
    Voltage Customized
    Power 2.2-3.0KW(Tell us the hertz of your country's voltage )
    Capacity 400-600kg/h
    Weight 70kg
    Blade quantity 10 pieces triangle knives  2 fan blades 24 hammers
    Cuting effect length silk or powder effect and other size according to screen mesh
    Motor speed 3100r/min
    Cutting machine size(L*W*H)mm 1180*1090*1040mm
   Screen mesh  3.0mm (the diameter of sieve hole can be customized)
    Power Electric motor/gasoline engine/diesel engine
   Qty of hammers 24 hammers

principle

Our 9zf/9fq series animal feed processing machine is a grass cutting and crushing agricultural machinery, the users can according to different occasions, different yield and forage size, different animal feeding options select the grass grinder machine.

When the machine is running , the material is processed from the hopper into the crushing chamber, which is broken by the blow of the high-speed rotating working parts. At the same time change the the material movement direction.Because of the high speed rotation of working parts, the material layer is destroyed, the material is moving with the rotor. In this process, due to the repeated collision of forage or particles by working parts and the body friction, the the material is crushed to geometric diameter smaller than mesh diameter. Under the action of centrifugal force and air flow, crushed material through the sieve hole leak into the powder chamber, which can be discharged from outlet, the cutting forage can be sprayed from top discharge port.

Detail

This feed mill has beautiful appearance, with full steel body, thick steel, coated by baking varnish craft, bright color, good durability, corrosion resistant, durable .
design of grass cutting machine is unique and novel, high stability, safe work and low noise, long service life

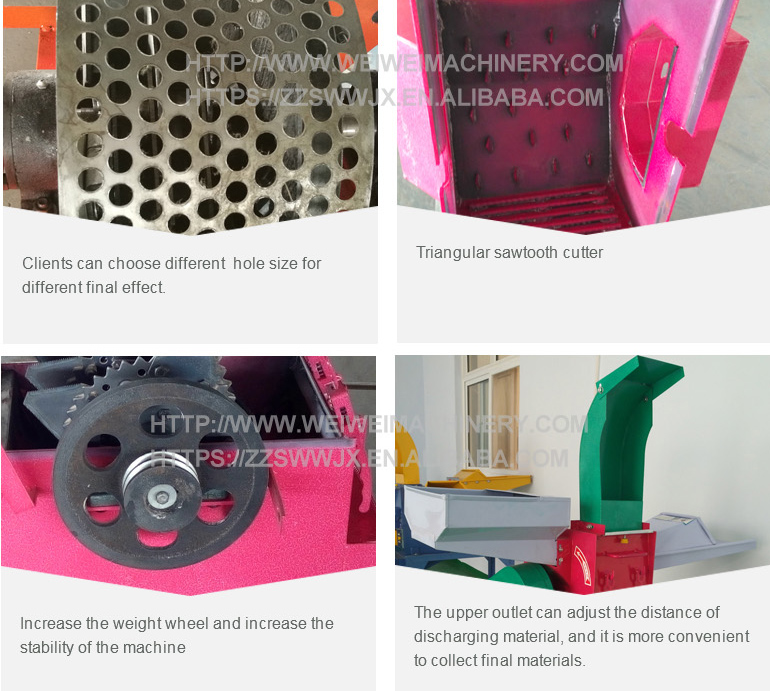

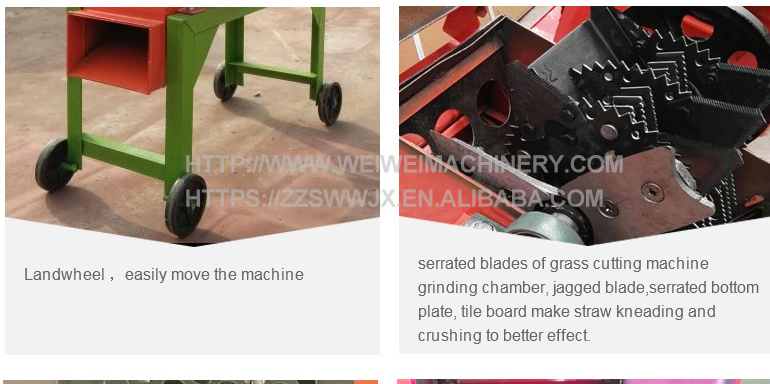

1.65# manganese steel blade with double-sided serrated knife, Serrated blades available use on both sides , and when the side is worn out, the user can turn to replace the part, but can not change the blade position transformation, user can only turn to the original position, in order to ensure the static balance and stability.cutting and grinding the feed, improve the crushing rate at the same time.

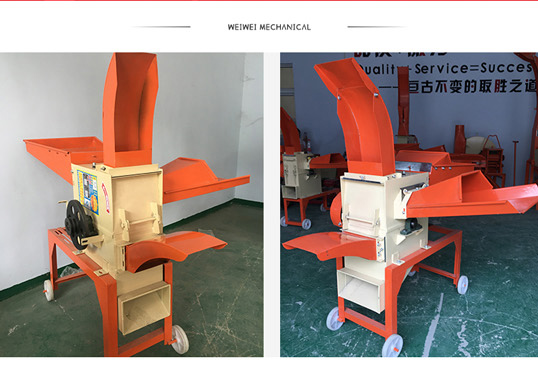

Product Details and Packaging

Weiwei feed grinder machine with Low noise, low fuel consumption, sufficient power, easy maintenance, wide application, energy saving and environmental protection,low failure rate.

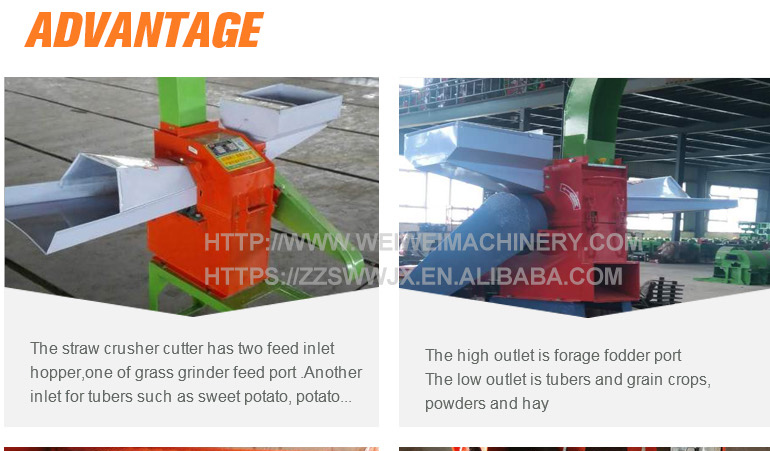

The chaff cutter machine for agriculture has three inlets and outlets which are separated by baffles. The user can choose the switch of the baffles freely according to the feeding raw materials. The high spout outlet is generally used for discharging forage, the low spout outlet is generally used for discharging tubers, grain powder and hay, the parallel feeder is used for feeding forage plants and other raw materials, and the square feeder is used for feeding grains
chaff cutter machine for agriculturechaff cutter machine for agriculturechaff cutter machine for agriculture

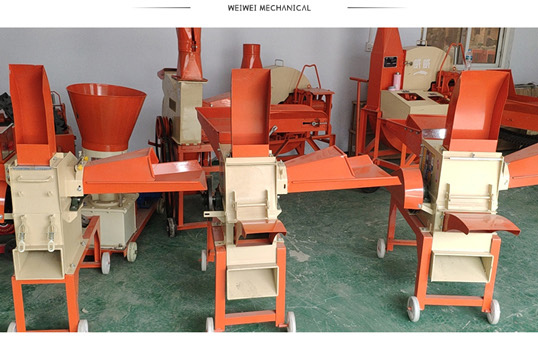

Factory and more information


Zhengzhou weiwei machinery co.ltd .is a professional manufacturer with 30 years experience in agricultural machinery manufacturing .factory was established in 1980, plant area of more than 10 thousand square meters, more than 200 staff and more than 20 technical personnel to ensure product quality and delivery.
