9ZP-0.4V Square Radish Chopper Cattle Feed Machine
  • 9ZP-0.4V Square Radish Chopper Cattle Feed Machine
  • 9ZP-0.4V Square Radish Chopper Cattle Feed Machine
  • 9ZP-0.4V Square Radish Chopper Cattle Feed Machine
  • 9ZP-0.4V Square Radish Chopper Cattle Feed Machine

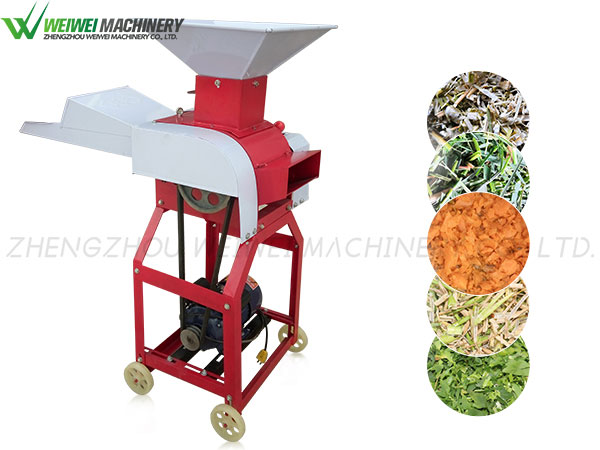

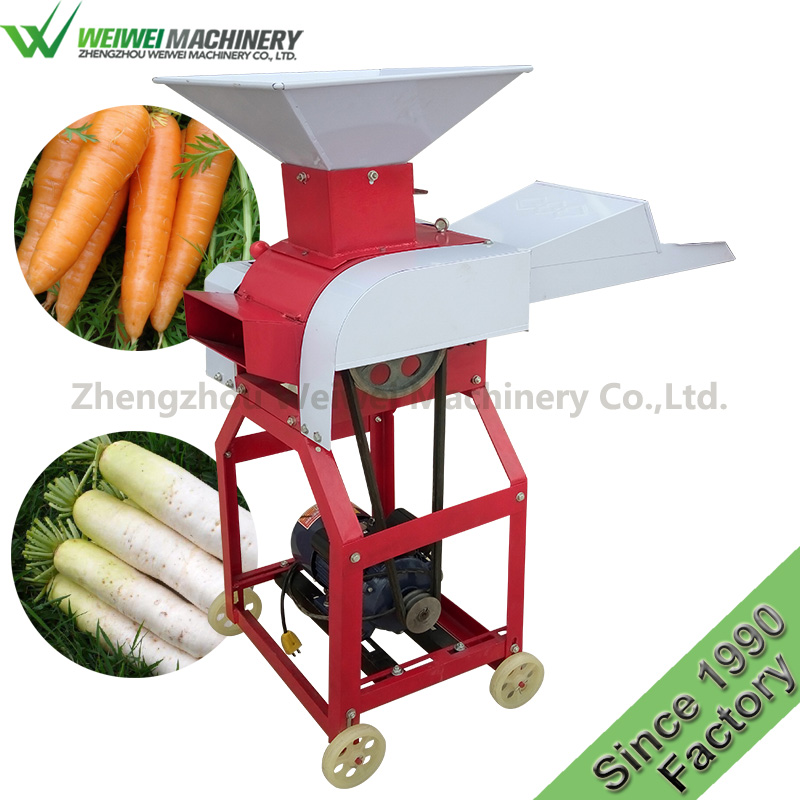

9ZP-0.4V Square Radish Chopper Cattle Feed Machine

Categories:chaff cutter
Capacity:400-1200kg/h
Power: 2.2-3KW
Engine:
Applications:feed machines,tuber chaff cutter
Tel:0086-371-63283021
Email:admin@weiweimachinery.com
WhatsApp:+86 185 3090 9157

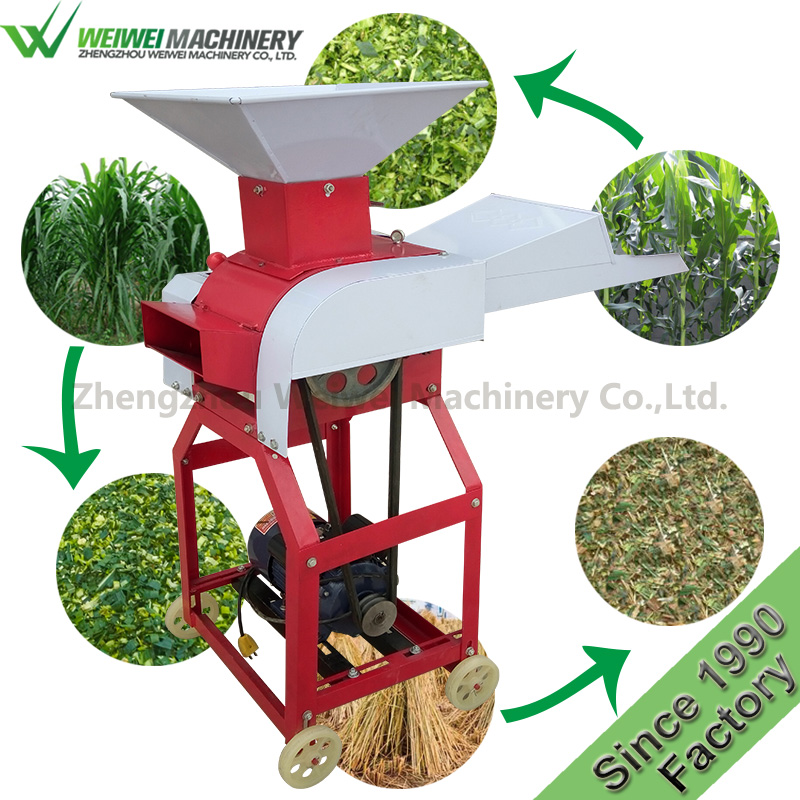

Applications

The hay cutter is an advanced animal feed processing machinery, the vegetable cutting machine is a customized multifunctional hay cutter

adding a square tubers cutting part .the chaff cutter machines can cut all kinds of plant material, various kinds of green, dry corn straw, rice straw, sweet potato vine, tuber plants, vegetables and many other stalks crop straw and forage grass


parameter

Items

9ZP-0.4

9ZP-0.4A 9ZP-0.4V
matched power(kw) 2.2-3 2.2-3 2.2-3
motor speed(r/min) 2800 2800 2800
main shaft speed(r/min) 950 950 950
machine weight(kg) 50 52 58
capacity(kg/h) 400-1200 400-1200 400-1200
matched belt A1200-1219 A1200-1219 A1200-1219
external dimensions(mm) 1085*470*850 1085*470*850 1055*920*875

detail

principle

Main Features

The machine used for cutting green (dry) corn stalks, straw and other crop stalks and forage. by the motor as a supporting power, the power transmission to the spindle, the other end of the spindle gear through the gear box, universal joints, etc. It will be passed through the speed of power transmission to the pressure roller, when the material get into be processed into the upper and lower pressure roller, Holding and at a certain rate into the cutting mechanism, the high-speed rotation of the cutter after cutting, the grass is thrown out of the machine by discharge port.

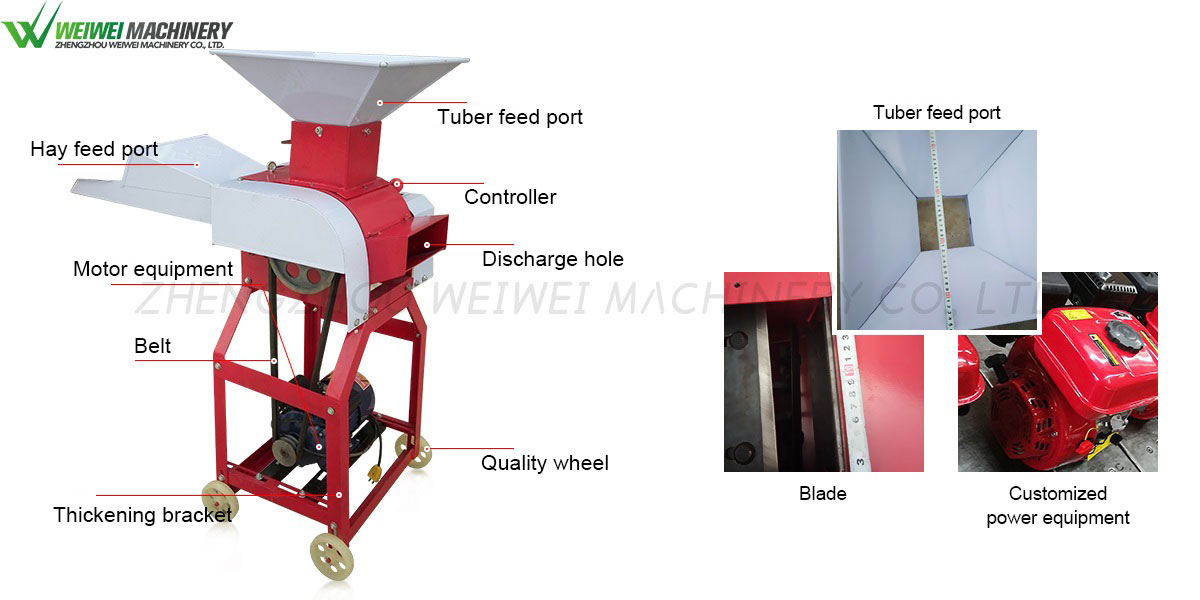

Detail




1.Moving Blades

The cutter head is welded by thickened steel plates and is durable. Increased inertia during operation, saving power, high efficiency. Blade widening thick, 65 manganese steel material, after heat treatment special processing technology, with a sharp wear-resistant long life characteristics, and the blade in the assembly, the knife and set knife to maintain a certain slope, thereby reducing the grass resistance, Productivity.


2.Gear lever

The shift lever can adjust the length of hay, grass cutting length of about 1.7cm or 3cm.

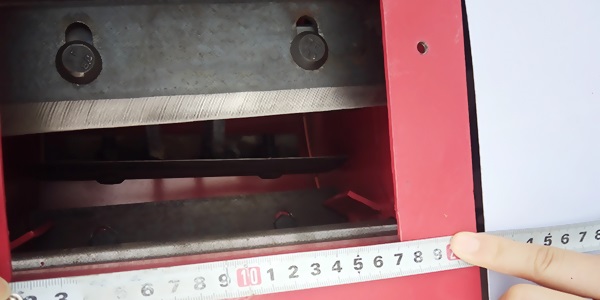

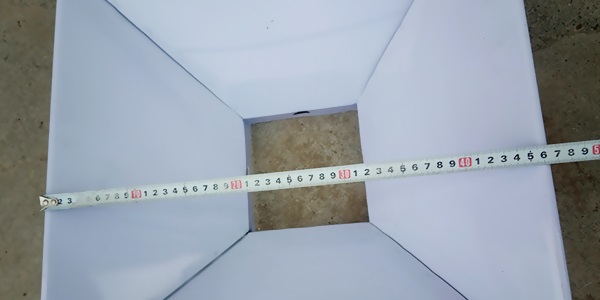

3.Square feeding hole

adding a square tubers cutting part .the chaff cutter machines can cut all kinds of plant material, various kinds of green, dry corn straw, rice straw, sweet potato vine, tuber plants, vegetables and many other stalks crop straw and forage grass

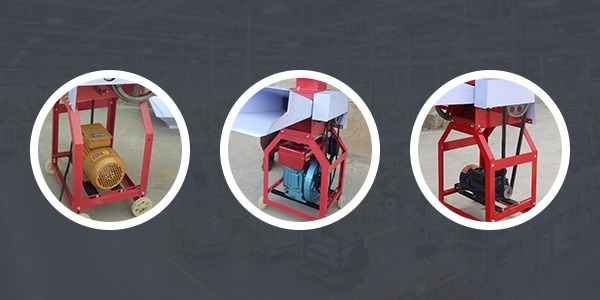

4.Engine

Three types engine for choice ,gasoline engine ,diesel engine ,and electirc motor .

The machine is equipped with a motor frame, power equipment installation more convenient, full steel body, paint process, product stable atmosphere, small size, high yield, product specifications have multiple choices, can customized automatic feeding device, suitable for the different needs of users

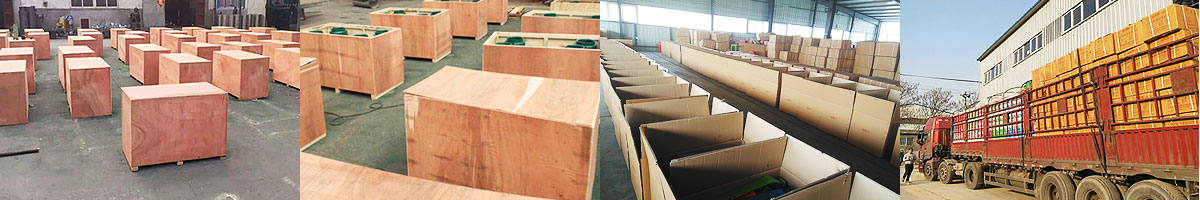

packaging
