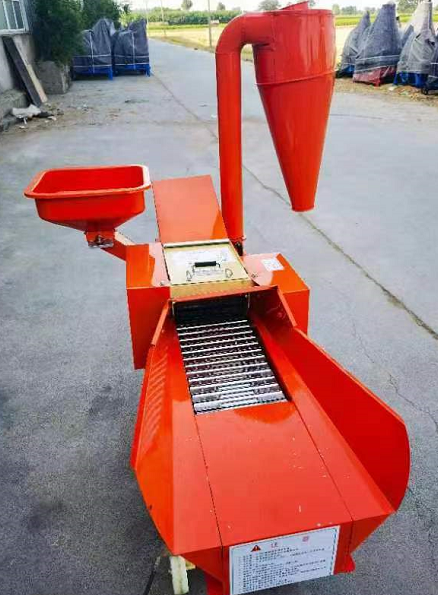

weiwei9ZRF-2.8t forage lawn mower and grain crusher, livestock lawn mower, elect

Categories:chaff cutter
Capacity:3t/h
Power:3-4kw
Engine:Electric ,diesel engine ,gasoline engine
Applications:Agriculture, Industry, Animal Husbandry, Animal Husbandry, Breeding, Factory
Tel:0086-371-63283021
Email:admin@weiweimachinery.com
WhatsApp:+86 185 3090 9157
This machine is suitable for feeding rabbits, cattle, sheep, horses, chickens and ducks, and other livestock and poultry.

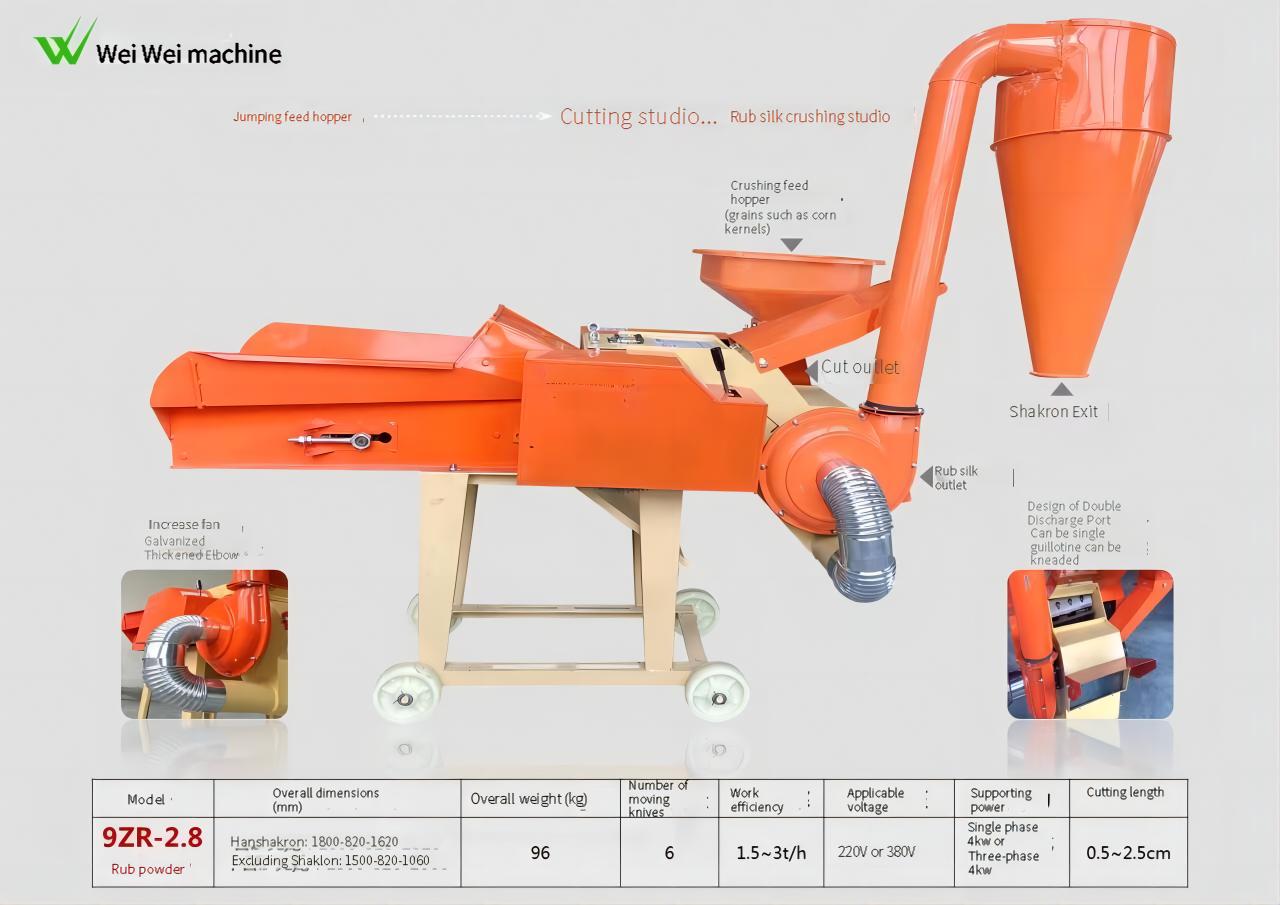

parameter

Weight: 96kg
Power: 4kw
Output:1-2.8t/h
Size (with saxophone): 1800*820*1620 mm
Size (without saxophone): 1500*820*1060 mm
Transport size: 1500*550*950 mm
Number of moving knives: 6
Number of hammer blades: 40
Number of sieves: 3
Grass cutting length: 0.5-2.5cm
Motor speed: 2880r/min
Main shaft speed: 1280r/min


principle

The Chaff cutter is driven by motor(diesel or gasoline ),through the belt drive main shaft. The gear at the end of the spindle drives the other gears. Grass is pinched by roller and enters the crushing room, then it is crushed by the blades and hammers with high speed rotate, and finally blown out by the wind.

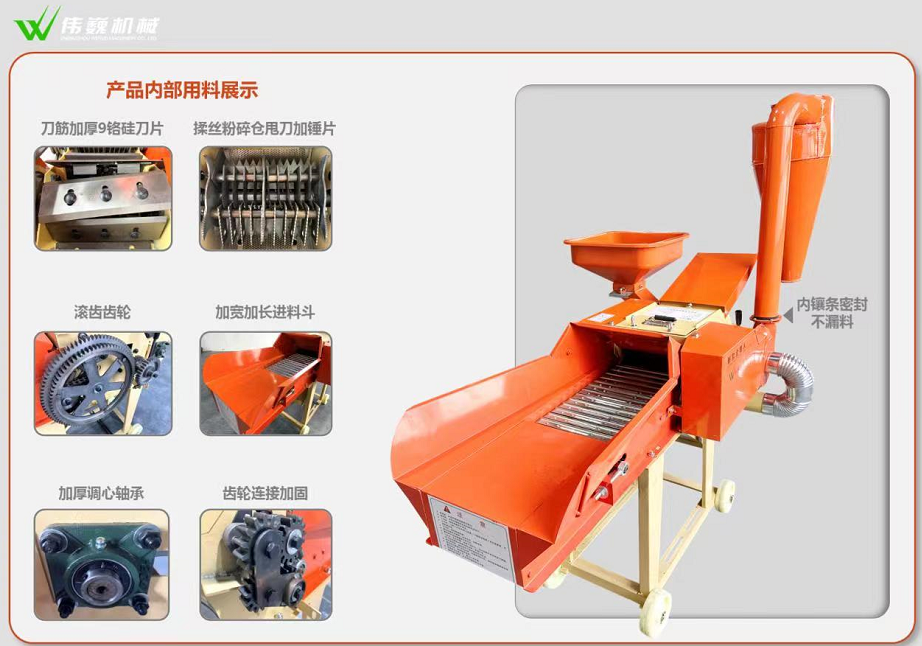

Detail


increase the dial roller, cut shorter and soft grass with more advantages, can comb grass, easy to cut
Large output, can choose 3.8-3 t and 5-6 t per hour

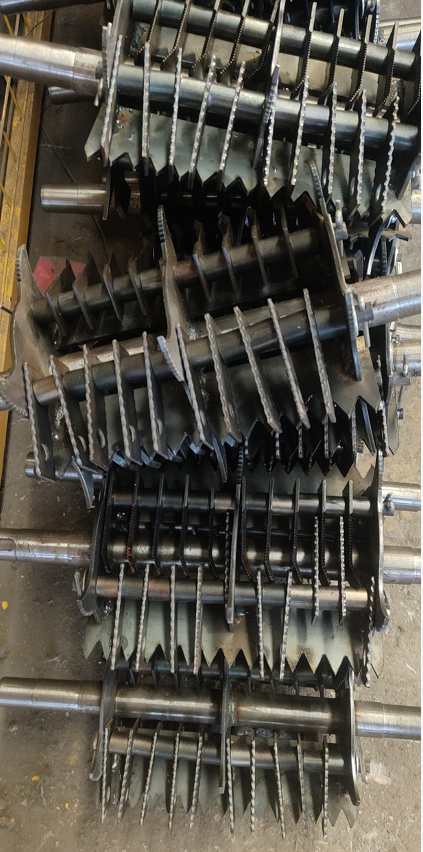

The secondary crushing hammer is added, and the crushed material is collided again to make the finished product finer.
The blade is made of Alloy high speed steel ,which greatly reduces the loss rate compared to the common blade.

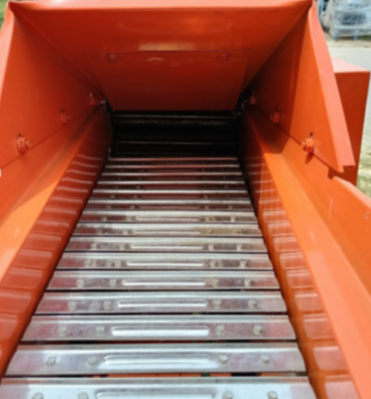

Automatic feeding port device, safer, more labor-saving, more output
GB gear, smooth transmission, low noise, high efficiency, long service life
design safety, protective cover effectively protect user safety
A new  Cyclone Collector device is added to crush grain raw materials, which is convenient for users to collect finished materials
Electric motors, diesel engines, gasoline engines can be matched, especially for areas lacking electricity, and the supporting power can be customized

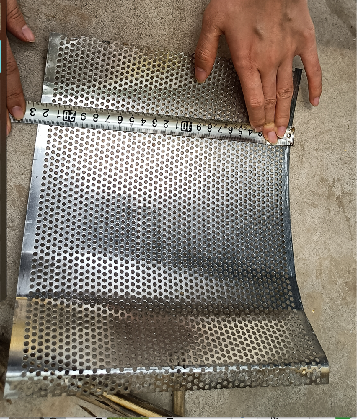

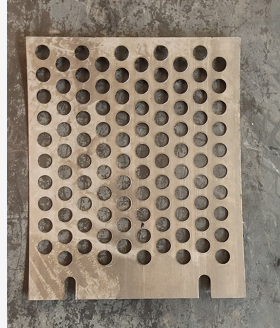

A new screen device is added. When crushing grains, screens of different sizes can be customized according to customer needs.
The baffle of the grass outlet can be adjusted, which is convenient for users to aggregate materials. Spray distance can be adjusted
The new design adds the lower slope grass ejection board. Compared with the other type of machines, the inclined grass ejection board will not cause the problem of forage accidentally splashing to the working part and affecting the working operation. The new safety device, Weiwei Machinery pays more attention to safe use than other companies

Product Details and Packaging

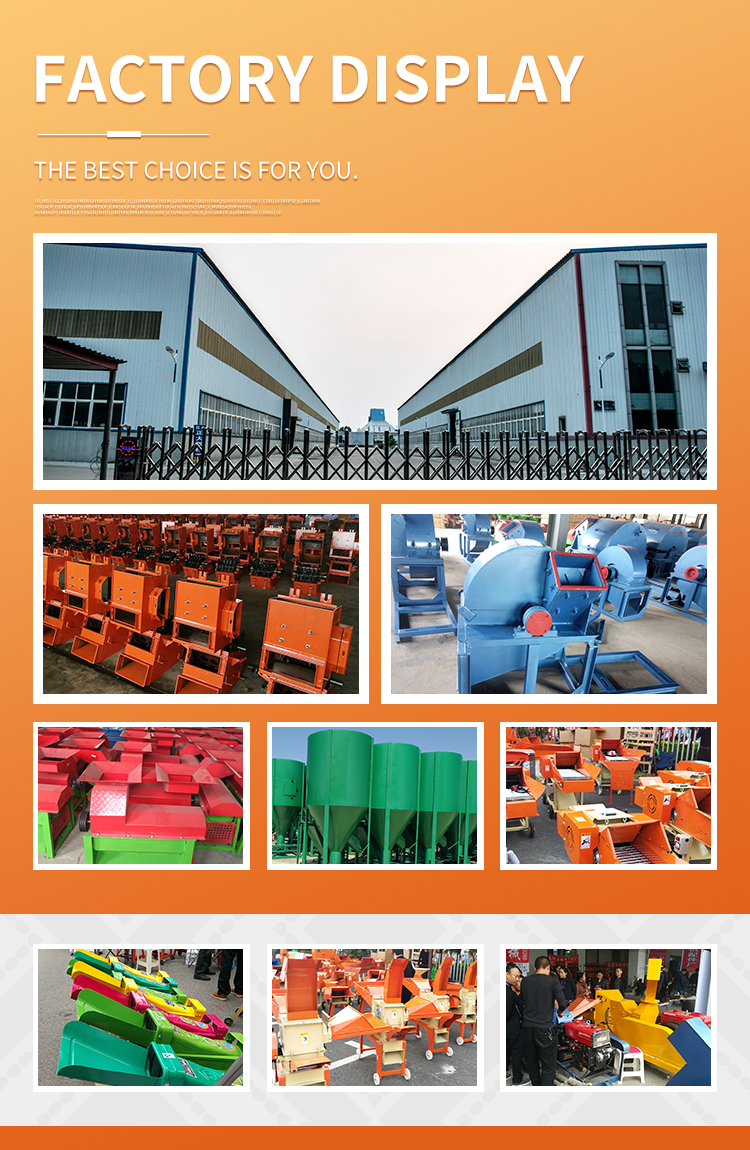

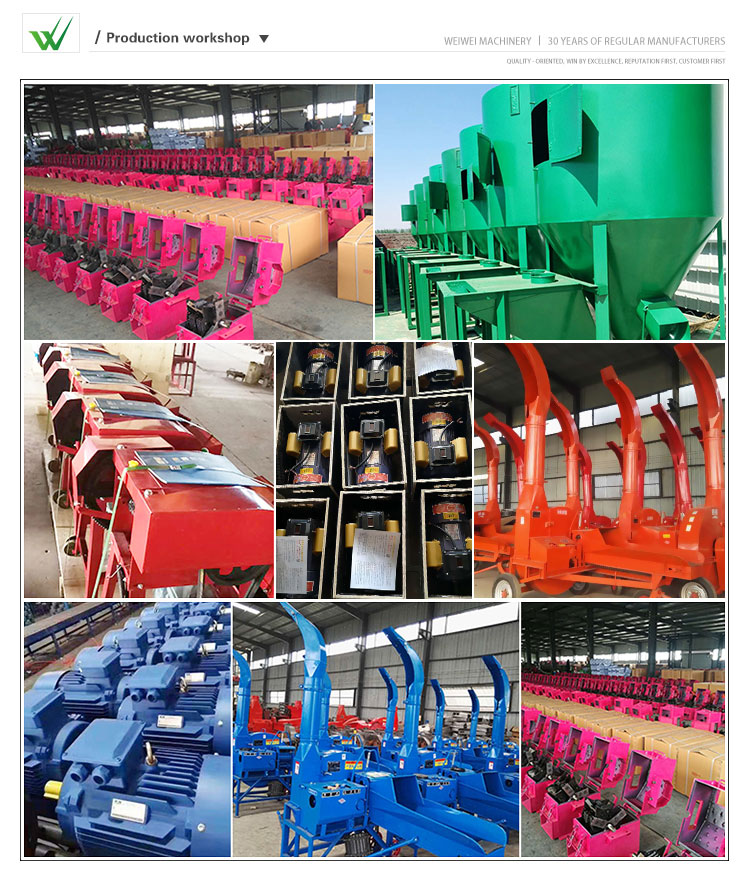

Factory and more information

Our company is located in the western suburbs of Zhengzhou City, the capital of Henan Province, 3 km north of Xingyang Station on the Kai-Luo Expressway, and was established in 1980 with an area of 10,000 square meters and an annual production capacity of 40,000 to 50,000 units. The company mainly produces: 9ZP series kushiage, 9ZF series grass grinder, 9FQ series feed grinder, MFJ series wood grinder, MBJ series wood chipper, MPJ series wood chipper, DJM series multi-functional wood grinder, 9YF series baler, corn thresher, corn ripper, peanut sheller, biomass pellet machine, supporting power motor, etc., and all kinds of The company has a wide range of agricultural, garden and livestock breeding machinery and equipment, including feed processing machinery. The company always pursues excellence, with high quality staff, strict quality assurance system and optimal management of the entire production process, to ensure our "high-quality projects". The perfect after-sales service system allows you to have no worries.
