weiwei solid-liquid separator, animal manure treatment machine, chicken manure s

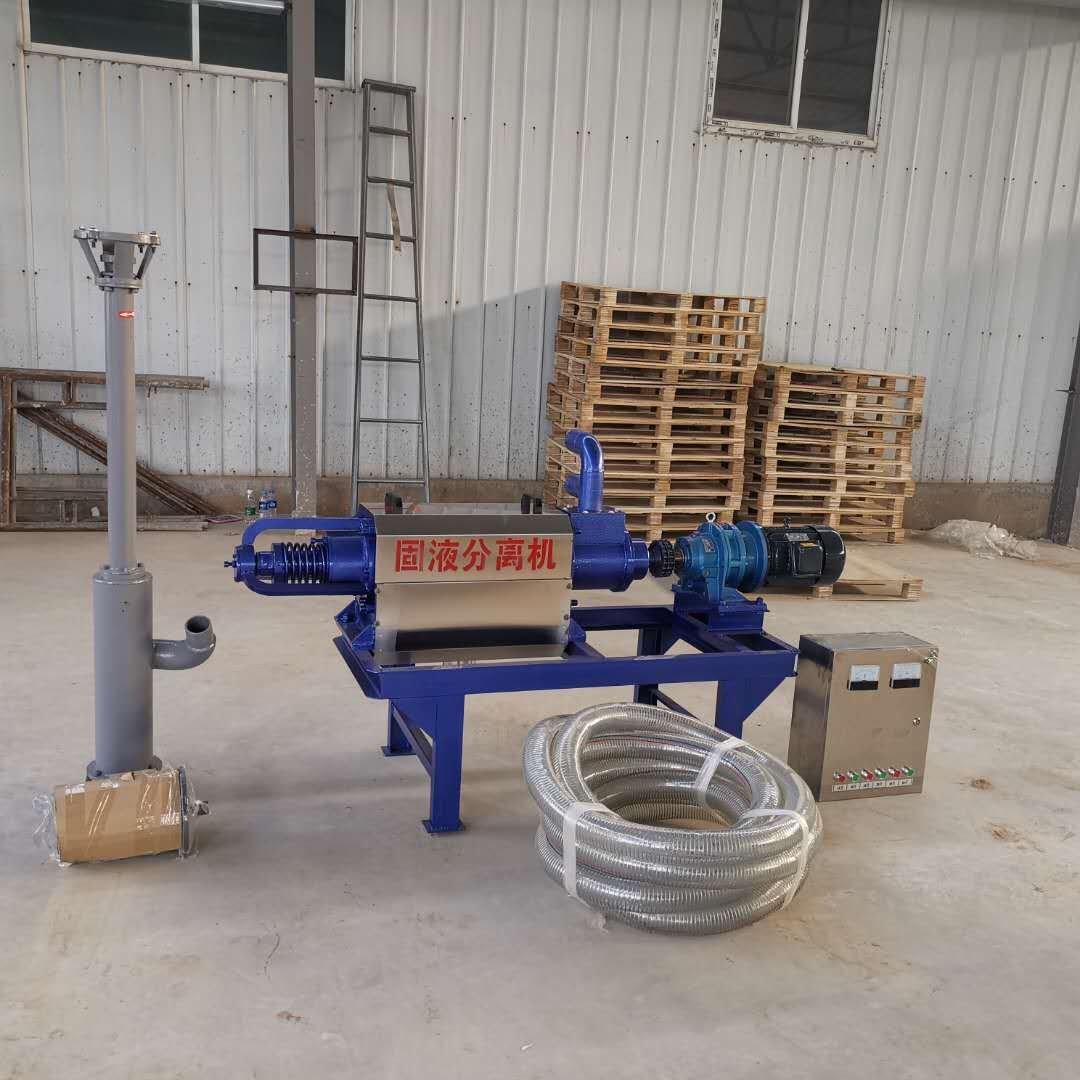

The solid-liquid separator is mainly used for the treatment of livestock manure. The livestock manure is first pumped into the solid-liquid separator using a non-clogging submersible pump matched to the machine, and then a screw conveyor gradually pushes the manure in. At the same time, the pressure at the front of the machine increases and the action of the side pressure belt filter forces the water in the material to be discharged through the screen. Out of the drainage pipe

parameter

型号	主机功率	抽粪泵功率	摆线针减速机	挤压主轴	每小时处理勲	整机	出料口直径	外形尺 'j'(mm)	适用
螺旋挤压180 型	4KW	2.2KW	4号	双螺旋术锈钢	10-15	360	180m m	长 2100 宽 700 高 1100	猪粪，鸿粪，牛粪

Model	Host power	Pumping pump power	Cycloid needle speed reduction machine	Extrude the spindle	Throughput per hour	The whole machine, the crew	Outlet diameter	Dimensions(mm)	apply
Screw extrusion 230 type	5.5KW	2.2KW	Number 5	Double helix stainless steel	25-30 cubic	470 kg	230mm	Length 2300, width 750, height 1200	Pig manure, chicken manure, cow manure

Model	Host power	Pumping pump power	Cycloidal needle reducer	Material	Throughput per hour	The whole machine is heavy	Outlet diameter	Form factor	apply
Oblique screen type 800	4KW	2.2KW	Number 4	Integral stainless steel	15-20 cubic	370 kg	150mm	Length 2150, width 1200, height 1500	pig manure, chicken manure, cow manure,

Model	Host power	Pumping pump power	Cycloidal needle reducer	Material	Throughput per hour	Total machine weight	Outlet diameter	Form factor	apply
Diagonal sieve type 1200	5.5KW	2.2KW	Number 5	Integral stainless steel	45-60	500 kg	210、 mm	Length 2650, width 1400, height 1500	Pig manure, chicken manure, cow manure

Model	Host power	Pumping septic pump n	Cycloidal needle reducer	Material	Throughput per hour	The whole machine is heavy	Outlet diameter	Form factor	apply
Oblique screen type 1600	7.5KW	4KW		Roll body stainless steel	65-80 ♦ 6	650 km >1	230mm	Length 3100 Width 1500 Height 1600 -	pig manure, chicken manure, cow manure,

principle

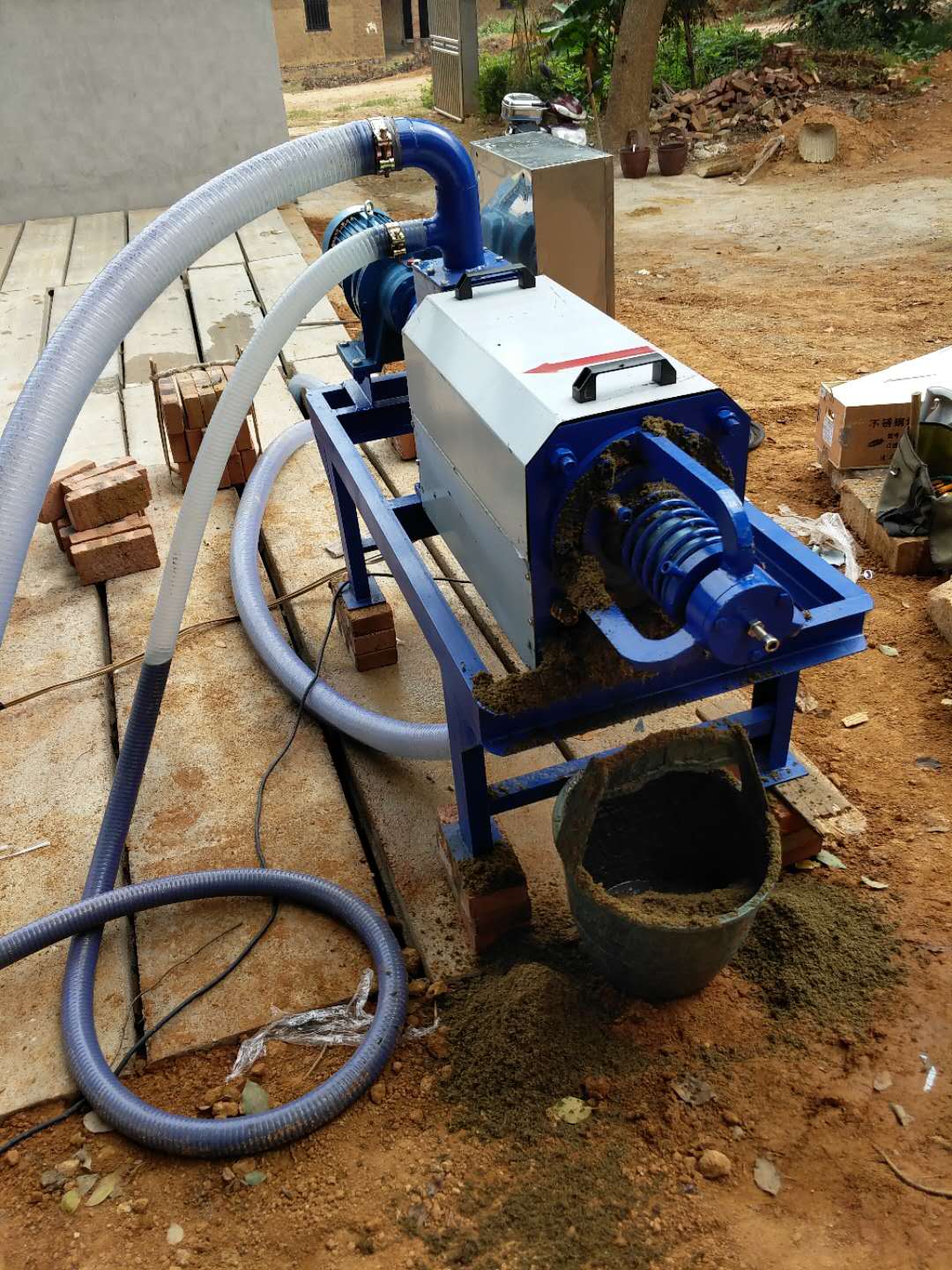

Firstly, a non-clogging submersible pump is combined with a solid-liquid separator to lift the livestock manure water to the solid-liquid separator.

The manure is then gradually pushed to the front of the machine by a winch. At the same time, the rising pressure at the front of the machine pushes the water in the material through the mesh screen below. Under side pressure and filtration it flows out of the drain.

The solid-liquid separator works continuously, the manure is continuously sucked into the solid-liquid separator and the pressure at the front of the machine rises continuously. After reaching a certain height, the discharge opening is opened, squeezing the discharge opening and pushing to achieve the discharge target.

Detail

The main components of the solid-liquid separator: the screen, the spiral strand and the spiral blade are made of high-quality 304 or 321 stainless steel and specially processed alloys, which have the advantages of corrosion resistance and wear resistance. The life span is 2-3 times longer than other similar products.

Main features of the solid-liquid separator.

This machine has small volume, low rotational speed, small footprint, high automation, simple operation, easy maintenance, large daily processing capacity and low power consumption, suitable for you. For continuous operation. The weight of the machine is about 0.5 tons, the overall volume is small, and the four legs are equipped with wheels for easy transportation, which can greatly improve the efficiency of chicken manure dewatering.

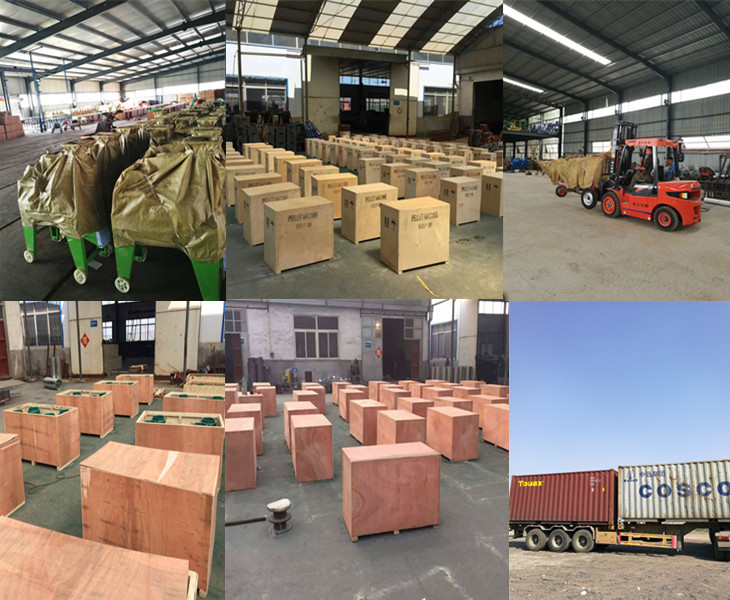

Product Details and Packaging

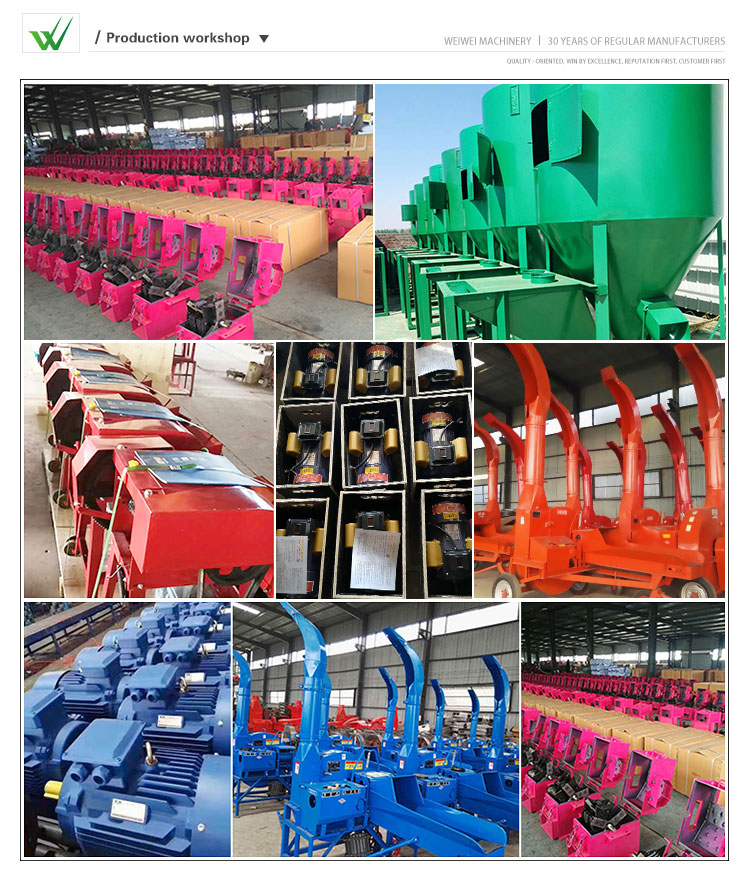

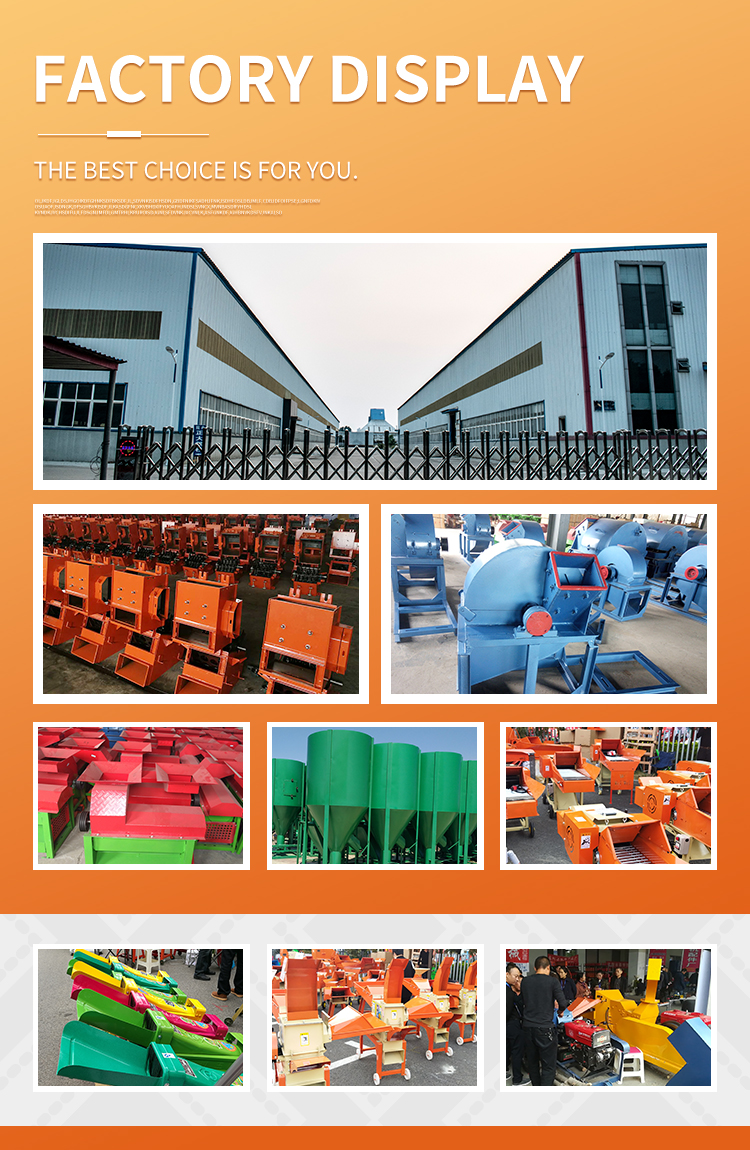

Factory and more information

Our company is located in the western suburbs of Zhengzhou City, the capital of Henan Province, 3 km north of Xingyang Station on the Kai-Luo Expressway, and was established in 1980 with an area of 10,000 square meters and an annual production capacity of 40,000 to 50,000 units. The company mainly produces: 9ZP series kushiage, 9ZF series grass grinder, 9FQ series feed grinder, MFJ series wood grinder, MBJ series wood chipper, MPJ series wood chipper, DJM series multi-functional wood grinder, 9YF series baler, corn thresher, corn ripper, peanut sheller, biomass pellet machine, supporting power motor, etc., and all kinds of The company has a wide range of agricultural, garden and livestock breeding machinery and equipment, including feed processing machinery. The company always pursues excellence, with high quality staff, strict quality assurance system and optimal management of the entire production process, to ensure our "high-quality projects". The perfect after-sales service system allows you to have no worries.
