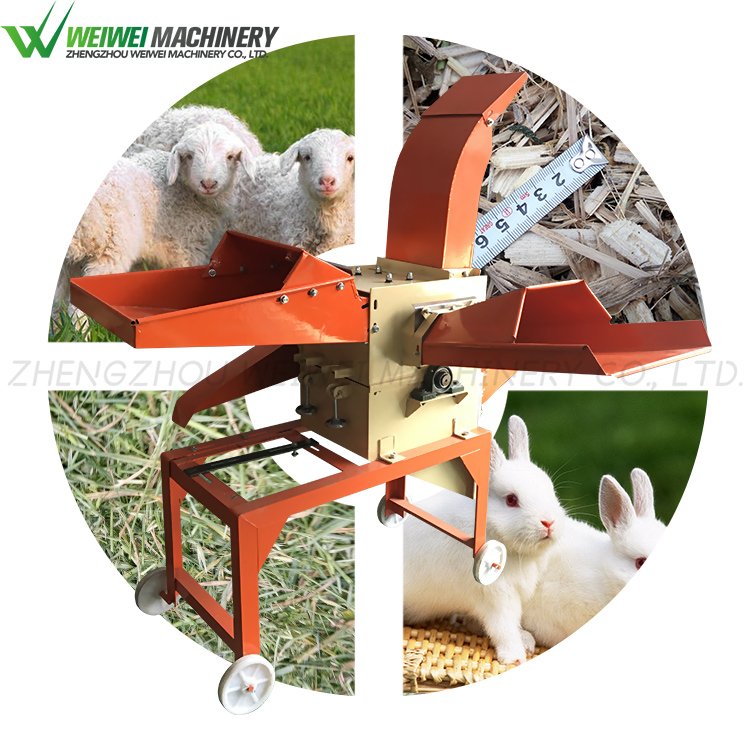

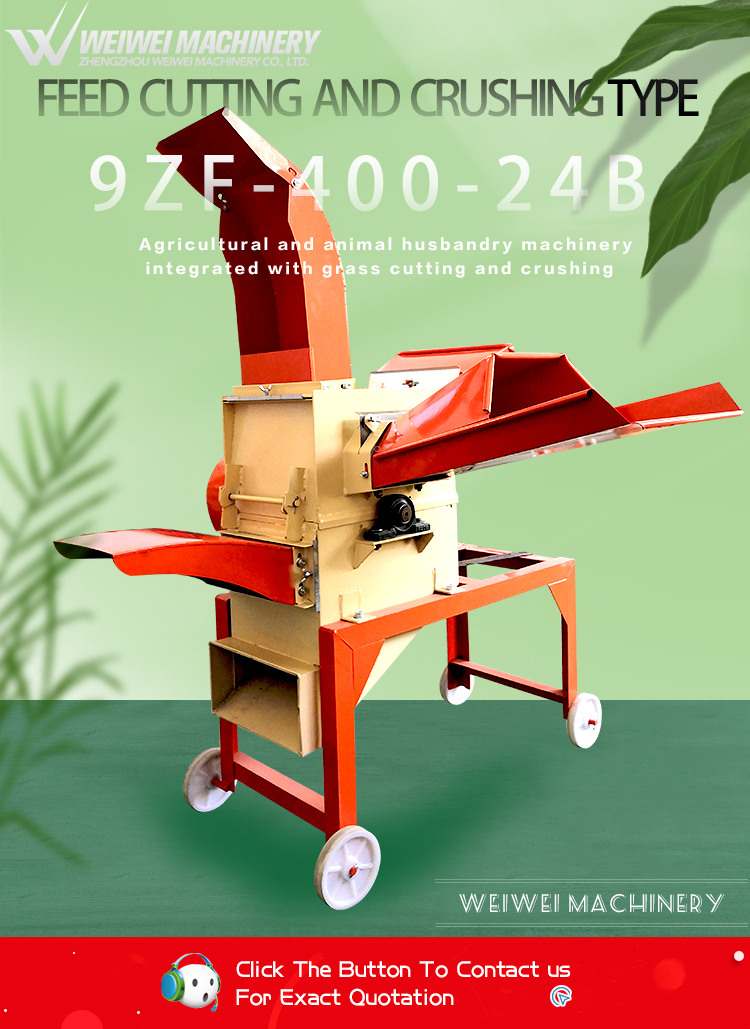

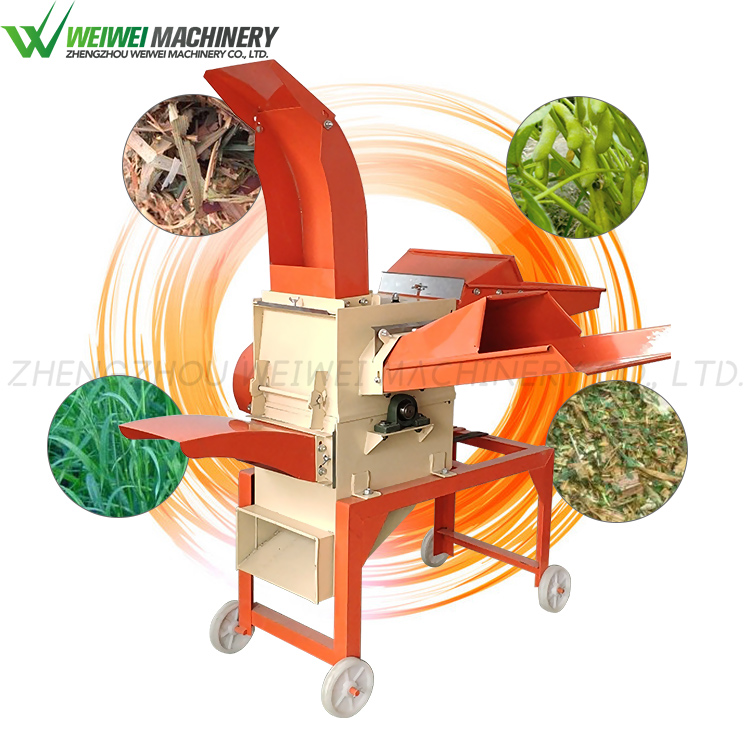

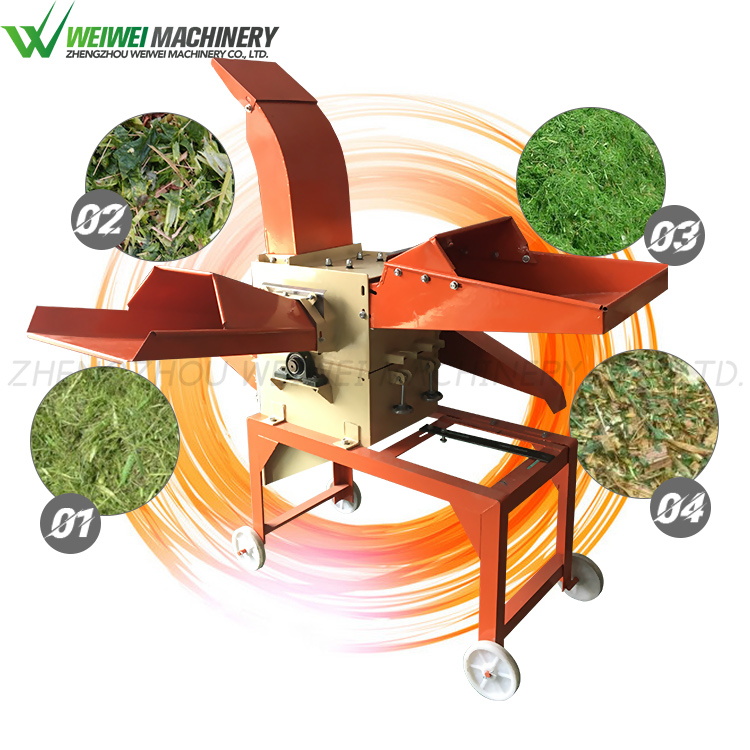

Weiwei 9ZF400-24B Multifunction Feed Crusher Hammer Mill Powder Making Machine
  • Weiwei 9ZF400-24B Multifunction Feed Crusher Hammer Mill Powder Making Machine
  • Weiwei 9ZF400-24B Multifunction Feed Crusher Hammer Mill Powder Making Machine
  • Weiwei 9ZF400-24B Multifunction Feed Crusher Hammer Mill Powder Making Machine
  • Weiwei 9ZF400-24B Multifunction Feed Crusher Hammer Mill Powder Making Machine
  • Weiwei 9ZF400-24B Multifunction Feed Crusher Hammer Mill Powder Making Machine

Weiwei 9ZF400-24B Multifunction Feed Crusher Hammer Mill Powder Making Machine

Categories:chaff cutter
Capacity:400-600KG/H
Power:3KW/6-8HP
Engine:Electric ,diesel engine ,gasoline engine
Applications:
 Download
Tel:0086-371-63283021
Email:admin@weiweimachinery.com
WhatsApp:+86 185 3090 9157
Our 9zf/9fq series animal feed processing machine is a grass cutting and crushing agricultural machinery, the users can according to different occasions, different yield and forage size, different animal feeding options select the grass grinder machine.
The cutting machine is research and development according to the market demand .
After the new selling agricultural products entering the market market .Sales are ahead of rivals,.
,farmer / dealer / distributor sales feedback is good, it is the farmers trustworthy animal husbandry products.

parameter

    Model 400-24B
    Application  9ZF Series grass cutting and crushing machine
    Voltage Customized
    Power 2.2-3.0KW(Tell us the hertz of your country's voltage )
    Capacity 400-600kg/h
    Weight 70kg
    Blade quantity 10 pieces triangle knives  2 fan blades 24 hammers
    Cuting effect length silk or powder effect and other size according to screen mesh
    Motor speed 3100r/min
    Cutting machine size(L*W*H)mm 1180*1090*1040mm
   Screen mesh  3.0mm (the diameter of sieve hole can be customized)
    Power Electric motor/gasoline engine/diesel engine
   Qty of hammers 24 hammers

principle

Drive by the motor, gasoline engine, diesel engine as power, first of all power equipment idling for about 2 minutes , check whether the internal has noise and after speed to reach the rated speed (to maintain the machines and the power), then feeding grass, power equipment running through the belt pulley drive gear transmits power to the drive shaft , then the drive shaft will be transferred power to roller and grass feeding device by gear at the other end and other components , transmission power to drive the hay into the studio by pressing grass roller, straw was chopped combined action with the fixed knife and the fast spinning moving blades ,the cutting grass outside of the hay cutter through the outlet port

Detail

The crushing straw cutter is composed of an upper body , lower body ,rotor assembly, two feeding device, two discharging device ,screen mesh,crushing straw cutter room/grass pulverizing room,body frame,wheel and other parts, the body and the rotor assembly is an important part of the crushing chamber, the rotor assembly is the main working parts.

The rotor consists of sawtooth knife, triangular serrated blade , sawtooth hammer, fan blade, fly-cutter, fixed knife/stationary knife.
 serrated blades of grass cutting machine grinding chamber, jagged blade,serrated bottom plate, tile board make straw kneading and crushing to better effect.

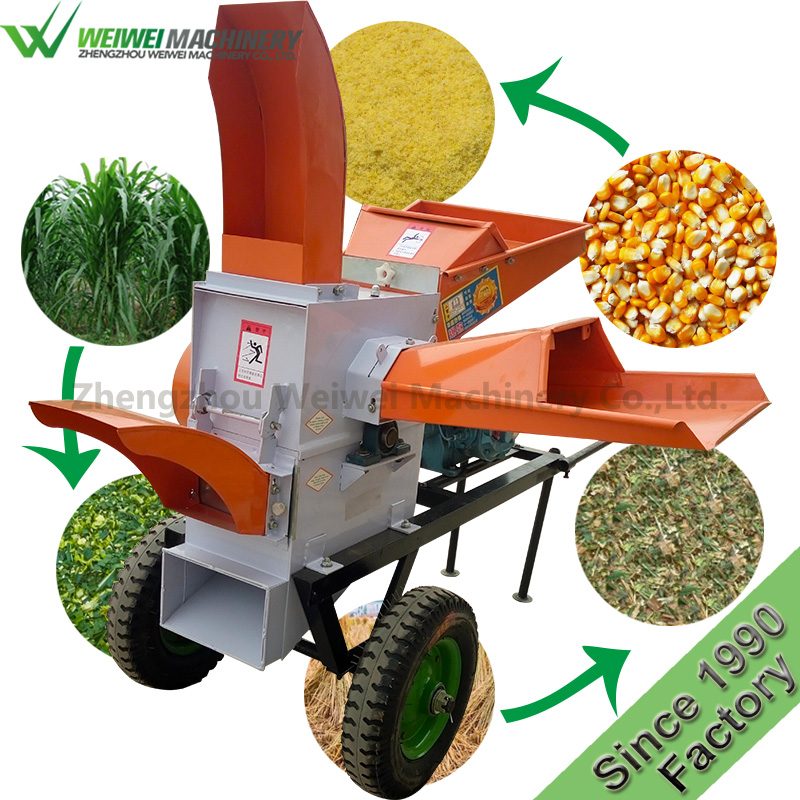

The hay cutter has two inlet and two outlet

The silage cutting machine inlet and outlet has three baffle plates isolation. The user can select the switch of the baffle freely according to the feeding material。
