9HLP-500 weiwei feed mixer powder mixing machine

Categories：feed mixer and grinder

Capacity：500-2000kg/h

Power：3-7.5KW

Engine：Electric ，diesel engine ，gasoline engine

Applications：

 Tel：0086-371-63283021

 Email：admin@weiweimachinery.com

 WhatsApp：+86 198 3869 1608

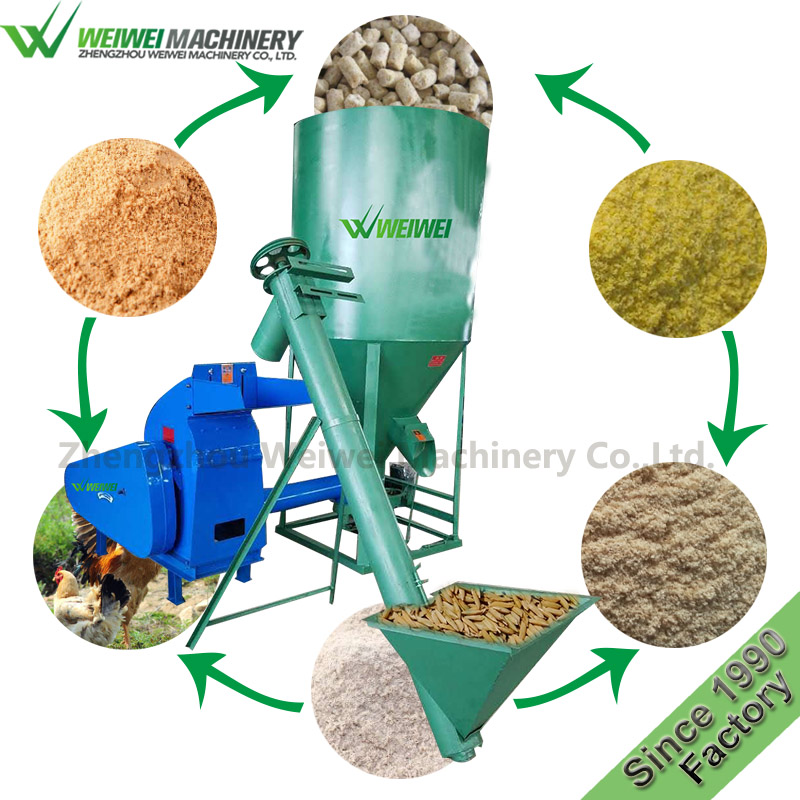

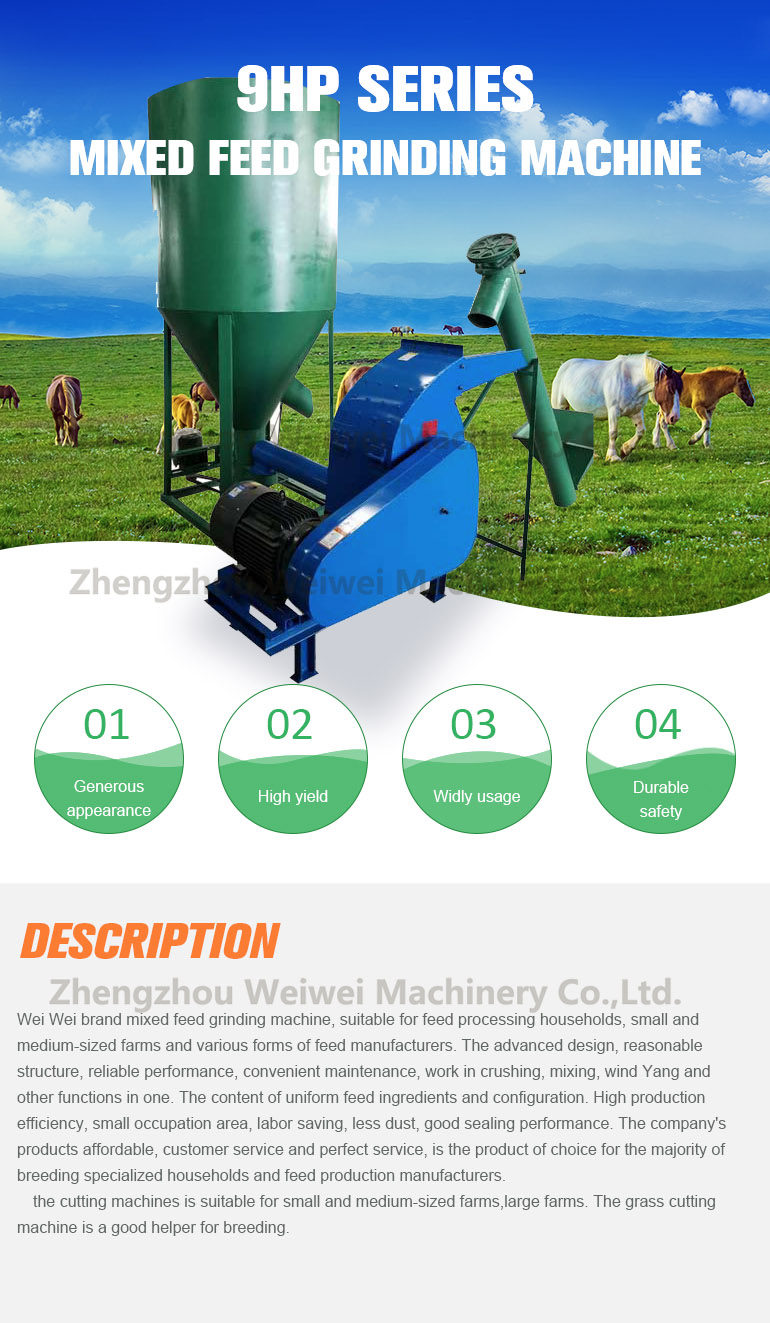

Animal feed crusher and mixer, suitable for feed processing households, small and medium-sized farms and various forms of feed manufacturers. The advanced design, reasonable structure, reliable performance, convenient maintenance, work in crushing, mixing, wind and other functions in one. The content of uniform feed ingredients and configuration. High production efficiency, small occupation area, labor saving, less dust, good sealing performance. The company's products affordable, customer service and perfect service, is the product of choice for the majority of breeding specialized households and feed production manufacturers

parameter

Model no.：	9HLP-500
Application	Feed grinder and mixer
Voltage	Customized（Tell us the hertz of your country's voltage ）
Matched power	3-4KW for mixer
Capacity	1000kg/h
Main shaft speed(r/min)	400r/min
Rotor diameter(mm)	1440mm
Power	5.5/7.5KW for grinder
Main shaft speed(r/min)	2900r/min
Rotor diameter(mm)	470mm
Packaging size（LWH)mm	245112190cm
Weight	Weight ：260-300kg（with grinder and two motor）
HS CODE :	8436100000

principle

There are one crushing mechanism of automatic suction and forced feeding two (according to the model selection for mill), when the material is sucked or into the crushing chamber, the hammer blow and continuous collision, rapidly crushing into powder or granular, and then subjected to centrifugal force or air, through the sieve into the A impeller chamber.
Two mixing mechanism: when the material propeller rotates, the material is composed of B impeller chamber were forcibly sent to the feeding pipe, and then be promoted to the top propeller stirring barrel, then the material is uniform and throw in the stirring barrel, up mixing barrel material decreased and rotation around the continuous form, so as to achieve the mixing process. Mixing effect.

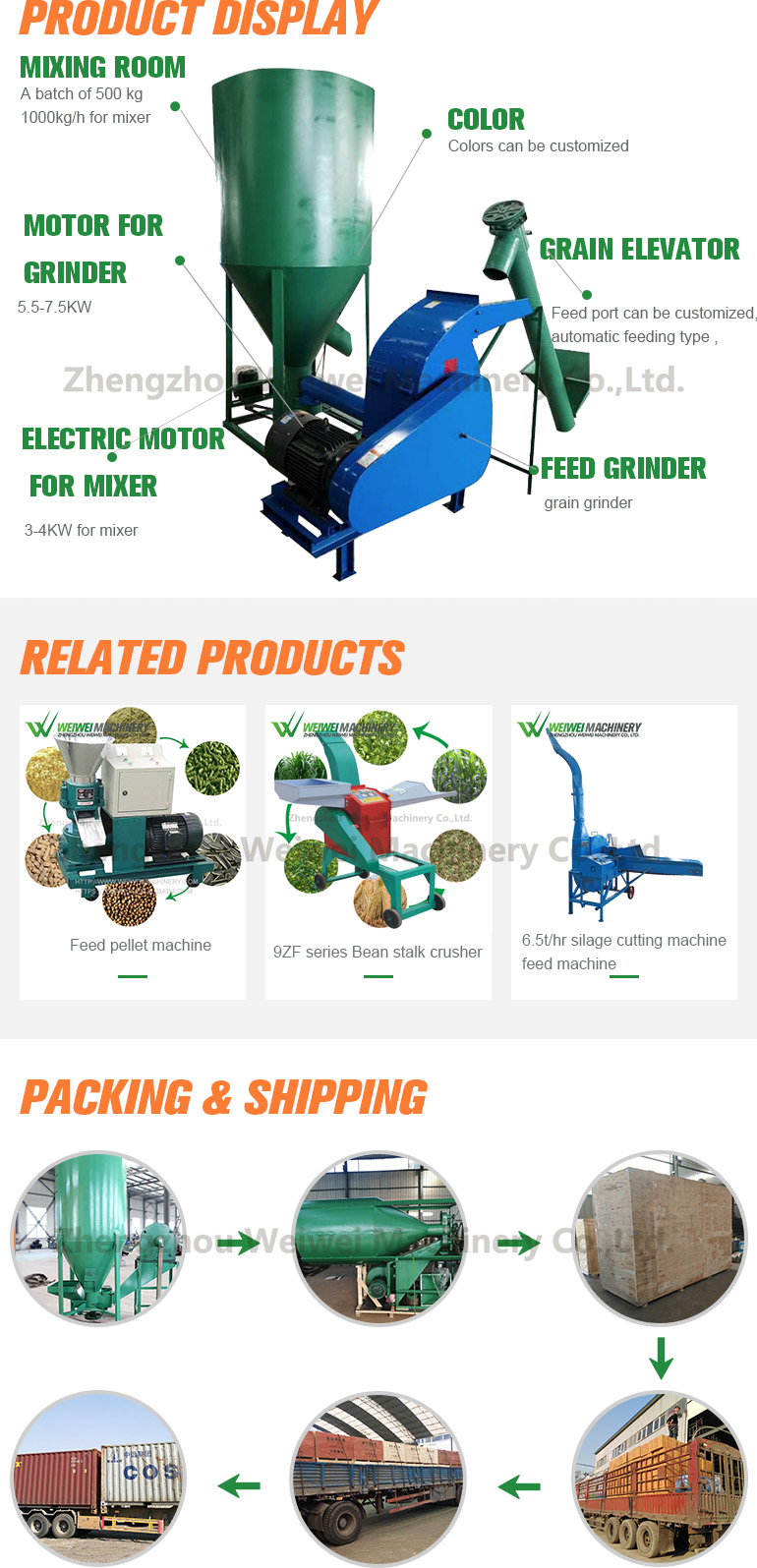

Detail

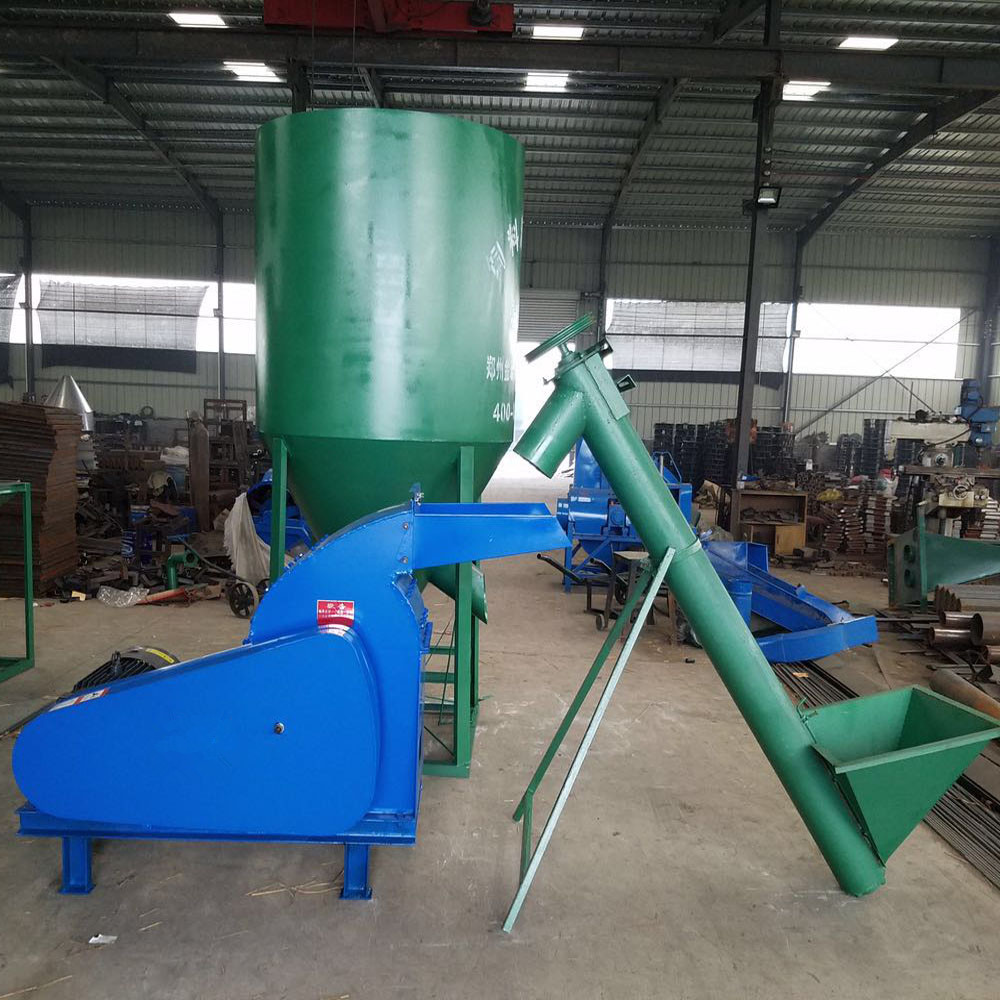

This comminuted mixer can use a variety of engine， we provide design and modification services ,
As a manufacturer, the machine can be converted into motor, diesel or gasoline engine type

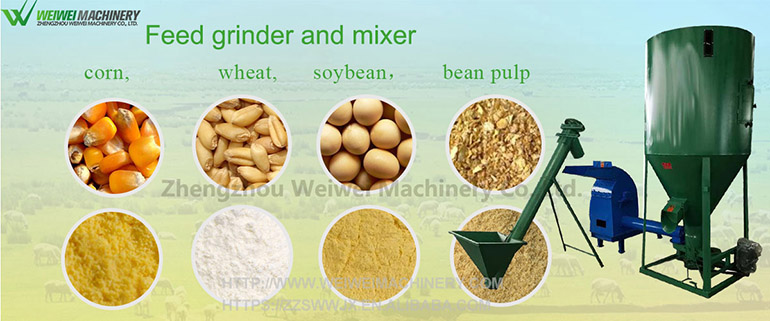

The mixer with pulverizer can crush corn, soybeans, sorghum and other kinds of grain, the powder is fed into the mixing chamber under the action of the wind force through the conveyer, and the feed inlet of the mixer is filled with more animal feed raw materials, which are evenly mixed in the mixing chamber.
A batch of feed can be stirred in 15-30 minutes.
