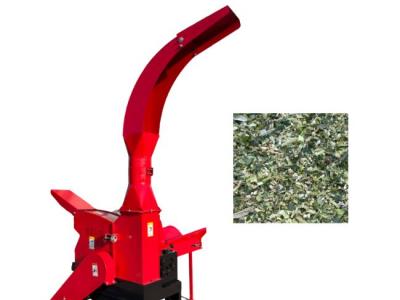

The 9ZP-10 automatic feeding straw kneading machine is a chaff cutter built for straw and grass. It cuts corn stalk, bean stalk, cotton straw and other crop straw, pasture grass and all kinds of grass, leaves and twigs into short, soft feed. Because the material range is wide, the same machine serves different feeding demands instead of needing a separate cutter for each crop.
It is used for cattle, horses, rabbits, chickens, ducks and other animals. The machine is a trustworthy choice for large ranches and professional farmers, and it is especially suitable for large ranches where a steady daily supply of feed matters more than a low purchase price.
Feeding is automatic. The 1255430cm feed port takes the material in, and the straw roller and combing roller hold it and pass it to the knives at an even rate, so the cut length stays consistent and the operator does not have to push material through by hand.
The finished material is blown out over a distance of 10-15m, so it can be aimed straight at a pile, a cart or a feed bunk. Output is 4-6t/h, which keeps up with a large herd, and the machine runs on a 5.5kw three-phase motor at 380V/50Hz or on a 12HP diesel or gasoline engine where there is no grid power.
Output: 4-6t/h
Power: three-phase electric 380V/50Hz, 5.5kw; diesel or gasoline engine 12HP
Motor speed: 1440r/min, four-stage motor
Machine size: 25418398cm including wheels
Shipping size: 8357121cm fuselage, 6213051cm inlet and outlet
Weight: 300kg without motor
Feed port: 1255430cm
Straw roller: 237cm
Combing roller: 2110cm
Blowing distance of finished material: 10-15m
