The difference is structural. In a flat die machine, rollers press material down onto a stationary horizontal die, and pellets drop out underneath. A ring die pellet mill turns that geometry inside out: the die itself is a rotating vertical ring, and pressure rollers run along its inner wall. Raw material is fed into the center of the ring, distributed by a spinner, and squeezed outward through the die holes as the ring spins. Friction and pressure compact the material into dense, uniform pellets that break off on the outside. Because the die and rollers contact the material over a much larger working area, throughput climbs sharply — which is exactly why ring die machines are the standard choice in commercial biomass and wood pellet plants.

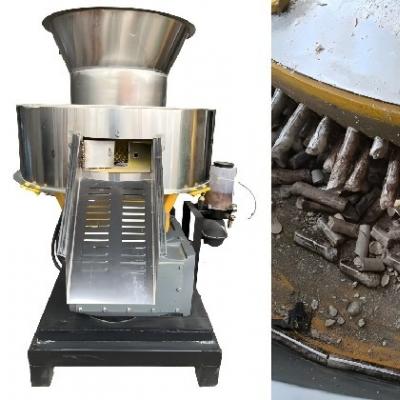

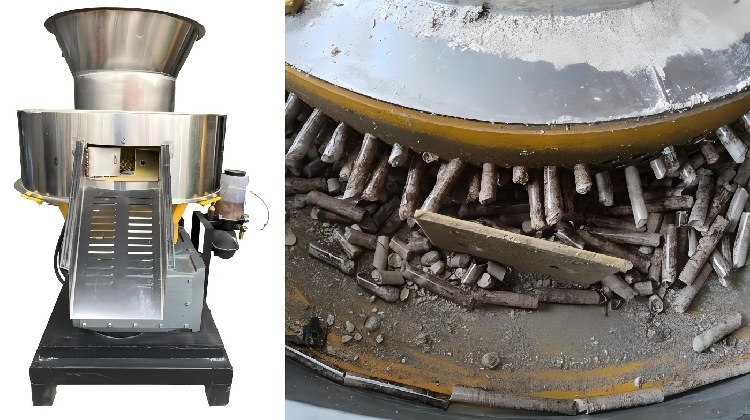

Three practical points decide whether a ring die mill pays off for you. First, raw material preparation: biomass must be ground fine enough and dried to roughly 8–12% moisture before it enters the machine — wet or coarse feed will jam the die and ruin pellet quality. Second, die selection: hole diameter (typically 6–8 mm for fuel pellets) and compression ratio should match your material, and wear-resistant alloy dies last far longer on abrasive feeds like rice husk. Third, look at the drive and lubrication: the photo shows our 450-class ring die pellet mill with a heavy-duty gear reducer and an automatic oil lubrication pump for the die and rollers — that combination is what keeps a plant running shift after shift. The second photo shows the moment that matters most: dense biomass pellets being extruded cleanly from the die, with minimal fines.
