Weiwei Machinery 9KLP-260 feed line: 8-axle mill + elevator + pellet mill

Categories：feed processing machines

Capacity：500kg/h

Power：Grinding machine: 15kw four-stage motor; Crusher: 2.2 - 4kw; Customizable diesel engine / gasoline engine

Engine：Electric motor 15kw (pellet mill) + 2.2-4kw (crusher); Diesel/Gasoline engine optional

Applications：Suitable for small-scale feed processing scenarios such as poultry, livestock and aquaculture, it can press raw materials like corn, soybean meal, straw, rice husks, and grass powder into cylindrical pellet feed. It is widely used in farms for animals like chickens, ducks, geese, pigs, cattle, sheep, rabbits, and fish, as well as in family farms.

 Tel：0086-371-63283021

 Email：admin@weiweimachinery.com

 WhatsApp：+8619838691608

The 500kg/h feed pellet production line is widely used in poultry and livestock aquaculture farming, including chickens, ducks, geese, pigs, cattle, sheep, rabbits, fish and more. It is an ideal solution for family farms, small-scale farms and feed processing points, as well as rural breeding professionals and individual farmers. The line can process a broad range of raw materials such as corn, soybean meal, straw, rice husk, grass powder and various grain husks.

parameter

Grinding machine model	9KLP-260
Matching power	15kw four-stage motor
Output	400-600 kg/h
Flat die diameter	260mm
Number of press rollers	3
Grinding disc aperture	2.5/3/4/6/8mm
Grinding machine weight	130kg
Packaging size	125×45×114 cm

Pulverizer model	Eight-axis pulverizer 750-24
Pulverizer power	2.2-4kw
Pulverizer output	250-750 kg/h (500-1500 pounds/hour)
Pulverizer speed	4300 r/min
Pulverizer weight	62kg

principle

Detail

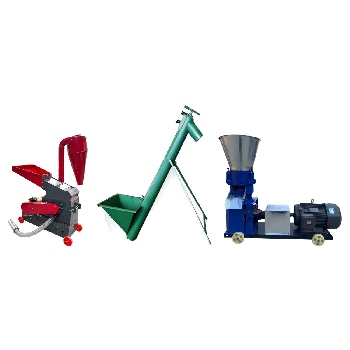

This production line adopts a three-stage layout of "crushing → lifting → granulation": The eight-axis crusher first crushes raw materials such as corn, straw, and soybean meal into powder form; the screw elevator continuously and evenly conveys the powder into the feed granulator hopper; the 9KLP-260 feed granulator, through the compression effect of three rollers and wear-resistant grinding discs, forms the powder into smooth-surfaced and moderately hard cylindrical granular feed in one step. The entire machine has a compact structure, is easy to operate and maintain, and can be customized with motor models or diesel engine models according to customer needs.

Product Details and Packaging

The rollers are made of high-quality alloy steel and treated through a quenching process, providing excellent wear and heat resistance. A three-roller design is adopted to significantly improve the pelleting and discharging efficiency.

The die plate is constructed from cast steel or cast iron, with die-hole diameters selectable from 2.5 mm to 8 mm. Standard configurations come with 4 mm and 6 mm holes to meet the feed requirements of different animals.

The feed system features an enlarged hopper that reduces the frequency of refilling, while the stainless steel discharge chute is fitted with a cutting-knife device, allowing precise control over the final pellet length.

The transmission adopts an automobile rear-axle type gearbox combined with a universal-joint drive, ensuring high transmission efficiency and smooth, stable operation.

For packaging, the machine is shipped in export-grade wooden cases that are sturdy and shockproof, making them well suited for sea freight and long-distance transportation.
