• Poultry: broilers, layers, ducks, geese, quail, pigeons
• Livestock: pigs, cattle, dairy cows, sheep, goats, horses, rabbits
• Aquaculture: fish, shrimp and other farmed species
• Users: family farms, small and medium livestock farms, breeding cooperatives, feed contractors and farm cooperatives that sell bagged pellets locally
• Raw materials: maize, wheat, barley, sorghum, soybean, soybean meal, rice bran, peanut meal, bone meal, fish meal, straw, hay, grass, sweet potato vine, corn cob and rice husk; premix, minerals, vitamins, probiotics and medication are added in the mixer
• One compact line crushes, lifts, blends and pellets: 500 kg of finished feed per hour from your own grain
parameter

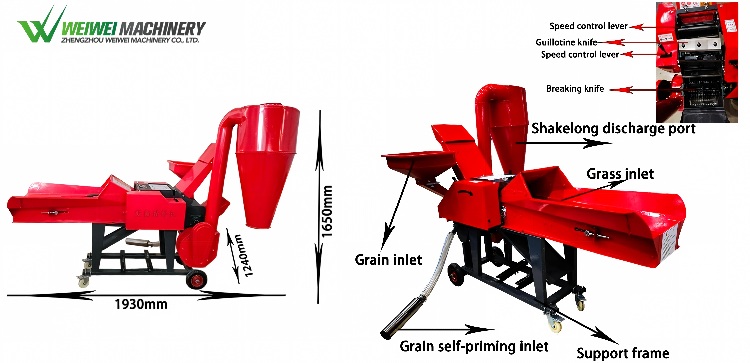

1) 9ZRF-4.8 Guillotine (Chaff) Crusher
Model: 9ZRF-4.8 | Power: 4.5 kW, 380 V, 3-phase, 50 Hz | Capacity: 4-4.5 t/h | Blades: 6 pcs | Hammers: 40 pcs
Main shaft speed: 4,300 r/min | Weight: 150 kg | Dimensions: 1,930 x 1,240 x 1,650 mm
Inlets: grass inlet (long forage) + grain inlet + grain self-priming inlet | Discharge: shakelong (cyclone) port
Cutting length set by the speed control lever; guillotine knife + breaking knife + hammer assembly in one chamber
2) Ø165 Screw Elevator
Tube diameter: 165 mm | Length: 2 m standard (2.5 / 3 / 3.5 / 4 / 4.5 m on request) | Motor: 3 kW, 220 V, 50 Hz, single phase | Motor speed: 1,400 r/min | Capacity: 500-1,500 kg/h | Weight: 56 kg
Top handwheel for screw tensioning, flange-jointed sections, knocked down for export
3) Stainless Steel Feed Mixer (model 300)
Model: 300 | Matched power: 3 kW / 380 V | Motor speed: 1,400 r/min | Barrel diameter: 1,200 mm | Machine height: 1,250 mm | Weight: 125 kg
Single batch: 200 kg dry material, or 300-400 kg wet material | Barrel and cone in stainless steel | Bottom gear-motor drive | Side discharge gate with hand lever | 4 castor wheels
4) 9KLP-260 Flat Die (Disc-Rotating) Pellet Mill
Model: 9KLP-260 | Power: 15 kW, 4-pole, 380 V, 50 Hz | Capacity: 500-600 kg/h | Weight: 280 kg
Dimensions: 1,400 x 480 x 1,200 mm | Die diameter: 260 mm | Press rollers: 3, grooved, hardened alloy steel
Die holes: 3 / 4 / 6 / 8 mm (other sizes on request) | Stainless steel hopper | Adjustable cutter for pellet length
Belt drive with full guard | 4 wheels, movable
5) Complete Line
Total power: 25.5 kW | Voltage: 380 V / 50 Hz, 3-phase (customizable) | Footprint: approx. 5 x 2.5 m, one row, level concrete floor only, no foundation bolts
principle

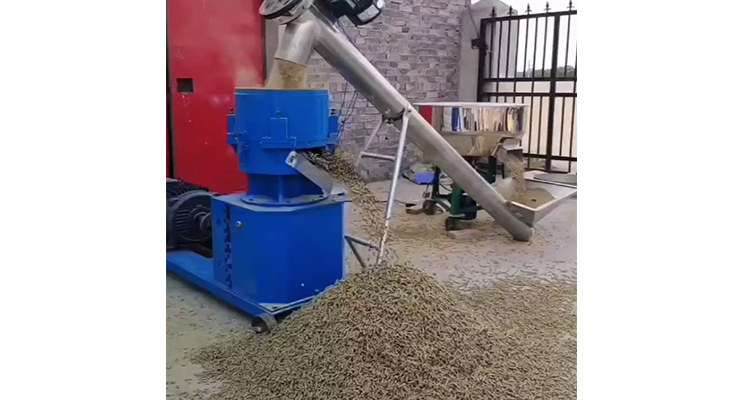

One continuous crush - lift - blend - pelletize flow. Forage, straw or grass is laid into the grass inlet of the 9ZRF-4.8, where the press roller clamps it and feeds it at a controlled speed set by the speed control lever into the guillotine knife; the high-speed rotating blades chop it, and the 40 hammers in the crushing chamber strike it a second time against the screen, after which the air flow throws the meal out through the shakelong (cyclone) discharge port. Grain goes in through the grain inlet or is drawn in by the grain self-priming inlet and crushed the same way, so forage and grain can be processed on the same machine. The crushed meal falls into the inlet hopper of the Ø165 screw elevator: the 3 kW motor drives the belt, the belt turns the screw, and the meal is carried up the sealed tube and dropped out of the top spout into the stainless mixer. There the rotor stirring rod keeps turning the material over - the batch is flipped, sheared and folded against the stainless barrel, so meal, premix, minerals and vitamins become one uniform mix, and the blend is released through the side gate into the elevator inlet to be lifted into the 9KLP-260 hopper. In the pellet mill the 15 kW motor drives the main shaft through the belt; the flat die turns and the three grooved press rollers rotate on their own axes, rolling repeatedly over the material layer and squeezing it through the die holes. Pressure and friction bring the meal to about 70 C, the starch gelatinizes and the protein coagulates, and the strands that come out of the die are cut to length by the adjustable cutter and thrown out by the discharge chute - cool them and the pellets are ready to bag or feed.
Detail

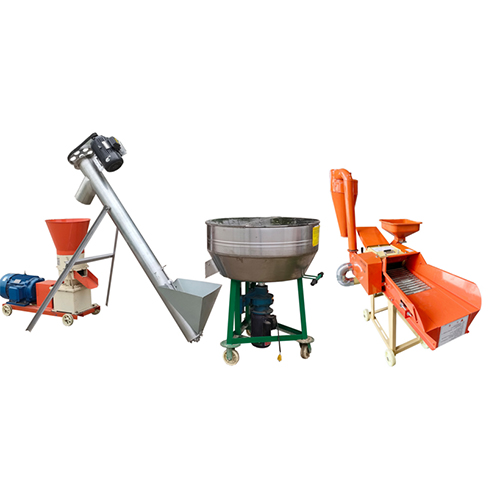

The 500 kg/h feed pellet production line is built from four machines that work as one: the 9ZRF-4.8 guillotine crusher, the Ø165 screw elevator, the stainless steel mixer and the 9KLP-260 flat die pellet mill. The crusher is the workhorse at the front - one 4.5 kW motor, a 1,930 mm long body on four wheels, a grass inlet for long forage, a grain inlet plus self-priming grain inlet, 6 chopping blades, 40 hammers and a shakelong cyclone outlet, giving 4-4.5 t/h of fine meal from straw, hay, grass, maize cobs or grain, far more than the pellet mill can take, so the operator can crush a whole day of raw material in one morning. The Ø165 elevator is a sealed tubular auger with a 3 kW motor and a top handwheel tensioner that lifts the meal without a speck of dust. The mixer is a stainless steel pan on a welded frame: a 3 kW gear motor under the barrel turns the rotor, 200 kg of dry material is blended evenly in minutes, and the side gate empties the batch straight into the elevator. The 9KLP-260 is a disc-rotating flat die mill - stainless hopper, three hardened grooved rollers, a replaceable alloy die with 3/4/6/8 mm holes, an adjustable cutter, a full belt guard and four wheels - pressing 500-600 kg of hard, glossy pellets per hour. Every machine is on castors, so the line can be set up in an L, a straight row or split into separate stations, and colour, voltage, die hole size, capacity, logo and engine type can all be customized.
Product Details and Packaging
• 9ZRF-4.8 crusher: 6 chopping blades + 40 hammers in one chamber, guillotine knife and breaking knife both replaceable; speed control lever sets the feed-in rate for different materials; three inlets (grass, grain, grain self-priming) so one machine handles forage and grain; shakelong cyclone discharge keeps dust down; 4 wheels and pulling handle, one person can move it
• Ø165 screw elevator: seamless Ø165 tube, 3 kW motor with belt drive, top handwheel for screw tensioning, bolted inspection covers, flange-jointed sections so it packs flat and is easy to lengthen
• Stainless mixer: full stainless barrel and cone (no rust, easy to wash), gear motor underneath out of the dust, rotor with stirring rods, side discharge gate with hand lever, welded frame on 4 castors
• 9KLP-260 pellet mill: stainless steel feed hopper, 3 grooved hardened alloy rollers, replaceable die (3/4/6/8 mm), adjustable cutter for pellet length, full belt guard, 15 kW motor and mill on one common base with 4 wheels
• Customization: machine colour, voltage and frequency (220 V / 380 V, 50 / 60 Hz), die hole size, elevator length (2-4.5 m), mixer capacity (50 / 100 / 150 / 200 / 300), logo and nameplate, diesel or gasoline engine drive
• Packing: every machine in its own export plywood case, steel-strapped, with shipping marks and a packing list; the 2 m elevator packs knocked down in a case of approx. 2,260 x 760 x 510 mm, crusher, mixer and pellet mill each travel in a separate case (final case sizes and total CBM confirmed on the packing list before shipment); all belts, blades, hammers and small parts are packed inside the cases. Container loading arranged for 20GP / 40HQ, with photos of the loading sent to the customer.
Factory and more information
Zhengzhou Weiwei Machinery Co., Ltd. is located in Gaocun Industrial Zone, Xingyang, Zhengzhou, Henan, founded in 1980. With a 10,000+ m2 plant, 200+ staff and more than 20 technical engineers, the company integrates R&D, design, manufacturing and sales and produces agricultural, garden and feed machinery. Certified with ISO9001, CE, SGS and TUV and holding about 19 patents, its dual brands WEIWEI / XINGYIDA are exported to 40+ countries across America, Africa, Southeast Asia and South Asia, with more than 30 years of experience in agricultural machinery. Products support a 12-month warranty and professional after-sales technical guidance.
