• Poultry and livestock aquaculture including chickens, ducks, geese, pigs, cattle, sheep, rabbits, and fish
• Family farms, small-scale livestock farms, rural specialized farmers
• Small-scale feed processing points, individual farmers
• Processable raw materials: corn, wheat, soybeans, sorghum, straw, rice husks, hay powder, peanut shells, bean meal, and soybean meal, etc.
• Direct crushing and granulation, no need for manual transfer or additional lifting equipment

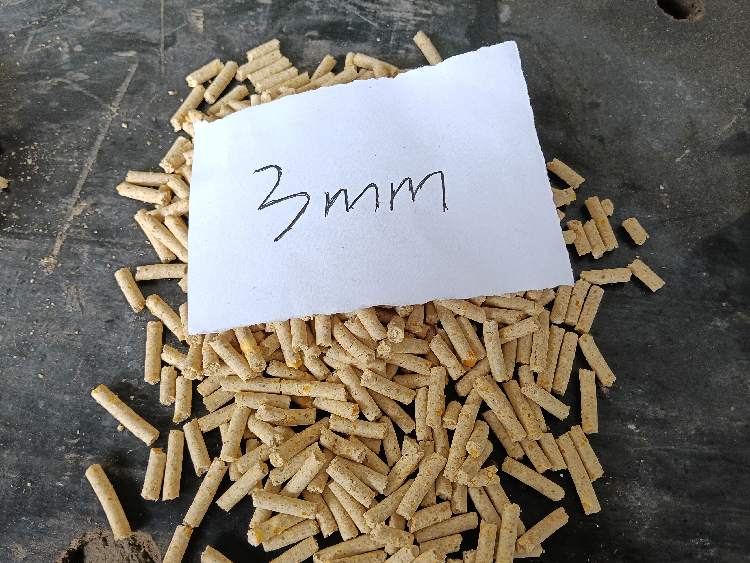

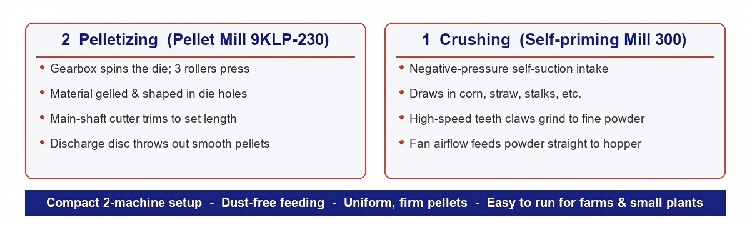

The entire process is a two-stage "crushing - granulation" flow: The 300 self-suction type crusher utilizes the principle of negative pressure self-suction to draw raw materials such as corn and straw into the crushing chamber. The high-speed rotating teeth claws break and crush the materials into powder; the crushed powder is directly sent into the hopper of the 9KLP-230 granulator by the air flow of the fan; inside the granulator, the motor is driven by the gearbox to rotate the grinding disc, and the three rollers repeatedly roll and press against the grinding disc. After the materials undergo high-temperature gelation and protein coagulation, they are squeezed into the mold holes and cut by the main shaft cutter into the desired length, and finally are thrown out by the discharge disc to obtain smooth-surfaced and moderately hard cylindrical particle feed.

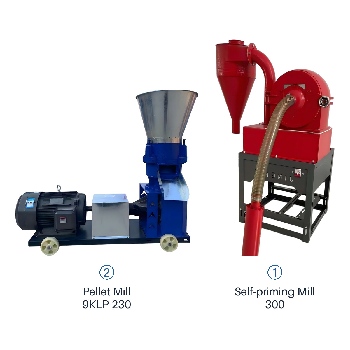

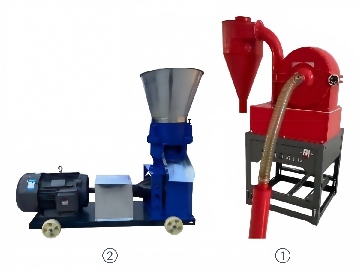

This unit adopts a two-stage integrated design of "crushing - granulation", consisting of a 300 self-suction pulverizer and a 9KLP-230 feed granulator. After the raw materials are crushed without dust in the self-suction pulverizer, the powder directly enters the hopper of the granulator through the self-suction pipeline, eliminating the traditional production line's steps of stirring and spiral lifting. The structure is more compact, occupies less space, and is easier to move. The 9KLP-230 granulator forms the powder into cylindrical particles through three rollers and wear-resistant grinding discs, with high forming rate and smooth surface. The entire machine is easy to operate and is suitable for rural farmers and small-scale livestock farms. It can be customized with motor models or diesel engine models according to the requirements.
• 300 self-feed crusher: Thick steel plate with painted surface, equipped with mobile wheels at the bottom for easy transportation; Pure copper 4kw motor, resistant to high temperatures and long lifespan; Toothed claw crushing, equipped with a thick dust collection tank, dust-free and environmentally friendly; Adjustable screen design for flexible adjustment of crushing fineness
• 9KLP-230 granulator: Alloy steel quenched and hardened pressing rollers, wear-resistant and heat-resistant; Three-roller design, high output efficiency; Cast iron grinding disc, available in hole diameters of 2.5-8mm, often paired with 4/6mm; Larger feed hopper, stainless steel discharge hopper with cutter, adjustable particle length
• Transmission: Car rear axle type gearbox + universal joint transmission, stable operation and strong angle adaptability
• Packaging: Export wooden box packaging, stable and shock-resistant, suitable for sea transportation and long-distance transportation
