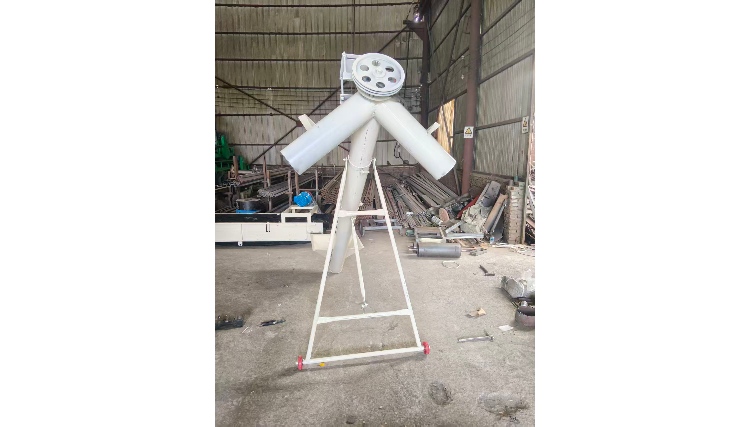

The lifter is available in 165 mm and 219 mm tube diameters, with lifting lengths from 2 m to 5 m to match different hopper heights. It is driven by a 3 kW three-phase motor (4-pole) and delivers a capacity of 500–1500 kg/h, enough to keep two small flat-die pellet mills fully fed. The whole unit is mounted on a tripod frame with casters, so it can be moved and repositioned easily; the inclined feed hopper at the bottom accepts powder and granular materials such as corn meal, grass meal, sawdust and wood chips.
The double-outlet design brings three clear advantages. First, it saves investment: one conveyor replaces two, cutting equipment cost and freight. Second, it saves floor space, which matters in crowded workshops. Third, it adds production flexibility — the operator can feed both pellet mills running the same die size for maximum output, or switch material between two mills with different die sizes (for example, feed pellets and grass pellets) without extra handling. With simple structure, low power consumption and easy maintenance, the double-outlet screw lifter is an economical upgrade for small pellet production lines. Contact Weiwei Machinery for price, dimensions and a video test.
