• Poultry: chickens, ducks, geese, quails
• Livestock: pigs, cattle, sheep, horses, rabbits
• Aquaculture: fish and other farmed species
• Users: small and medium-sized farms, family farms, rural breeders, small feed mills
• Raw materials: corn, wheat, soybean, sorghum, rice, rice husk, straw, dry grass, corn cob, peanut shell, sweet potato vine, sesame stalk, bean stalk, wheat straw, soybean cake and soybean meal; additives, probiotics, bone meal and fish meal can be mixed in
• One line does crushing, mixing and pelletizing continuously - no manual transfer needed
• Pellet feed is high-temperature aged (about 70 C), easy to store, nutritionally complete and easier to digest

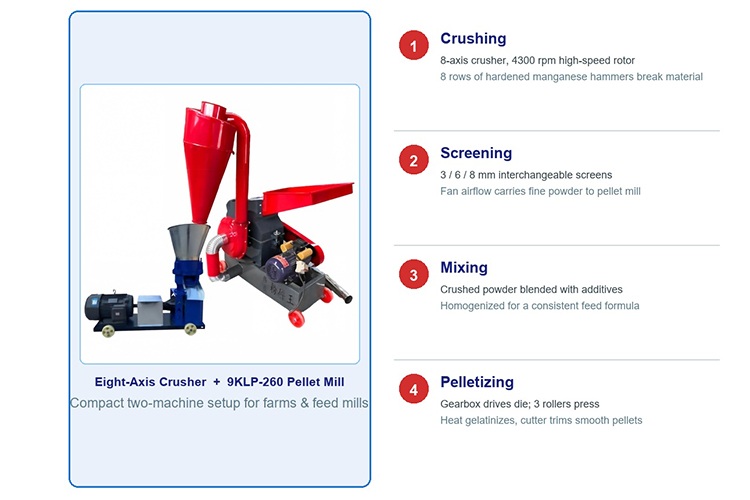

A continuous crushing - granulation process. The raw grains and straw are fed into an eight-axis crusher. The high-speed rotor (4300 revolutions per minute) with 8 rows of hardened manganese steel hammers strikes and shears the material, and the material passes through the screen; the fine powder then passes through 3/6/8 millimeter screens and is blown by a fan to the feed inlet of the granulator. Subsequently, the crushed material is fully mixed and homogenized with additives. The mixed powder is in the granulator: the motor drives the main shaft and the flat mold through the gearbox. Under the friction effect, the three rollers rotate along their own axes and repeatedly roll the material layer. The material undergoes gelatinization at high temperatures, proteins coagulate and denature, and then are forcibly pressed into the mold holes to form cylindrical particles. The particles continue to extend until the cutter on the main shaft cuts them into the desired length, and then are ejected by the discharge disc through centrifugal force.

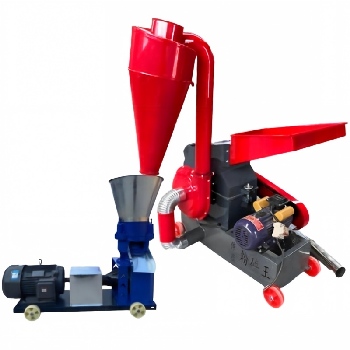

This 500-kilogram-per-hour feed pellet production line integrates an eight-axis crusher and a 9KLP-260 flat die (disc rotation) granulator, forming a compact and mobile production line. The eight-axis crusher uses 8 sets of 48 thickened manganese steel hammers, featuring strong crushing power and uniform fineness. Control can be achieved by simply changing 3/6/8-millimeter screens. The 9KLP-260 presses the mixture into uniform cylindrical feed pellets in a single pass. All equipment is equipped with wheels, making the entire production line easy to move and arrange. Compared to using a single piece of equipment, it saves manpower and time, and is particularly suitable for small-scale farms and small feed factories. It can be configured with 220V/380V AC power, diesel or gasoline drive systems according to requirements.
• Eight-axis crusher: Uses baked paint coating, shiny and rust-proof; Thickened steel body, sturdy and stable; Equipped with 8 sets/48 thickened manganese steel hammers, powerful and uniform crushing; Thickened liners for secondary impact; Expanded feed hopper, with adjustable baffles to control feed speed; Sealing strips prevent material leakage during grinding; Bottom wheels facilitate movement; Optional copper motor
• 9KLP-260 Granulator: Alloy steel hardened pressing rollers, heat-resistant and wear-resistant; Cast iron molds, hole diameters of 3/4/6/8 mm; Expanded feed hopper; Outlet tray with adjustable cutters for adjusting particle length; Cast iron body and rear axle type gearbox to ensure durable operation
• Provides 3 types of screens (3/6/8 mm), replaceable; Supports custom sizes
• Customization services: Color, style, power (electric/diesel/gasoline), output, logo, self-suction pipe and cyclone separator can all be customized
• Packaging: The bare machine is packed in an uncoated plywood export box (bare machine size: 73x46x98 cm; with motor: 87x51x105 cm), protected from moisture and rust with plastic film, cushioned with foam for precision components, suitable for long-distance shipping
Our company is located in the western suburbs of Zhengzhou City, the capital of Henan Province. It is 3 kilometers north of the Xingyang exit of the Kaoluo Expressway. We started production in 1980, covering an area of over 10,000 square meters. Our annual production capacity is 40,000 to 50,000 units. We are a company integrating research, design, manufacturing and sales, and have the right to handle import and export independently. We mainly engage in technological research and promotion in the field of mechanical equipment. Our main products include: 9ZP series hay cutters, 9ZF and 9ZR series hay choppers and pulverizers, 9FQ series feed pulverizers, MFJ series mushroom and wood pulverizers, MBJ series wood chipper, MPJ series wood chip machine, DJM series multi-functional sawdust machine, WBC series branch cutting machine, SWC series walking wood chipper, 9YF series baling machine, corn threshing machine, corn skinning machine, peanut shelling machine, biomass pellet machine, supporting power, and various feed processing machinery, agricultural, garden, livestock and breeding machinery, etc.
