• Poultry & livestock: chickens, ducks, geese, pigs, cattle, sheep, rabbits
• Aquaculture: fish, shrimp and other farmed species
• Family farms, small ranches, rural breeders, small feed workshops
• Raw materials: corn, wheat, soybean, sorghum, straw, rice husk, grass meal, peanut shell, soybean cake, bone meal, fish meal
• Crush → store → mix → pelletize in one continuous line
parameter
| Product |
780-30 Ultra-fine Crusher |
| Power |
4kw 220V single-phase motor (diesel/gasoline optional) |
| Capacity |
1200-1500 kg/h |
| Dimension |
760×1310×1570 mm |
| Weight |
74 kg |
| Function |
cuts and grinds grass/grain, self-priming grain inlet, cyclone dust collection |
| Product |
JPL-200 Gearbox-type Flat-die Pellet Mill |
| Power required |
4 kw 4-pole three-phase motor (customer-supplied) |
| Capacity |
120-180 kg/h |
| Die diameter |
200 mm |
| Rollers |
3 |
| Die holes |
2.5/3/4/6/8 mm (3/4 mm common) |
| Weight |
126 kg |
| Use dimensions |
1000×475×1047 mm |
| Packing dimensions |
870×475×705 mm |
principle

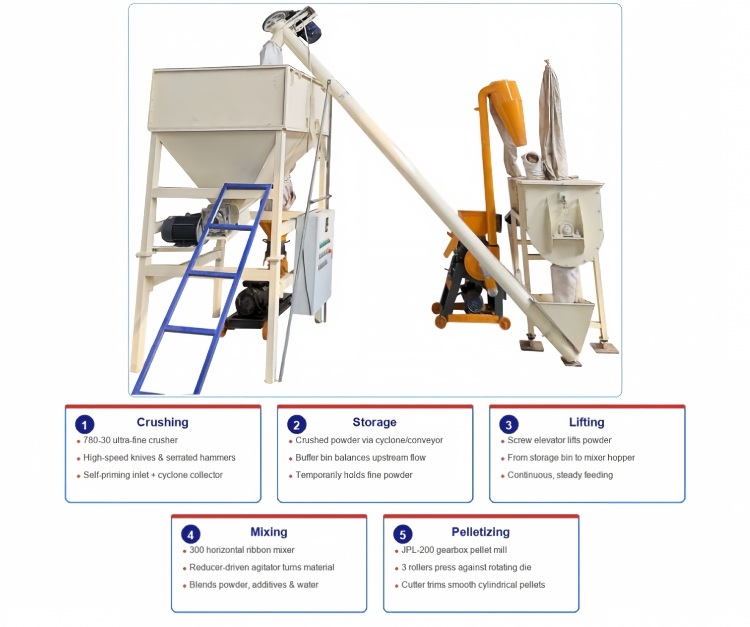

Five-step continuous flow:
(1) The 780-30 ultra-fine crusher uses high-speed rotating knives and serrated hammers to chop and grind maize, straw, meal and other raw materials into fine powder; the 780-30 model has a self-priming grain inlet and cyclone dust collector.
(2) Crushed powder is discharged through the cyclone/screw conveyor into the buffer storage bin, which temporarily holds material and balances upstream/downstream flow.
(3) A screw elevator lifts the crushed powder from the storage bin into the hopper of the 300 horizontal mixer.
(4) Inside the mixer, a ribbon agitator driven by a reducer motor turns the material over and over, blending powder, additives and water evenly in 10-15 minutes.
(5) The mixed material falls into the hopper of the JPL-200 gearbox pellet mill; the customer-supplied 4kw 4-pole three-phase motor drives the die plate through a gearbox, three rollers press the material against the rotating die, gelatinizing it under heat and pressure, then extruding it through the die holes. A cutter trims the pellets to length and the discharge tray throws out smooth, firm cylindrical feed pellets.
Detail

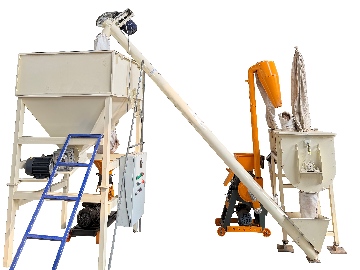

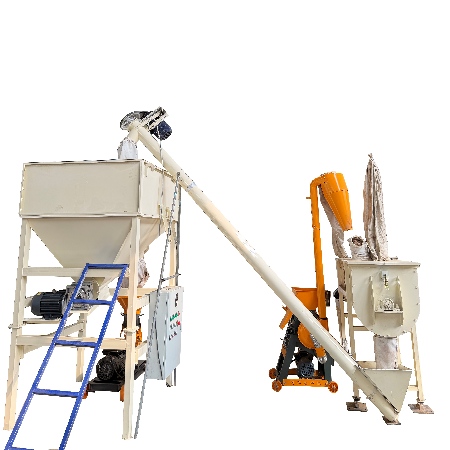

This high-configuration feed pellet production line integrates crushing, storage, conveying, mixing and pelletizing in one compact layout. A 780-30 ultra-fine crusher first handles both grass/forage and grain, producing fine powder that is collected in a buffer storage bin. A screw elevator then feeds the powder continuously into a 300 horizontal ribbon mixer, where additives and water are evenly blended. The prepared mix drops into a JPL-200 gearbox-type flat-die pellet mill (motor prepared by user), which forms the material into uniform cylindrical pellets at 120-180 kg/h. The gearbox design gives the pellet mill stable torque, low noise and long service life. The whole line is mounted on a steel frame, easy to install in small workshops, and the storage bin and mixer reduce labor by allowing batch feeding and continuous pelletizing.
Product Details and Packaging
"• 780-30 ultra-fine crusher: painted thick steel body, bottom movable wheels for easy transfer; self-priming grain inlet; high-speed knives/hammers and interchangeable screen; cyclone collector for dust-free operation; 4kw pure-copper motor
• Buffer storage bin: carbon steel with reinforced frame, sight glass for level check, access ladder, discharge gate with flow control
• Screw elevator: carbon steel auger inside sealed pipe, motor at bottom, adjustable length and angle, smooth feeding without dust
• 300 horizontal mixer: U-type trough, ribbon agitator, reducer drive, 4kw motor, top feed port and bottom discharge; can add water/spray nozzles
• 200 gearbox pellet mill: alloy steel hardened rollers, cast-iron die with 2.5-8 mm holes, gearbox reducer for stable torque, stainless discharge tray with adjustable cutter for pellet length
• Packing: key components wrapped in film, whole line packed in export wooden cases, shock-proof and suitable for sea/long-haul transport"
Factory and more information
Zhengzhou Weiwei Machinery Co., Ltd. is located in Gaocun Industrial Zone, Xingyang, Zhengzhou, Henan, founded in 1980. With a 10,000+ m² plant and 40,000-50,000 sets annual output, the company integrates R&D, design, manufacturing and sales. Certified with ISO9001, CE, SGS and TUV and holding about 19 patents, its dual brands WEIWEI / XINGYIDA serve 40+ countries across Europe, America, Southeast Asia, the Middle East and Africa, with 30+ years in agricultural machinery.
